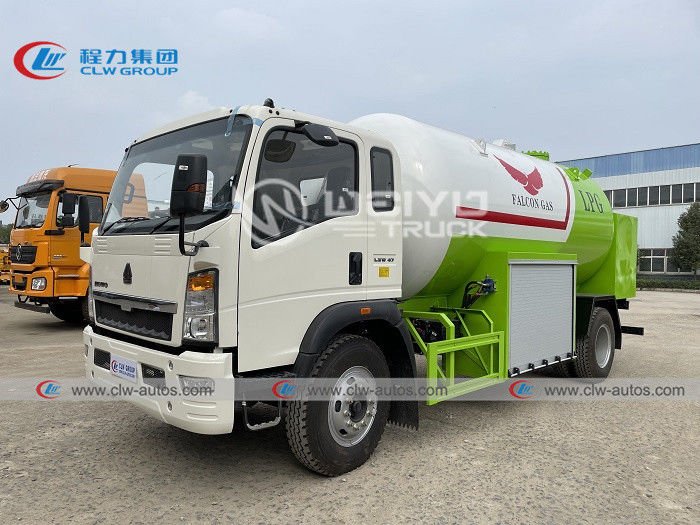

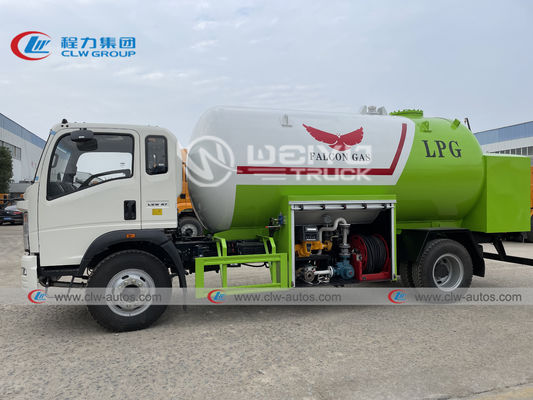

15m3 Right Hand Drive LPG Dispenser Truck LPG Refill Truck For Zambia

Büyük resim : 15m3 Right Hand Drive LPG Dispenser Truck LPG Refill Truck For Zambia

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW1576YTV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Sinotruk HOWO,Dongfeng,Foton,Shacman,JAC,JMC,ISUZU	MOTOR:	Cummins markası
Tank malzemesi:	Q345r veya Q370r	Tank hacmi:	15m3,15000 litre, 15 metreküp
Akış ölçer:	Deplasman Akış ölçer	Dolum Dispenseri:	Tek doldurma nozulu
Pompa markası:	İsteğe bağlı	Boşaltma Vanası:	1", 2", 3" Flanş Tipi
Seviye göstergesi:	Manuel Döndürme, Şamandıra Topu, Rochester, Manyetik kapak	Kullanım:	Silindir dolumu,
Garanti:	Büyük parçalar için bir yıl	Logo ve Boyama:	Özelleştirilmiş
Vurgulamak:	Right Hand Drive LPG Dispenser Truck , 15m3 LPG Dispenser Truck

15m3 Right Hand Drive LPG Dispenser Truck LPG Refill Truck For Zambia

Product Description

LPG bobtail truck capacity: from 5cbm to 37.2cbm
tank meaterial:Q345R Q370R Q420R SA516
tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
Truck Spec of LPG Bobtail Trucks : Cummins diesel Engine 156hp,with ABS,10R22.5 tubless tire

Truck Specifications

Item No.	Parameters
Cabin	HOWO Cabin, 3 passengers allowed, with A/C
Overall Dimension	8195x2370x2550 mm
Driving Model	Right hand driving
Gross Vehicle Weight	13490 kg
Curb Weight	4245kg
Payload	9245 kg
F/R Axle Loading	4350/9140 kg
Wheel Base	4700 mm
Front/rear Tread	1240/2255 mm
Approach/Departure Angle	17/25 degree
Engine	Cummins Brand
Engine horsepower	156 HP
Displacement	3760mL (Diesel type)
Max Driving Speed	95 km/h
Gear Box	6 forward and 1 reverse
Tire	10R22.5 (6 pc with 1 spare)
LPG tank
Volume:	15cbm/15000Liters
Tank material:	Q345R/Q370R
Tank diameter:	1800mm
Tank thickness:	10mm
End plate	12mm
Tank length:	As designed
Gas phase	DN25 or DN50 or customized
Liquid Phase	DN50 or DN80 or customized
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Hydraulic Testing Pressure	2.21Mpa
Working Temperature	-20~50 ºC
Design Code	GB150.1~2011
