China Brand LPG Bobtail Trucks LPG Refilling Truck 24m3 12mt 1.61Mpa

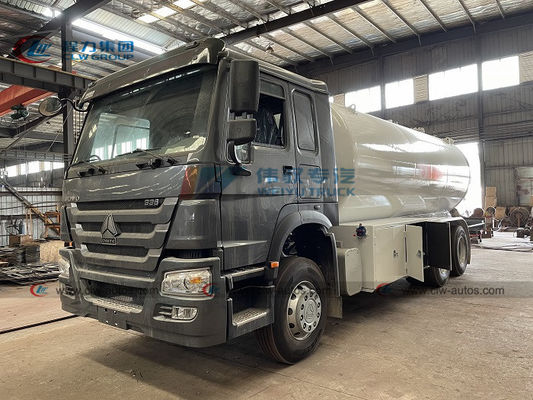

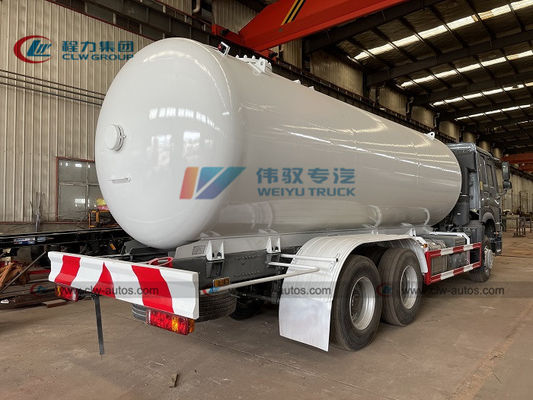

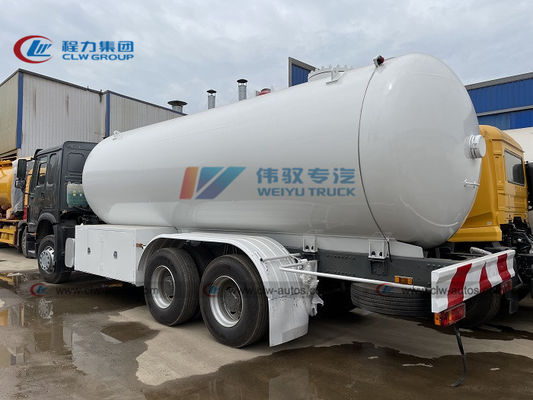

Büyük resim : China Brand LPG Bobtail Trucks LPG Refilling Truck 24m3 12mt 1.61Mpa

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW512H5TS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Malzeme:	İsteğe bağlı Q345R,Q370R,Q420R	Tasarım Standardı:	GB150, ASME VIII Bölüm II
Tank kapasitesi:	12mt,12ton	Tank boyutu:	24 metreküp, 24000 litre, 24000 litre, 24000L
Yorulmak:	11.00-20,11.00R20 16PR,10 adet bir yedek ile	Kalınlık:	12 mm
Seviye göstergesi:	Manuel Rotator veya Rochester floatball	Renk:	Özelleştirilmiş
Vurgulamak:	24m3 LPG Bobtail Trucks , 12mt LPG Bobtail Trucks

China Brand 24m3 12mt 1.61Mpa LPG bobtail trucks LPG Refilling Truck

Product Description

LPG bobtail truck capacity: from 5cbm to 37.2cbm
tank meaterial:Q345R Q370R Q420R SA516
tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
Truck Spec of LPG Bobtail Trucks : D10.34-40type diesel Engine 339hp,12.00-20 16PR,12.00R20 14PR,315/80R22.5

Specifications

Description	Sinotruk Howo 6X4 24m3 LPG Dispenser Truck
Drive Model	6X4
Vehicle Main Dimensions	Dimensions(L x W x H)mm	10895x2496x3230mm
	Wheel base (mm)	5200+1400mm
	Overhang (front/rear) (mm)	1540/2755mm
	Front Axle	7000kg
	Rear Axle	18000kg
	Approach/Departure angle(°)	15/16
Weight in KGS	Curb Weight	8780kg
	GVW.	25000kg
	Payload	16220kg
Max. driving speed(km/h)		101km/h
Engine	Type	D10.34-40,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inner cooling.
	Horse Power(HP)	339HP
	Engine	9726ml(Diesel)
	Emission standard	Euro5
Steering Gear	Power steering, hydraulic steering with power assistance
Tire	11.00-20,11.00R20 16PR , 11 pieces including one spare tire
Cabin	2-3 Passengers allowed, with Air Conditioner
LPG Tank
Volum (m³)	24
Material	Q345R
Thickness	12mm
Diameter	1800mm
End plate	12mm
Tank length	2050mm
Gas phase	DN50
Liquid phase	DN50/DN80
Filling gas	Propane(LPG)
Design Prtessure	1.61Mpa
Accessory
LPG Pump	1 pc
LPG Volume Flow Meter	1pc
Filling hose with filling nozzle	15M
Level Gauge	Manhole rotation type, at the rear of tank
Safety Valve	1, DN50
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Level Gauge	Manual Rotation Type
Emergency Valve	1
Fender	Steel
Fire Extinguisher	2
Exhaust shaft	At the front of truck for safety

Dispenser way

China Brand LPG Bobtail Trucks LPG Refilling Truck 24m3 12mt 1.61Mpa 0

Our Factory

China Brand LPG Bobtail Trucks LPG Refilling Truck 24m3 12mt 1.61Mpa 1

Our advantages

CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
