Dongfeng 4x2 10cbm Swing Arm Container Garbage Trucks Waste Removal Bins Truck

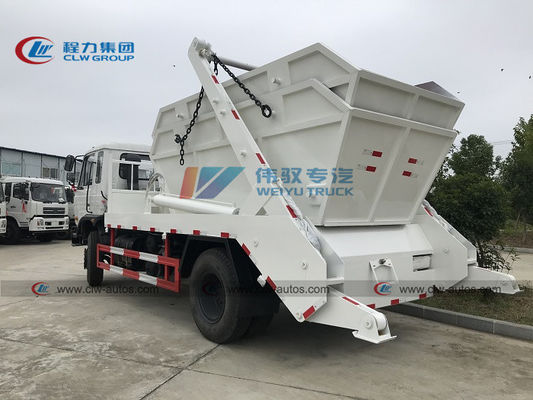

Büyük resim : Dongfeng 4x2 10cbm Swing Arm Container Garbage Trucks Waste Removal Bins Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC ISO
Model numarası:	CLW581ETS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Sürüş Modeli:	LHD&RHD	Şasi markası:	HOWO, Dongfeng, Foton, Shacman,ISUZU Salıncak Kolu Çöp Kamyonu
Yakıt tipi:	Dizel Motor	Malzeme:	Karbon çeliği
Hacim:	8000~10000L,8m3,10m3	Satış sonrası servis sağlandı:	Yurtdışı üçüncü taraf desteği mevcuttur, Çevrimiçi destek, Video teknik desteği, Ücretsiz yedek parç
Kamyon Tipi:	Rulo kollu çöp kamyonu, salıncak kollu çöp kamyonu, Atlamalı Yükleyici Konteyner Çöp Kamyonu	Renk ve Logo:	Özelleştirilmiş
Yükleme kapasitesi:	8ton, 10ton, 9ton, 8t, 9t, 10t	Tekerlek tabanı:	4200
Beygir gücü:	136HP
Vurgulamak:	10cbm Swing Arm Container Garbage Trucks , Dongfeng 4x2 Container Garbage Trucks

Dongfeng 4x2 10cbm Swing Arm Container Garbage Trucks Waste Removal Bins Truck

Product description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

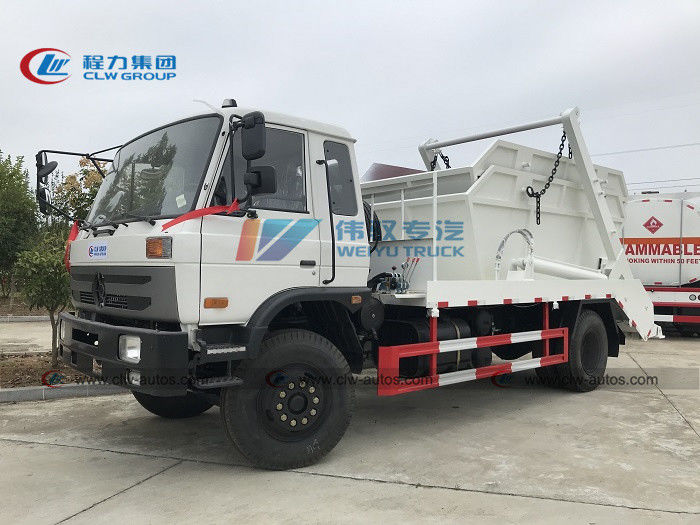

Dongfeng 4x2 10cbm Swing Arm Container Garbage Trucks Waste Removal Bins Truck 0

Chassis parameters
Chassis model			EQ1081GL46DJ4	Chassis brand	Dongfeng
Overall dimensions			6985X2140X2710mm	Wheel base	4200mm
Front/rear wheel track			1750,1586 mm	Front/rear suspension	1250/1535mm
Approach/departure angle			22.5/18.5°	Maximum speed	85km/h
Chassis Manufacturer			YUCAI
Cab	Configuration		single row and a half cab
	Color		Customized
Engine	Model		YC4E135-21
	Emission		Euro 2
	Type		6 cylinders, in-line, turbo inter-cooling
	Rated power		136hp
	Displacement		4257ml
	Manufacturer		YUCAI
Tire	Size		8.25-16,8.25-20
	Number		6+1 nos
Fuel tank	300L iron oil tank
Front axle	HF 4 tons
Rear axle	ST 6 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox HW4257
Steering device	Power assisted steering
Steering wheel	LHD&RHD
Selective configuration		YC4E135-21 136hp

Swing arm garbage truck structure parameters
Garbage container dimensions		4000X2200X1300mm	Garbage container volume	10m3
Garbage container material		Carbon steel	Side wall	3mm
Bottom plate		4mm	Color and Logo	Optional
Standard configuration	Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.
Selective configuration	Garbage container cover.

Our Factory

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty of garbage truck?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
