Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks

Tüm ürünler

LPG Gaz Tankeri Kamyonu (109)

LPG Gaz Depolama Tankı (155)

yakıt dağıtım kamyonu (153)

Çöp sıkıştırıcı kamyonu (172)

Atık kaldırma kamyonları (93)

Yol süpürge kamyonu (66)

vakumlu emme kamyonu (145)

Su Tankeri Kamyonu (102)

Soğutmalı Kasalı Kamyon (91)

LED Billboard Kamyonu (36)

Çöpe çekme aracı (78)

Havalandırma kamyonu (40)

kamyon monte teleskopik vinç (82)

İtfaiye Aracı (67)

Hazır Beton Mikser Kamyonları (24)

Ağır Hizmet Tipi Damperli Kamyon (28)

Tanker Kamyonlar ve Römorklar (174)

Çekici Kamyon (21)

En iyi ürünleri

Dongfeng 4X2 8 10 12 15m3 Swing Arm Skip Loader Garbage Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar

Ben sohbet şimdi

Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks

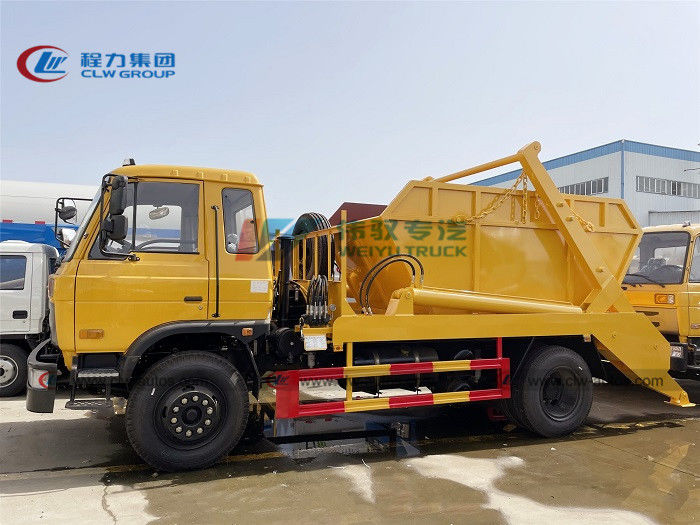

Büyük resim : Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW536YD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket, toplu gemi, ro-ro
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	300 Adet

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	Dongfeng,HOWO,SHACMAN,JAC,JMC,ISUZU,FOTON	Malzeme:	Karbon Çeliği Q235B
Kalınlık:	yan 3 mm, düğme 4 mm	Çöp konteyneri Boyutu:	10cbm,10m3,10000 litre
Beygir gücü:	140hp	MOTOR:	Dizel Motor, Cummins markası
Garanti:	büyük parçalar için bir yıl	Yedek parça:	ihtiyaç duyulduğunda factpry fiyatı
operasyon videosu:	Evet	Canlı operasyon rehberliği:	Evet
Kullanım Kılavuzu:	Evet	Renk ve LOGO:	Özelleştirilmiş logo
Hizmet:	Ömür Boyu Satış Sonrası Hizmet
Vurgulamak:	10m3 Refuse Skip Loader Truck , Euro3 Refuse Skip Loader Truck , 10cbm Rear Load Garbage Trucks

***Euro3 4*2 10cbm/10m3 Skip Loader Refuse Truck Rear Load Garbage Trucks***

Product Description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

Drive type	4*2, New condition, LHD&RHD
Vehicle Main Dimensions	(L x W x H)mm		7060×2140×2350
	Wheel base (mm)		4200
	Track front/rear mm		1110/1750
	F/R Axle-Load		3220/5200 kg,
	Approach/departure angle		18/14
	Curb weight		3015 kg
	GVW		8420kg
Max. driving speed(km/h)			90
Engine	Brand		Yuchai,Brand,Diesel ENGINE
	Model		YC4E140-31
	Type	4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		140
	Emission standard		Euro3
Gearbox	8 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	7.50-16,8.25-16 Nylon tyre, 7 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Upper Body
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	10 CBM
Remarks	1. Color is optional 2. Customized LOGO painting as per customer's request

Truck Diagram

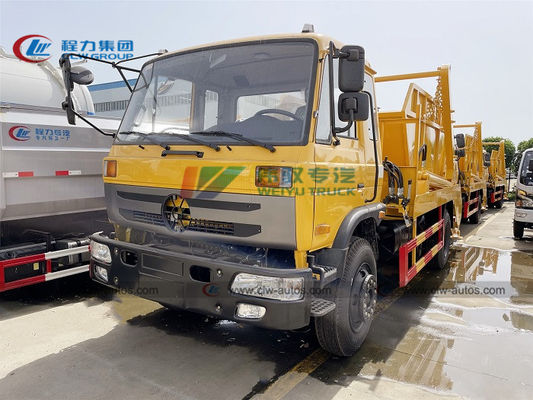

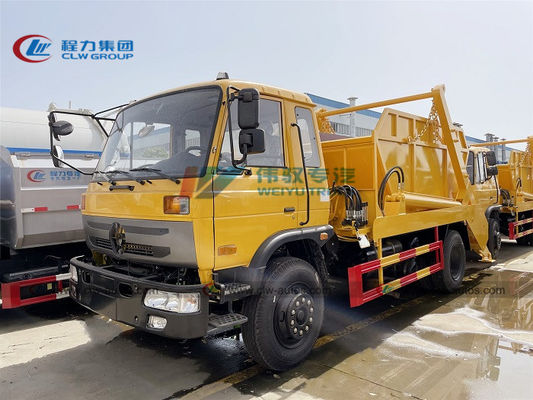

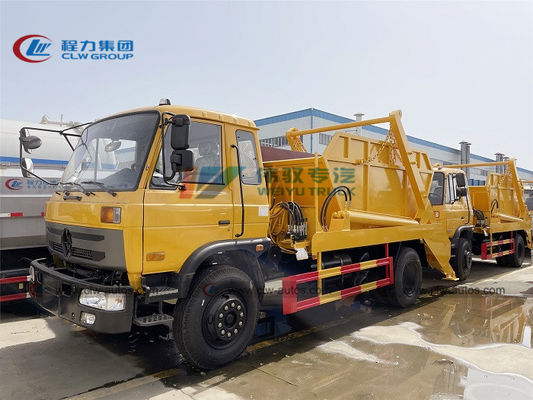

Truck details

Euro3 4*2 10cbm 10m3 Refuse Skip Loader Truck Rear Load Garbage Trucks 1

Our Factory

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty of garbage truck?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
