Dongfeng Swept Body Refuse Collector Swing Arm Garbage Truck 4x2 10cbm

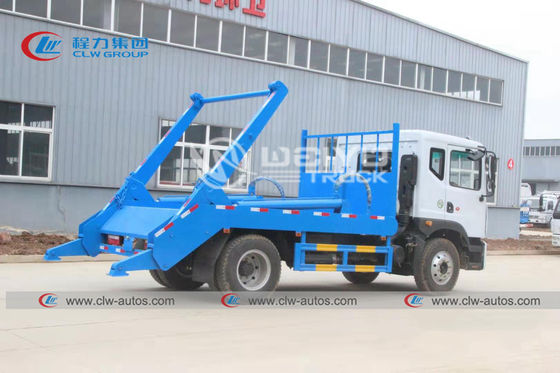

Büyük resim : Dongfeng Swept Body Refuse Collector Swing Arm Garbage Truck 4x2 10cbm

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5101VMC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500Birim/ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Foton, Isuzu, Sinotruk Howo, vb.	Hoper boyutu:	10 m3, Zemin Tipi
Yükleme kapasitesi:	10ton	Topuğunun kalınlığı:	5mm, Karbon Çelik Q235B
Koruyucu Malzeme:	Q235A karbon çeliği	Hazne Miktarı:	Özelleştirilmiş
Çöplük tipi:	Hidrolik silindir kaldırma ve kendi kendine yükleme	Kontrol yolu:	Üç yollu hidrolik kontrol vanası
Renk ve LOGO:	Müşterinin talebine göre	Garanti:	1 yıl
Vurgulamak:	Swing Arm Garbage Truck 10cbm , Swing Arm Garbage Truck 4x2

Dongfeng 4x2 10cbm Swept Body refuse collector Swing Arm Garbage Truck

Product description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

Dongfeng 4X2 Swing-arm Garbage Truck
Cabin	with one sleeper, with two seats, with A/C,70° hydraulically tillable to the front
Vehicle Main Dimensions	(L x W x H)mm	7020x2462x2690
	Wheel base (mm)	3950
	Wheel track (front/rear) (mm)	1900/1800
	Approach/Departure angle(°)	30/18
Weight in KGS	Tare Weight	4550
	Loading Capacity	7950
	Front axles loading capacity	1x4000
	Rear axles loading capacity	1x8550
Max. driving speed(km/h)		90
Engine	Brand	Cummins
	Model	ISBE185 30
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	184 HP
	Emission standard	Euro 3
Gearbox	DC6J65TC, 6 forwards & 1 reverse
Clutch	Push type diaphragm spring clutch, diameter 395 mm
Tire	9.00R20, Steel tire, 7pieces
Garbage System	1. Box Size: 10 CBM matched 2. PTO motivated hydraulic system 3. Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg

Main Structure and Details

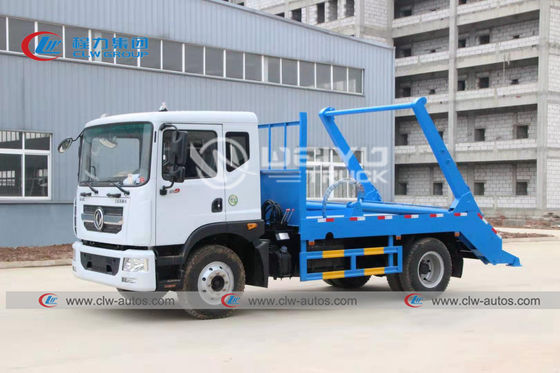

Dongfeng Swept Body Refuse Collector Swing Arm Garbage Truck 4x2 10cbm 0

Main Parts

Factory overview

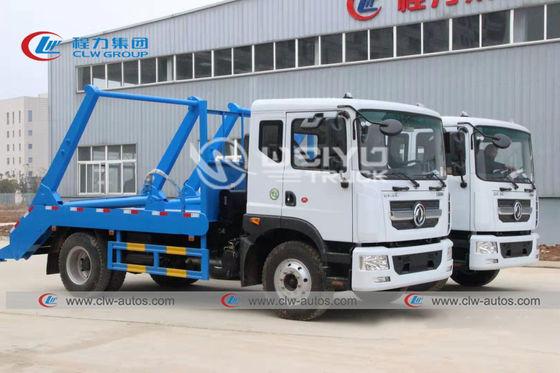

Dongfeng Swept Body Refuse Collector Swing Arm Garbage Truck 4x2 10cbm 2

Dongfeng Swept Body Refuse Collector Swing Arm Garbage Truck 4x2 10cbm 3

Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage Truck?
A: China GB local standard.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
