Mini Dongfeng 5cbm 1320Gallons 4X2 Refueling Truck With Carbon Steel Tank

Büyük resim : Mini Dongfeng 5cbm 1320Gallons 4X2 Refueling Truck With Carbon Steel Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW535EY

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan 15 ~ 20 gün sonra
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng/Howo/JAC/FAW yakıt deposu kamyonu	Sürücü modeli:	4x2, 6x4, 8x4, 64, 42,8*4 yakıt deposu kamyonu
Tank hacmi:	5000 litre, 5000L, 1320 galon yakıt ikmali tankı kamyonu	Yakıt tipi:	Dizel/benzin/yağ/Jet A yakıt deposu kamyonu
Durum:	yeni yakıt deposu kamyonu	Şanzıman tipi:	5 vitesli ileri ve 1 geri yakıt deposu kamyonu
Beygir gücü:	108hp yakıt deposu kamyonu	Tank malzemesi:	Karbon Çelik, Q235 Karbon Çelik/Paslanmaz Çelik, Karbon Çelik/paslanmaz çelik/alüminyum alaşımı, alü
Ürün adı:	Yakıt İkmal Kamyonu, Yağ Yayıcı Kamyon, yakıt dağıtım kamyonu, Yakıt Tankı Kamyonu	Emisyon Standardı:	Euro2 yakıt deposu kamyonu
Dingil açıklığı:	3308mm yakıt deposu kamyonu	Renk ve LOGO:	Özelleştirilmiş
Vurgulamak:	1320 Gallons 4X2 Refueling Truck , Mini Dongfeng 5cbm Refueling Truck

Mini Dongfeng 5cbm 1320Gallons 4X2 Optional Color&Logo Refueling Truck With Carbon Steel Tank

The tank body is one-time molding, safe and pressure-resistant
The whole vehicle has reasonable structure, reliable performance, easy operation and beautiful appearance.
The head adopts hydraulic technology, and the pressure-bearing seal is stronger.
Front disc rear drum brake
Standard oil suction and discharge equipment.

Description	Mini Dongfeng 5cbm 1320Gallons 4X2 Optional Color&Logo Refueling Truck With Carbon Steel Tank
Drive Model	4X2
Chassis	EQ1040T47DJ3AC
Vehicle Main Dimensions	Dimensions(L x W x H)mm	584019352170
	Wheel base (mm)	3308
	Overhang (front/rear) (mm)	1100/1432
	Wheel track (front/rear) (mm)	1580/1486
	Approach/Departure angle(°)	17/14
Weight in KGS	Curb Weight	1900
	GVW.	4300
Max. driving speed(km/h)		99
Engine	Model	CYQD32T
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	108HP
	Emission standard	Euro2
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	120
Tire	6.50R16. 6 pcs+1 spare tire
UPPER
Fact cubage	5
Protective material	Q235 carbon steel
Tank meterial	<5mm> carbon steel

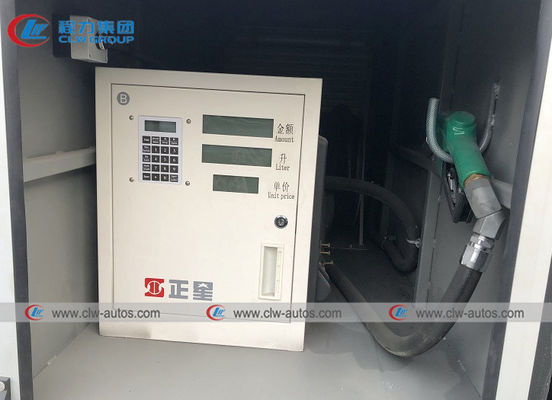

Equipment	1.Equipped with CLW pump .valves and pipes,a set of Fuel Dispenser 2.Equipped with a ladder on tank 3.It can be design to have several compartments According to your requirements 4.Equipped with speed limiter.The speed limit of 80 km/h

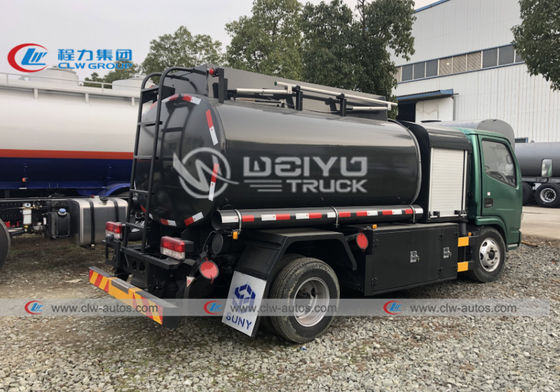

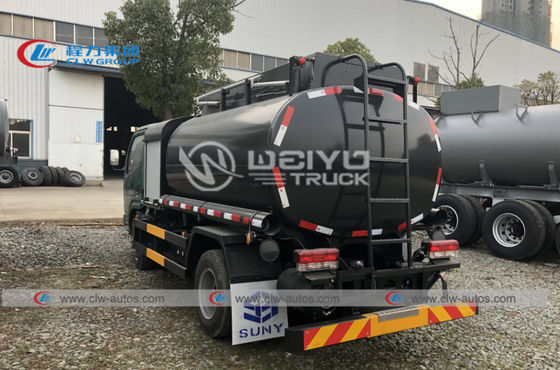

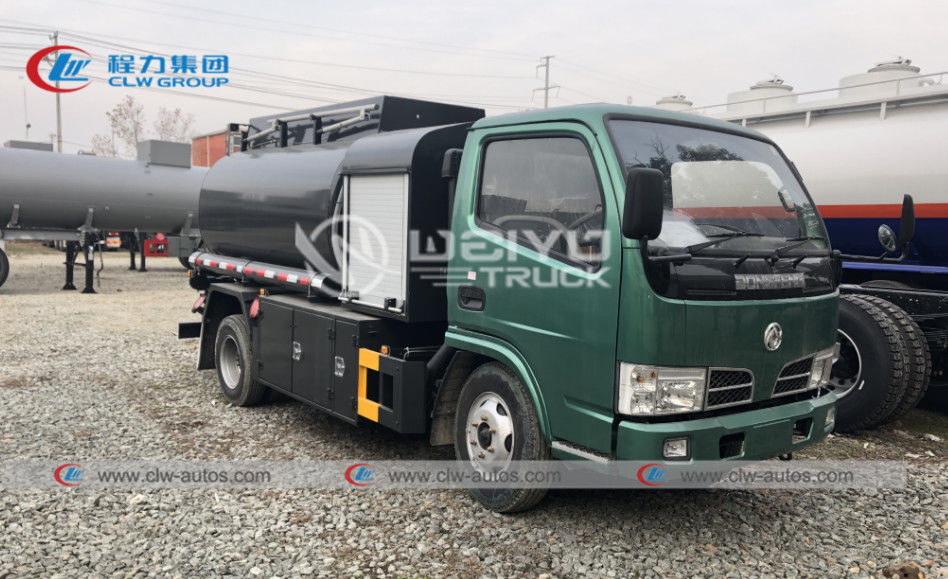

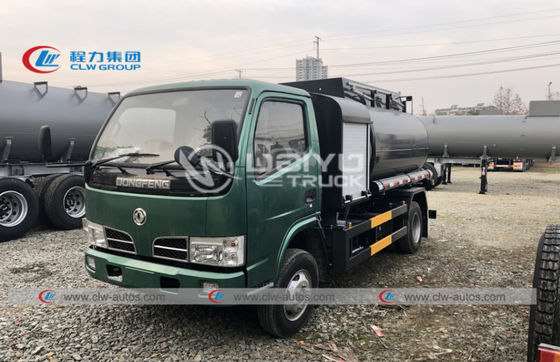

Truck diagram

Mini Dongfeng 5cbm 1320Gallons 4X2 Refueling Truck With Carbon Steel Tank 0

Mini Dongfeng 5cbm 1320Gallons 4X2 Refueling Truck With Carbon Steel Tank 1

FAQ

Q: Can I buy a sample of your product for testing?

A.Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q:Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .

Factory of mobile refueling truck

Mini Dongfeng 5cbm 1320Gallons 4X2 Refueling Truck With Carbon Steel Tank 2
