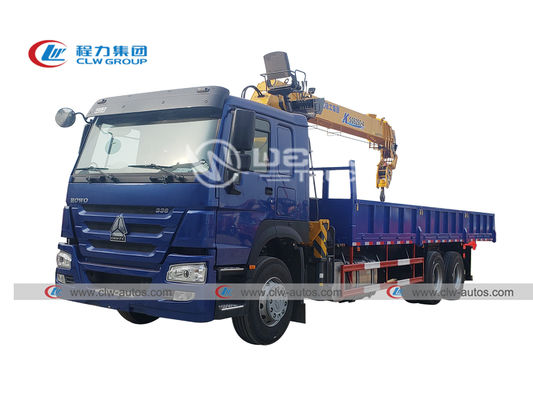

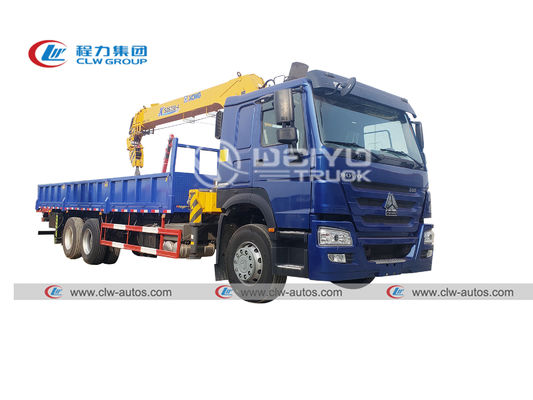

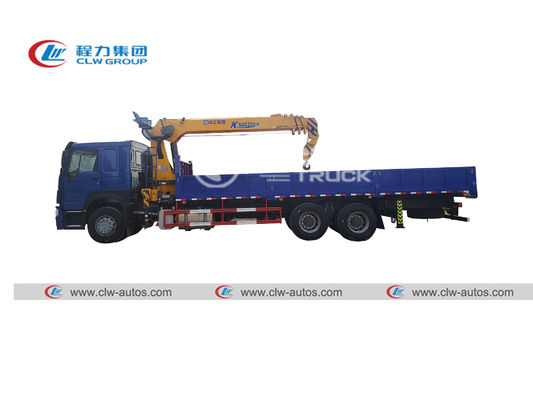

HOWO 336HP Right Hang Driving 6X4 10 Wheeler 10 Tons 360 Degree Rotation Truck Mounted Telescopic Boom Crane Truck
Product descriptions:
1. Crane Brand: Howo 6X4 right hand driving with 336hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 10ton
5. 360° Rotation straight four arms
Product advantages:
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia, Bangladesh
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica, Saint Lucia, Surinam, Trinidad and Tobago
3. Africa: Kenya, Lesotho, Botswana, Mauritius, Seychelles, Mozambique, Namibia
4. South Africa: Uganda, Zambia, Swaziland, Tanzania, Zimbabwe, Somaliland etc.
| Items |
Descriptions |
Parameter |
| General |
Vehicle name |
Howo 6x4 Right hand drive truck mounted telescopic crane |
| Driving type |
6x4 |
| The total mass(kg) |
24500 |
| Curb weight(kg) |
11270 |
| Overall dimensions (mm) |
10750x2550x3650 |
| Cargo box size(mm) |
7200x2450x600 |
| Engine |
Fuel type |
Diesel |
| Engine type |
WD615.69 |
| Engine power(kw/hp) |
336 |
| Displacement(ml) |
5900 |
| Emission standard |
Euro 2 |
| Chassis |
Chassis model |
ZZ1257N4341W |
| Steering wheel |
Right hand drive |
| Axle |
3 |
| Front/rear axle load(kg) |
9000/16000*2 |
| Top speed(km/h) |
85 |
| Wheelbase (mm) |
4325+1350 |
| Gear box |
10 Foward,2reverse,manual type |
| suspension |
8+8/300 |
| Approach/departure angle |
29/12 |
|
Crane
|
Crane Brand |
Optional |
| Crane type |
Straight four arms |
| Max Lift weight |
10Tons |
| Max lifting moment |
30T.m |
| Rotation angel |
360° |
| Crane weight |
4000kg |
| Installation space |
1300mm |
Products Show
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
