Tanzania Transport LPG Semi Trailer 25t 50cbm 50cubic 50m3 50000 Liters 25mt

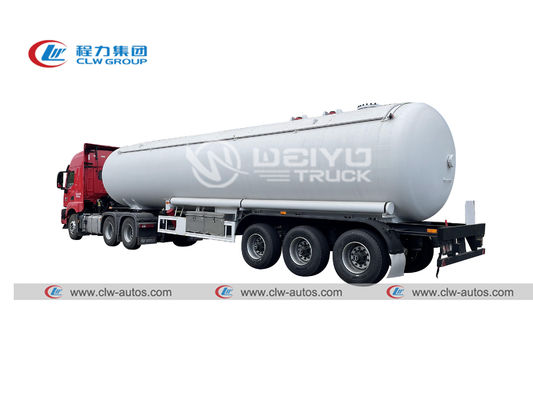

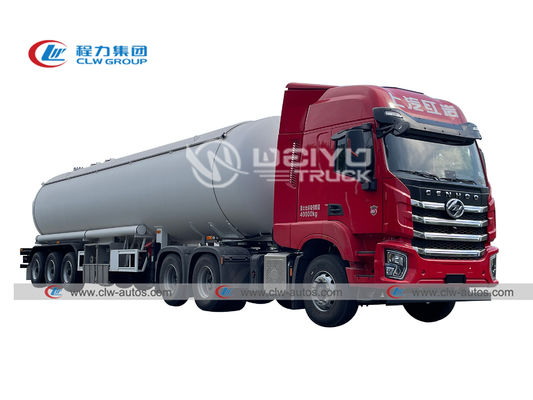

Büyük resim : Tanzania Transport LPG Semi Trailer 25t 50cbm 50cubic 50m3 50000 Liters 25mt

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW525O4RE

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Mevduat aldıktan sonra 30 iş günü
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Malzeme:	Q345R,Q370R,Q420R	Standart:	GB150-2011, GB/T19905-2005, ASME VIII Bölüm II
Tank kapasitesi:	25MT,25Ton,25t	Tank boyutu:	50000 litre, 50 metreküp, 50m3, 5000L
Aks markası:	BPW,FUWA,YORK,HJ	Kalınlık:	Tank kabuğu için 14 mm ve uç plaka için 16 mm
Tasarım baskısı:	1,61mpa,16,1bar	Genel boyut:	12700248038000mm
Yorulmak:	12R22.5,315R22.5,295R22.5
Vurgulamak:	LPG Semi Trailer 25t , 25mt LPG Semi Trailer

Product advantages:
* ASME standard available
* 100% new condition by manufacturer direct sale
* 100% quality guaranteed

Product Description:
1) The LPG tanker semi trailer material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
2) LPG tanker semi trailer are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
3) LPG Transport Tanker Trailer is used for transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
4) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
5) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose

Features:
1. Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2. Suspension: German design heavy mechanical suspension or air bag.
3. LPG tanker: Heavy duty loading capacity, 40500 liters, 49600 liters, 56000L, 59600L.
4. Safety control system:Safety Valve, Pressure Meter, Cut-off Valve and etc.

Product parameters:

Dimension
Tare Weight	15300 KG
Pay Load	20832 KG
Overall size	1274024803800mm

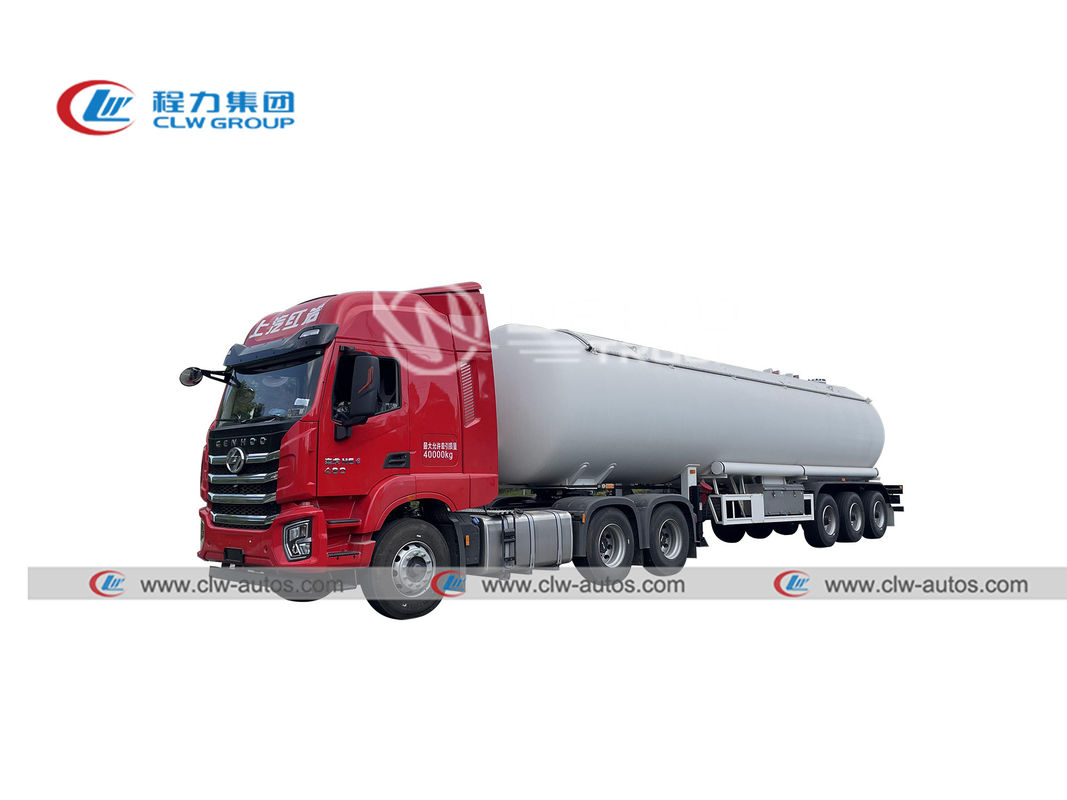

Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media	Dimethylmethane, Liquid Ammonia, Liquid SO2, Propane, Butane
Shape	Round Shape
Total Volume ( m3 )	49.6CBM
Tanker Body Steel Sheet	Q235A/14mm
End plate	Q235A14mm, by punching
Parts for Tank
Manhole cover	3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve	2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank	4"seamless steel tube/Q235
Labeling system	Oil Type Indication
Anti-static electricity system	pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder	1 unit at front of Tank
Guard on top of Tank	Zinc galvanized -guard-net
Oil hose box	Circular single hole tube, 1 unit on each side
Oil hose	2 unit, 3" x 6m size in black rubber
Side guard	cross bar-structure
Rear button guard	Fixed type
Work tank deck	Box type
Fire extinguisher box	2 unit at the back of each side
Mud guard	Steel structure in trapezoid form
Lights and wire	24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle	3 axles
Axle	Optional BPW brand FUWA brand
Landing Gear	JOST Two-speed, manual operating, heavy duty landing gear
King Pin	JOST 2"standard bolt-in king pin
Suspension	German design mechanical suspension
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim	8.25R22.5 wheel rim
Tire	11R22.5 tubeless tire with one spare tire
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
