Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck

Büyük resim : Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,SGS,BV
Model numarası:	CLW304DEI

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	20-30 gün
Ödeme koşulları:	T/T, L/C, Western Union
Yetenek temini:	Aylık 600Birim

İletişim

Detaylı ürün tanımı

marka:	ISUZU,FOTON,JMC,HOWO,Dongfeng,JAC,SHACMAN,CAMC	Yolcu:	2~3 Kişi
MOTOR:	Dongfeng Markası	ön bacak:	H şekli
Arka bacak:	H tipi	Yükseklik:	32M, 32 metre
Kova kapasitesi:	200kg	Bom türü:	beş bölümlü teleskopik kol
Teslim süresi:	30 Gün	Garanti:	1 yıl
Logo:	Müşterinin talebine göre	Kullanım Kılavuzu:	Evet
operasyon videosu:	Evet	Kamyon amacı:	Sokak lambası tamiri, kiraz toplayıcı, tabela temizleme/ayarlama, ağaçların peyzajı
Vurgulamak:	32M Telescopic Boom Hydraulic Platform Truck , Dongfeng Bucket Hydraulic Platform Truck

Dongfeng 32M Telescopic Boom Bucket Hydraulic Lifting Platform Truck Aerial Boom Lift Bucket Cherry Picker Truck

Application range:
1. maintenance of traffic lights, street lights,
2. landscaping trees
3. cleaning/setting signboard,
5. cherry picking and other high aerial works.

Product Descriptions:

1. Dongfeng chassis with 190HP diesel engine
2. Working height is up to 32 meters
3. Bucket dimension is 1080X610X1100mm
4. Working platform can 360 degree rotation.
5. Double H outriggers can adapt different road condition and increasing the stability.

Product advantages:
1. Double H outriggers with good stability which can adapt to various working conditions.
2. It is equipped with hydraulic and electrical components: proportional valve, balance valve, controller which are all imported.
3. The outrigger operation box is equipped with lights, which is convenient for working at night,
4. It install to spirit level to ensure the truck's safety.
5. The working platform adopts 360 degree rotation,
6. The hanging basket is made of high-strength aluminum alloy, which is flexible during working.
7. It use computer control,and equip with dangerous work alarm in order to excellent safety performance.
8. Its expansion and contraction at the same time that can improve working efficiency and working range.

Product parameters:

Parameter	Overall dimension (Lengthwidthhigh)	(mm)	8790*2500x28400
	Total Mass	(kg)	16000
	Kerb Mass	(kg)	5000
	Wheel base	(mm)	5000
	Approach/rear angle	(°)	20/12
	Max speed	(km/h)	90
	Fuel type		diesel
Engine	Displacement standard		EURO 3
Chassis	Chassis type		Dongfeng
	Drive system		4x2
	Tire type		10.00R20
	Number of tire		6
	passengers		3
	Cabin		one and half row cabin
Special parameter	Working platform rating loading	(kg)	200
	Max operation height	(m)	32
	Max working radius	(m)	14.8
	Rotation speed	(r/min)	0.15~0.20m/s
	Max hoisting height	(m)	8
	Rated hoisting capacity	(kg)	1000-2000
	Max rotation angle	(°)	360

Reference photos

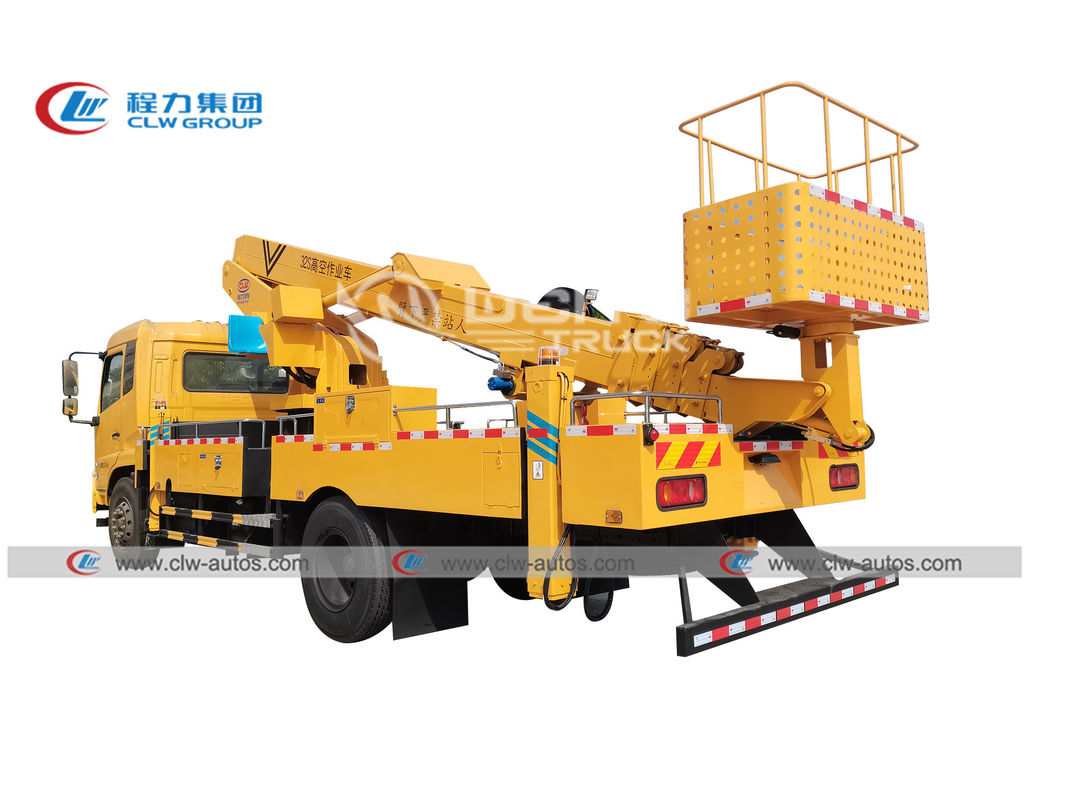

Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck 0

Aerial working platform Truck Working Show

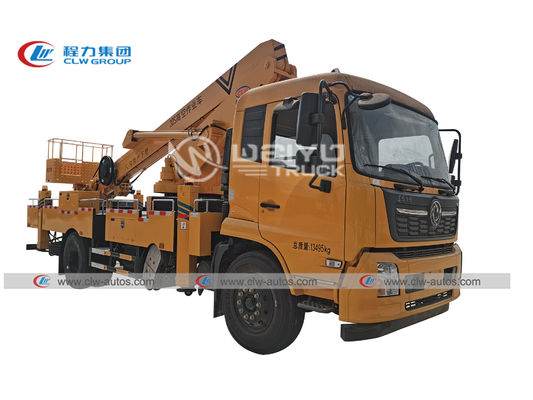

Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck 1

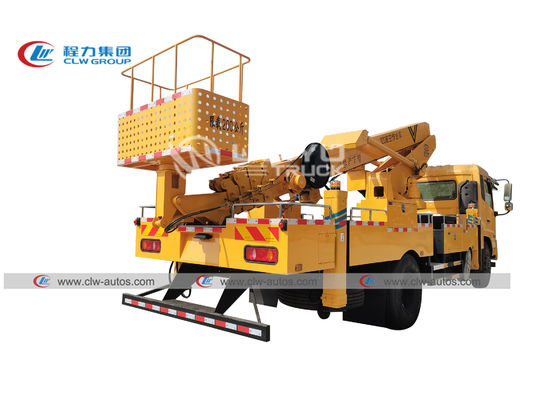

Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck 2
