Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Büyük resim : Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW57DUE

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çeliği, kalınlık: 4mm	Ürün adı:	Çöp Geri Dönüşüm Kamyonu, Kanca Kolu kaldırma çöp kamyonu
Sürücü tipi:	6*4 10Tekerlek	Sürücü modeli:	LHD
Kapasite:	20m3,20cbm	Kamyon markası:	Sinotruk HOWO, Isuzu, Dongfeng, shacman, FAW, FOTON, jac
Sıkıştırma türü:	Atık toplama kamyonu, Çöp toplama kamyonu	Diğer ekipman:	hidrolik sistemli, Kaldırma Kolu
İşlev:	Yuvarlanma türü	Kontrol Sistemi:	Çoklu Valf, Uzaktan kumanda ve Manuel Çalıştırma
Yükleme&Boşaltma:	Hidrolik Yağ Silindiri	Teçhizat:	Mobil Çöp Sıkıştırma İstasyonu veya Çöp Kovaları ile
Renk ve LOGO:	Özelleştirilmiş
Vurgulamak:	20m3 Hook Lift Waste Collection Truck , Isuzu 20cbm Waste Collection Truck

Isuzu 20cbm 20m3 Hook Lift Portable Waste Collection Truck Hooklift Roll-Off Truck

Product description:

1. One truck can be matched with many rubbish bins. Which can improve the transportation capacity of the vehicle, saving energy and cost.

2. Adopt full hydraulic control operation system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stable, high efficiency, good sealing performance, convenient dumping and other advantages.

3. The dustbin is made of high quality wisco material.

4. The rear for mechanical locking device, the back door with sealing strip to prevent dirt, dust, debris caused by scattered.

5. You can select 2-4 rollers below the dustbin to facilitate movement and reduce the working pressure of the hook arm.

6. Sleeve joint, high pressure hose and high pressure steel pipe are installed reasonably,which ensure that there is no leakage for a long time, so as to be reliable, convenient maintenance and prolong the service life.

Product paremeters:

Wheel Base	4350+1350 mm
Front Axle	7000kg
Rear Axle	18000kg
Engine	Isu zu Diesel engine 6HK1-TCSG40
Engine horsepower	280HP EURO4
Displacement	7780 mL (Diesel)
Rated Rotation Speed	2400 rpm
Engine type	Six cylinder in-line vertical, super charge inner cooling, Four-stroke, water-cooled, direct injection,
Gearbox	Manuel type Fast 9JS119TA, 9-speed forward and 1 reverse
Cabin	spacious cabin, Left hand drive; One row and a half, 2 Passenger allowed, with A/C
Tire	1100R20 (10 pcs with one spare)
Exhaust Pipe	At front of Cabin for safety
Fuel box	Aluminum alloy, 400L
Garbage Truck Body
Tanker body material	Quality high tensile Q345 carbon steel
Shape	rectangular box, arc-shaped rear
Thickness	Side 4mm, Bottom 5mm
Garbage Dimension	560023001500mm
Standard Configuration	With one garbage bin, with hydraulic rear outrigger
Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder 2. Swing Arm, Chain. 3. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.
Cycle times	Less than 40s

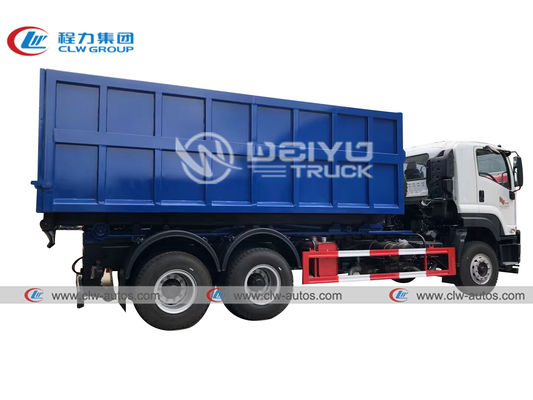

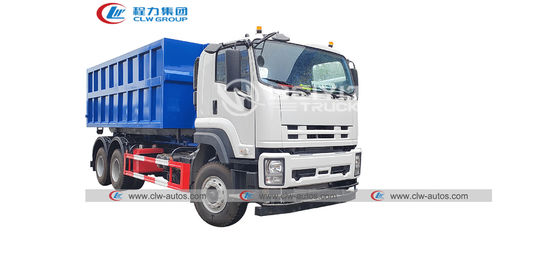

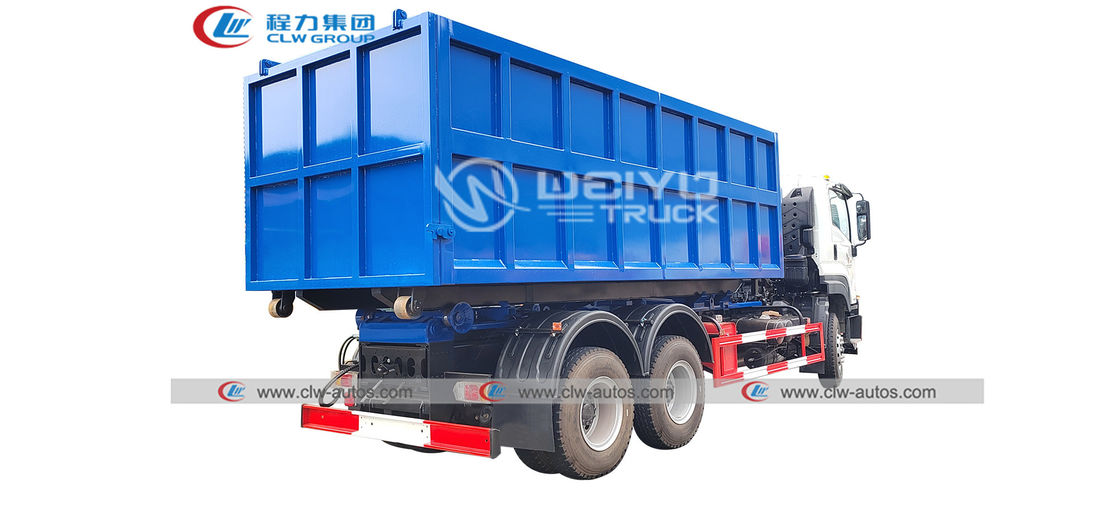

Reference pictures

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck 0

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck 1

Our Factory

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck 2

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck 3

Why choose us:

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time
