6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

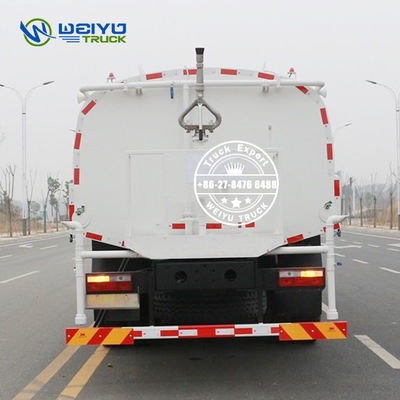

Büyük resim : 6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO
Model numarası:	CLW5941

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	USD24925-31852
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Malzeme:	Q235 karbon çeliği	Kalınlık:	5 mm
Yakıt:	Dizel	Sürüş tipi:	6x4, sol/sağ sürüş
Pompa:	Çin Ünlü Marka / Uluslararası marka	Emme yüksekliği:	7 Metre
Su Canon Aralığı:	30 metre	Yağmurlama genişliği:	14 metre
İşletim Videoları:	Evet	Kılavuzu Kullan:	Evet
Ön sprey ve arka sprey:	Evet	Garanti:	Bir yıl
Logo:	Müşterinin talebine göre
Vurgulamak:	6x4 Mobile Water Tank Transportation Truck , 20tons Water Sprinkler Truck

6x4 Driving Type Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck

Product specification:

1. Optional chassis brand of portable water truck: Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.

Product Features:

1. The water tank truck adopts chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. Equipped with the functions of adjust sprinkler to change sprinkling directions and angles to adapt different demands. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
3. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler, and the top duckbill nozzles can irrigate the flowers and trees on both sides.
4. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
5. With intelligent control system, drivers can complete various operations in the cab.

Tank body features:

The structure of the tank body of the sprinkler is oval or square.
Made of high-quality carbon steel from Wuhan Baosteel
Use a large rolling machine to form at one time,
Automatic welding process, more beautiful appearance and strong sealing performance.
The tank body of the whole vehicle has 2-3 chambers, and there are through holes at the lower end of the middle partition plate.
The tank is equipped with anti-swing and wave-proof baffles, and the baffles in the warehouse have anti-wave effect to reduce the impact of the liquid in the tank when the car is running.
The exterior is coated with anti-rust paint and decorative paint.

Product specifications

Items	Descriptions	Specifications and Types
General	Truck Name	20000L Water Bowser Truck
	Drive Type	6*4
	Gross Weight(kg)	25000
	Curb Weight (kg)	10805
	Approx.Overall Dimensions (mm)	9980×2500×3350
Engine	Engine Model	ISDe245 40
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	180kw/245HP
	Emission Standard	Euro V
	Displacement(ml)	6700
	Engine Type	6 cylinders in line, inter cooler, supercharged diesel engine
Chassis	Chassis Brand	Dongfeng
	Chassis Model	JK6
	Cabin	One row with single sleeper, titled, flat roof, with A/C
	Tire No.	10+1
	Tire Specification	11.00R20 All Steel tire
	Axle No.	3
	Steering Wheel	Left hand drive with power-assisted
	Gear Box	FAST 8 speed forward with 1 reverse, manual
	Brake	Air brake
Tank	Tank Volume(L)	20,000
	Tank Shape	Rectangular
	Tank Material	Carbon Steel, 5mm thick
Performance	Spraying Width(m)	14
	Canon Range(m)	28
Equipment	1.Front flushing , side spraying, rear sprinkling nozzle and platform with water cannon and water gun. 2.The water cannon can be rotated 360 degree. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist. 3.Water suction depth is about 7m.

1. Reference photos

6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck 0

Water Truck Diagram

Working Show

Truck Details

Water bowser truck production line

6x4 Mobile Water Tank Transportation Truck 20000L 20tons Water Sprinkler Truck 6

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
