24cbm LPG Bobtail Truck Propane Dispenser Delivery Truck

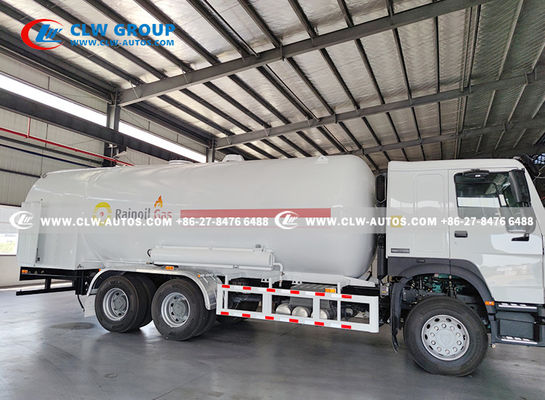

Büyük resim : 24cbm LPG Bobtail Truck Propane Dispenser Delivery Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW5120WY

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	30-35 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 birim/ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Sinotruk HOWO, Dongfeng, FAW, Foton, Isuzu vb.	Motor gücü:	336HP
Tank Şekli:	Yatay Silindir Şekli	Tank kapasitesi:	24CBM
Tank Yükleme Kapasitesi:	12ton	Tanker malzemesi:	Q345r, Q370r, Q420r, SA516
Depo Kalınlığı:	12 mm	Tasarım baskısı:	1,61Mpa, 16,1 Bar /PSI
Üretim standardı:	PTO'lu Hidrolik Pompa	Seviye ölçüm cihazı:	REGO Rochester veya diğerleri
Akış ölçer:	Deplasman Akış ölçer	Korozyon ödeneği:	1.0mm
Logo ve Desen:	Müşterinin isteği olarak	Garanti:	1 yıl
Vurgulamak:	24cbm Horizontal LPG Bobtail Truck , 336HP LPG Bobtail Truck , ASME Propane Dispenser Delivery Truck

24cbm LPG Bobtail Truck Propane Dispenser Delivery Truck

1. LPG tank truck is a pressure vessel vehicle that combined with the chassis, 100% X-ray radiographic tested tanker, safe valve, emergency cutting valve, themometer, liquid level meter, pressure gauge, gas dispenser and gas pump, which used for transporting or filling the gas to different gas station.The cubage could be from 5cbm to 37cbm.

2.ASME and ISO manufacture standard are both available.

Description:

1. Chassis brand: Dongfeng, Howo, Foton, I-suzu, etc.
2. Tank volume available: 5000 liters, 5500 liters, 8000 liters , 10000 liters, 12cbm, 15cbm , 18cbm, 20cbm, 30cbm,etc
3. Material of the lpg tank: Q345R, Q370R, ASME material SA516, SA612
4. Refill system: lpg pump+ flow meter+ fiillin pipe +filling gun / lpg pump+ lpg dispenser+filling pipe+filling gun
5. Application: Fill gas for small lpg skid station or lpg cylinders

Product Specification:

Item No.	Parameters
Overall Dimension	10590* 2495* 3350mm
Gross Vehicle Weight	25000kg
Curb Weight	11120kg
Wheel Base	4325+1350mm
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner
Engine	WD615.62 Diesel Engine, 6 Cylinder in line. Four Stroke.water-cooling,supercharged and mid-cooling,Direct injectio
Engine horsepower	336HP Euro II
Max Driving Speed	90 km/h
Gear Box	10 Forward Gear & 2 Reverse Gear
Tire	12R22.5 Tubeless Tire (10 pieces with one spare)
Tank Capacity	24 CBM / 24,000 Liters
Filling Weight	10000kg
Filling Content	Liquefied Petroleum Gas (Propane)
Tank Material	Q345R, 10mm Thickness for Tank Body & End plate.
Standard Equipment	1 Safety Valves,1 Ball floating Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes,
Specification	Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm
Filling System	Hydraulic Drive 2" Truck Pump. Liquid Control Flow Meter to Record Filling Volume LPG Filling Hose for Cylinder

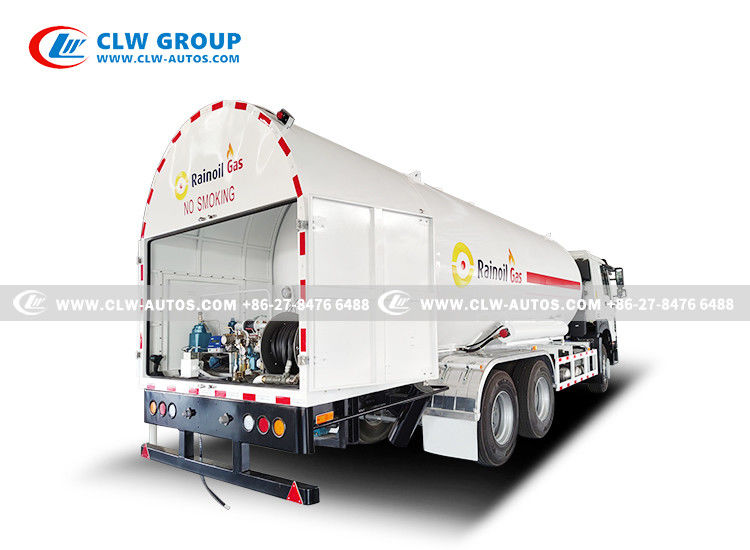

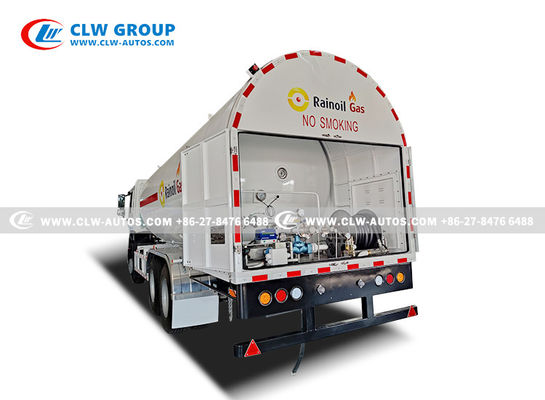

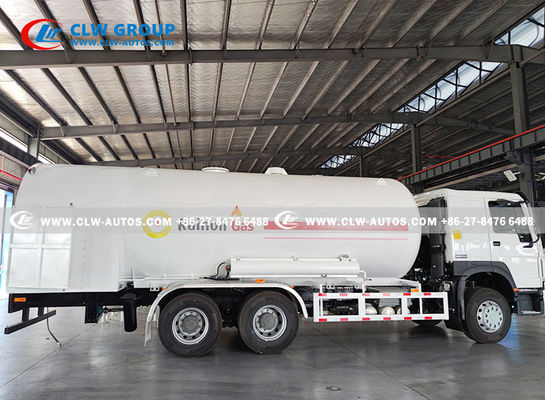

Reference Photos

Two Types of Dispenser for Optional:

Related Products:

24cbm LPG Bobtail Truck Propane Dispenser Delivery Truck 3

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.

FAQ

Q1: What kinds of LPG bobtail truck I can order from your company?

A: We can supply different sizes LPG bobtail truck as client's request. Basically speaking, we can supply 5CBM to 38CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of LPG bobtail truck?
A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011

Q3: Can we adopts International brand parts or accessories for LPG bobtail truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
