Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck

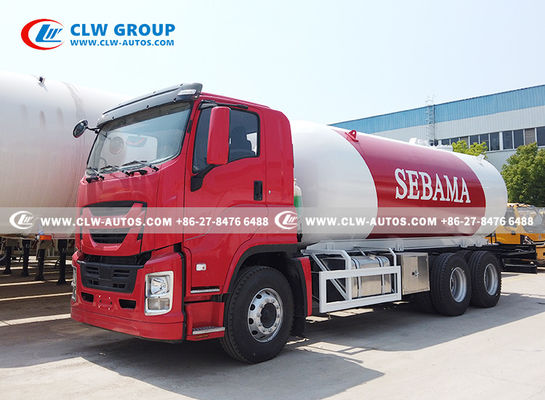

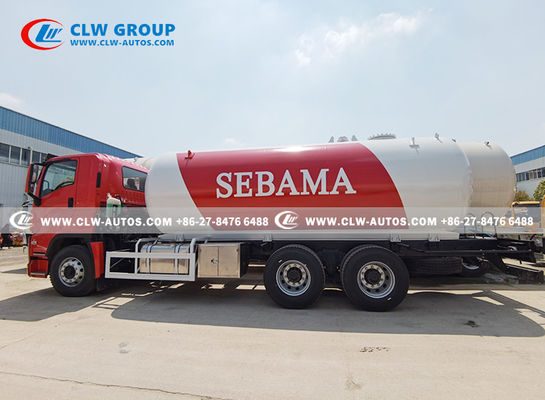

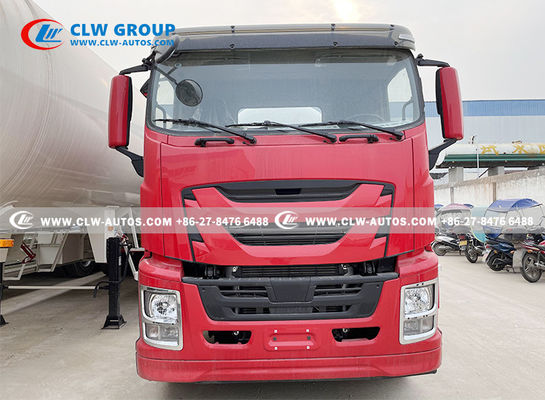

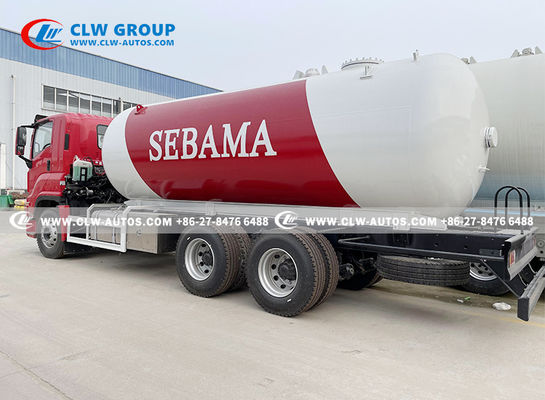

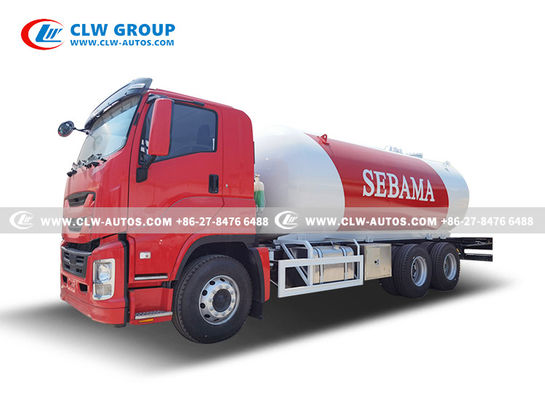

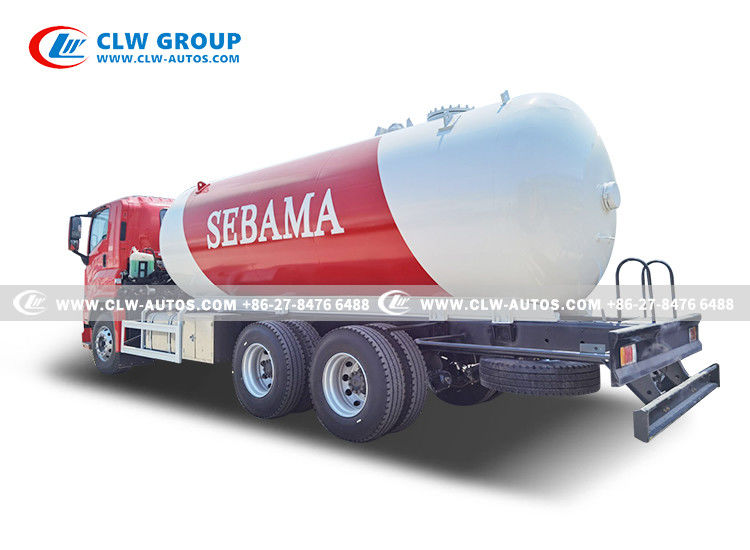

Büyük resim : Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,BV,SGS
Model numarası:	CLW5077GYQ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, FOTON, NASIL,JAC,JMC,SHACMAN	Tank kapasitesi:	10ton, 10t, 10mt
Tank hacmi:	20,000Litre, 20000L,20m3	Akış ölçer:	Deplasman Akış ölçer
Pompa:	PTO'lu Hidrolik Pompa	Dolum Kafası:	Rego Markası
Boşaltma Vanası:	1", 2", 3" Flanş Tipi	Garanti:	Bir yıl
Logo:	Müşterinin isteği olarak
Vurgulamak:	LPG Cylinder Filling Delivery Truck , 20m3 Mobile Filling Delivery Truck , Isuzu Giga Filling Bobtail Truck

Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Tuck
1. Truck Chassis Specification:

a. I-suzu Chassis, Left Hand Drive.

b. 380 HP Diesel Engine, Euro 5.

c. GearBox: ZF8 speed gearbox

2. Tanker Main Specification:

a. Tank Size: 20000Liters, 20 cubic meters, Loading Capacity: 10tons.

b. Tank Material: Q345R for pressure, Q370R material for optional.

c. Tank thickness: 12mm. End Plate thickness: 12mm.

d. Liquid Phase & Vapor/Gas Phase

e. Float ball or Rotor tyoe level gauge, With Thermometer, pressure gauges.

f. Filling System: With Chinese brand pump, or Corken Brand Pump. Flow meters, 30 meters to 45 meters length filling hose.

With Dispenser to fill different size gas cylinders.

Specification:

Item No.	Parameters
Overall Dimension	9510X2470x3450 mm
Driving Model	Left hand drive or right hand drive
Gross Vehicle Weight	35000 kg
Curb Weight	9700 kg
Payload	20,000 kg
F/R Axle Loading	7500/2*13,000 kg
Wheel Base	4600+1370 mm
Front/rear Tread	1886/1845 mm
Approach/Departure Angle	27/20 degree
Engine	6UZ1-TCG61 diesel engine
Engine horsepower	380 HP Euro 5
Displacement	7255mL (Diesel)
Max Driving Speed	90 km/h
Cabin	2~3 Passenger allowed,with A/C
Tire	12R22.5 (10 pc with 1 spare)
LPG tank
Volume:	20cbm
Tank material:	Q345R
Tank diameter:	1800mm
Tank thickness:	12mm
End plate	12mm
Tank length:	As designed
Gas phase	DN50
Liquid Phase	DN50 or DN80 for option
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Level Gauge	Manual rotation type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher holder	2
Exhaust shaft	At the front of truck for safety
