Description:
Tank capacity: 5000 Liters , 10,000 liters, 15,000 Liters, 20,000 Liters, 25,000 Liters, 27,000 Liters, 30000 Liters, 35000 Liters, 50,000 liters, 80,000 liters, 100,000 liters,120,000 liters,150,000 liters,200,000 liters.
The liquefied petroleum gas storage tank (LPG Tank) is a pressure vessel for storing liquefied petroleum gas, and is mainly used in lpg gas storage stations and chemical enterprises.
- Installation method: above ground and underground
- Maximum allowable working pressure: 1.82MPa
- Model specifications: 5m3 ~ 200m3
- OEM available
- Quality Assurance
- Intelligent production mode
- Leading the industry
- Fast delivery
- Every detail is strictly checked
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6. Maintenance-free operation with simple calibration and proof testing.
7. 20 years guarantee against manufacturing defects.

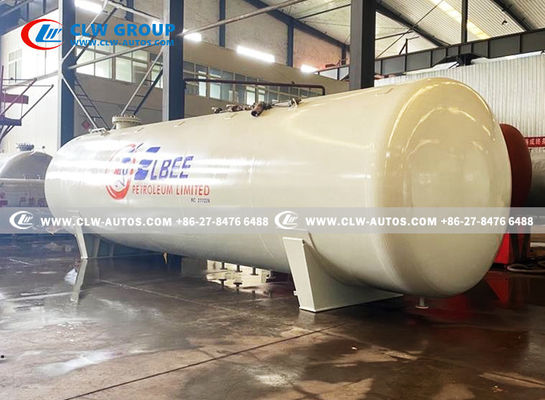

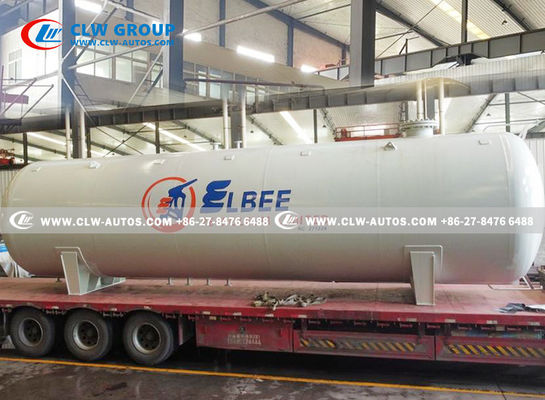

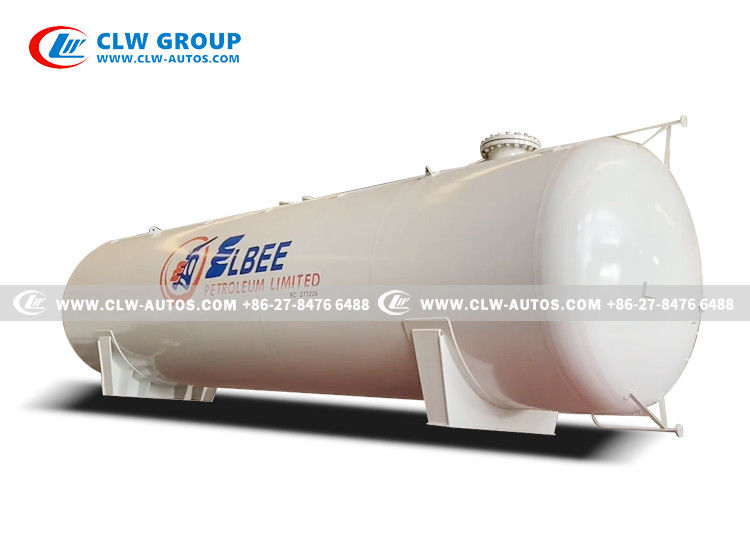

| Parameter of 60000liters 30tons filling station gas tank |
| ITEM |
PARAMETER |
ITEM |
PARAMETER |
| Volume |
60cbm |
Thickness of Shell |
14mm |
| Tank Material |
Q345R |
Thickness of End plate |
16mm |
| Overall Size |
10962*2728*3318 mm |
Tank Net Weight |
12750kg |
| Tank Diameter |
2700mm |
Loading Capacity |
23940kg |
| Design Pressure |
1.71Mpa |
Gas Density |
420kg/M3 |
| Hydraulic Test Pressure |
2.21Mpa |
Corrosion Allowance |
1mm |
| Design Temperature |
-20ºC~60ºC |
Heat Treatment |
Bulk |
| Vapor Outlet |
DN50 |
Gas Outlet |
DN50 |
| Life time |
15 years |
|
|
| Accessories |
| Model |
Item |
Qty |
Junction surface |
| J41N-2.5-50 |
Stop Valve DN50 |
6 |
RF |
| J41N-2.5-25 |
Stop Valve DN25 |
2 |
RF |
| J41N-2.5-100 |
Stop Valve DN100 |
1 |
RF |
| J24W-320-DN6 |
J24W Needle Valve M20*1.5 |
1 |
|
| HG21584-95 |
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 |
1 |
RF |
| A42F-25-100 |
Safety Valve DN100 |
1 |
RF |
| Y-100T |
Pressure Gauge M20*1.5 1.5degree 0~4Mpa |
1 |
|
| WTQ-280 |
Thermometer M33*2 2.5 degree |
1 |
-40ºC~60ºC |
LPG filling station design:
Key words: 30tons LPG storage tank, LPG Tank,Cooking gas plant
Our advantage
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time
