Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree

Büyük resim : Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,SGS,BV
Model numarası:	CLW20220FDEIUF

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	Foton Auman	Yük:	8ton, 8ton, 8t, 8mt
Beygir gücü:	150-250hp	Durum:	YENİ
Söndürücü Ajanlar:	Su, Köpük	Anahtar parçalar:	Pompa, Yangın Tabancası, Yüksek Basınç Pompası
Aksesuarlar:	Müşterinin İsteğine Göre	Kullanım:	İtfaiye Aracı, Acil Kurtarma
Yangın Monitörünün Akış Hızı:	60L/S 1.0MPa	Su pompası:	Çin veya Uluslararası marka
Malzeme:	Karbon Çelik/Paslanmaz Çelik	Yangın söndürme pompası:	Çin veya Uluslararası marka
Yangınla Mücadele Mongesi:	Çin veya Uluslararası marka	Atış Aralığı:	Su 55m, Köpük 50m
Logo:	Müşterinin İsteğine Göre	Kullanım Kılavuzu:	Evet
Taşıma Paketi:	Toplu Gemi, RO-RO	Şartname:	8110x2540x3600mm
Vurgulamak:	Fire Pumper Truck 8tons , Foton Auman Fire Rescue Truck , 360Degree Rotation Fire Pumper Truck

Foton Auman 8tons 360 Degree Rotation Fire Recuse Fire Pumper Truck

Equipment come with fire trucksChassis configuration:

1. 8110×2540×3600mm overall dimensions
2. Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window
3. YC6A240-33 240hp yuchai diesel engine
4. 8-speed forwarder with 2 Reverse
5. 5.5t front axle and 10t rear axle
6. Accessories: crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment
7. 360° rotation angle
8. Rated pressure of hydraulic system: 16Mpa

Upper body configuration:

1. Tank material: made of 5mm Q235 carbon steel material. Stainless steel material is optional.
2. Tank structure: welded structure, built-in vertical and horizontal anti-sway plates, and high-tech anti-corrosion treatment.
3. Pump room: equipped with new easy-to-pull aluminum alloy rolling shutters.
4. Equipment box: manufactured by the built-in tower connection technology of aluminum alloy profiles produced by the introduction of European technology.

4. Tank volume: 8,000 liters with 6000L (water); 2000L (foam)

Product parameters

General	GVW/Curb weight	169250kg/10250kg
	Rate of load	8000kg
	Overall size	811025403600mm
cab	Cab	Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window
Chassis	Siren control system	Yes
	Air conditioner	Yes
	Drive type	4x2 left hand drive
	Fuel type:	Diesel
	Engine manufacturer	YUCHAI
	Power	240hp
	Displacement	7255ml
	Emission standard	Euro3
	Engine type	Inline six cylinder, four-stoke, water-cooled, turbocharged and intercooled, fuel direct injection pump.
	Shift box	8-speed Forwarder with 2 Reverse
	Brake	Air brake
	Wheelbase	5750mm
	Axle load	5500kg/10000kg
	Tire specification/No.	11R22.5/6+1
	Max speed	85km/h
	Paint color	Red paint
Special configuration	Water Tank capacity	6000L Made in high-strong carbon steel with anti-corrosion
	Foam tank capacity	2000L Made in high quality steel with anti-corrosion
	Consist of crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment.
	This truck is improved and refitted with chassis of Foton. It is equipped with foam spraying fire system. The spacious cabin is suitable for six crews. Its internal structure reasonable and compact its foam spraying fire system could be used signally or jointly
Technical Data for monitor sky lifting function
Max. Working Height	12m(22m,25m,28m can be chose)	Outrigger Span	2350mm
Max. Working Radius	6.5m	Rotation Angle	360°
Max Luffing Angle of Boom	85°	Rated Pressure Of Hydraulic System	16Mpa
Max Luffing Angle of Forearm	155°	Max Oil Flow Of Hydraulic System	30L/min
Safety Performance	· On and off interlock device
	· Turntable indication device
	· Boom and forearm interlock device
	· Rotation limit device
	· System does not work after power failure
	· Soft leg alarm function
	· Boom and forearm Angle Mechanical limit device

Reference photos

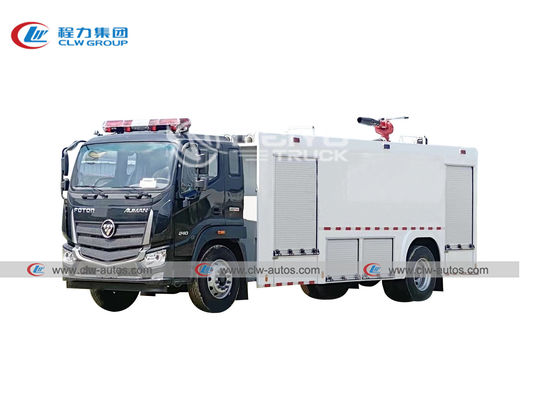

Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 0

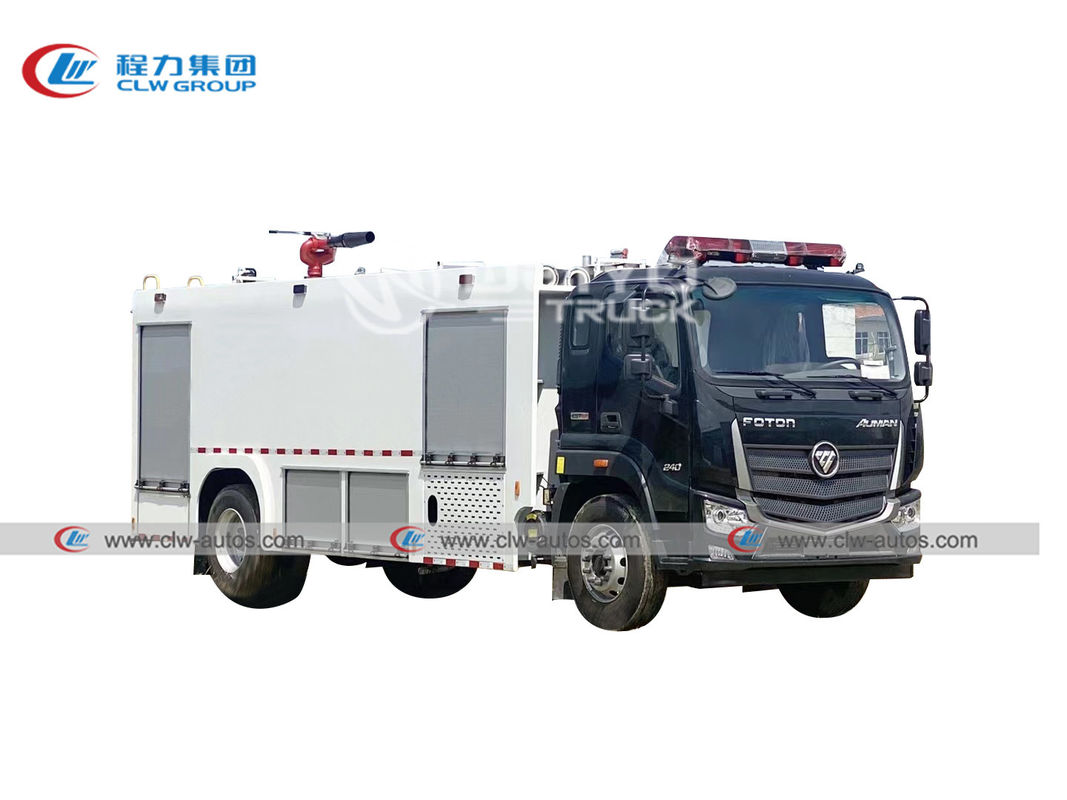

Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 1

Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.

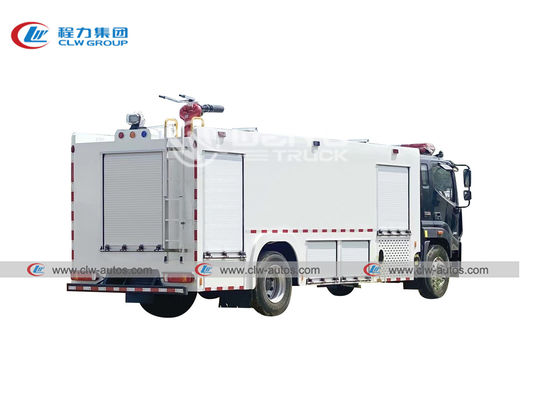

Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 2

Equipment come with fire trucks
Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 3

Production Procedure

Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 4

Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree 5

After-sale service

a. Before purchasing:

1-Quick reply on customers' inquiry;

2-Professional suggestion on truck choice according to different countries.

3-Details quotation with spec.and reasonable price.

4-Welcome to visit our company before purchasing.

b. After purchasing:

1-Production pictures and video updated every week.

2-Customer can visit factory after truck completion or arrange third party inspection.

c. After-sales service:

1-English Operation Video

2-Free operation and technical train at factory but not include accommodation

3-Spare parts supplied at factory price whenever needed.

4-Engineers can be sent to your country and offer local engineering support and train.
