Isuzu 20m3 20cbm LPG Tanker Truck Propane Butane Delivery Truck
1. Truck Chassis Specification:
a. I-suzu Chassis, Left Hand Drive.
b. 300 HP Diesel Engine, Euro-5.
c. GearBox: Fast 9-speed gearbox
2. Tanker Main Specification:
a. Tank Size: 20000Liters, 20 cubic meters, Loading Capacity: 10tons.
b. Tank Material: Q345R for pressure, Q370R material for optional.
c. Tank thickness: 12mm. End Plate thickness: 12mm.
d. Liquid Phase & Vapor/Gas Phase
e. Float ball or Rotor tyoe level gauge, With Thermometer, pressure gauges.
Product descriptions
| Item No. |
Parameters |
| Overall Dimension |
10100x2500x3350mm |
| Driving Model |
Left hand drive |
| Gross Vehicle Weight |
25000 kg |
| Curb Weight |
10600 kg |
| Payload |
14,205 kg |
| F/R Axle Loading |
7000/18000*2 kg |
| Wheel Base |
5100+1300mm |
| Engine |
6HK1-TCH diesel engine |
| Engine horsepower |
300 HP Euro 5 |
| Max Driving Speed |
90 km/h |
| Gear Box |
FAST 9-speed |
| Cabin |
2~3 Passenger allowed,with A/C |
| Tire |
10.00R20 (10 pc with 1 spare) |
| LPG tank |
| Volume: |
20cbm |
| Tank material: |
Q345R |
| Tank diameter: |
2100mm |
| Tank thickness: |
12mm |
| End plate |
12mm |
| Tank length: |
As designed |
| Liquid Phase |
DN50 or DN80 for option |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Accessory |
| Level Gauge |
Manual rotation type,at the rear of tank |
| Safety Valve |
1 |
| Tool and Valve Box |
1 |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Emergency Valve |
1 |
| Fender |
Steel |
| Fire Extinguisher holder |
2 |
| Exhaust shaft |
At the front of truck for safety |

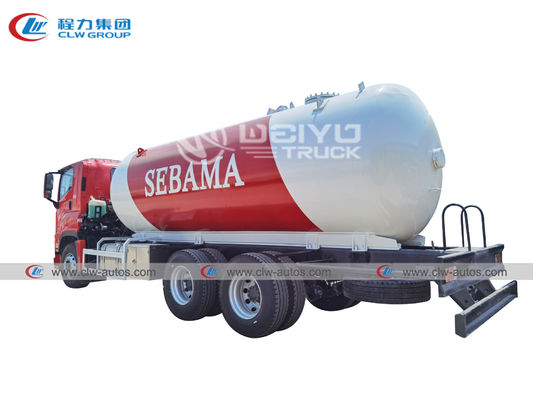

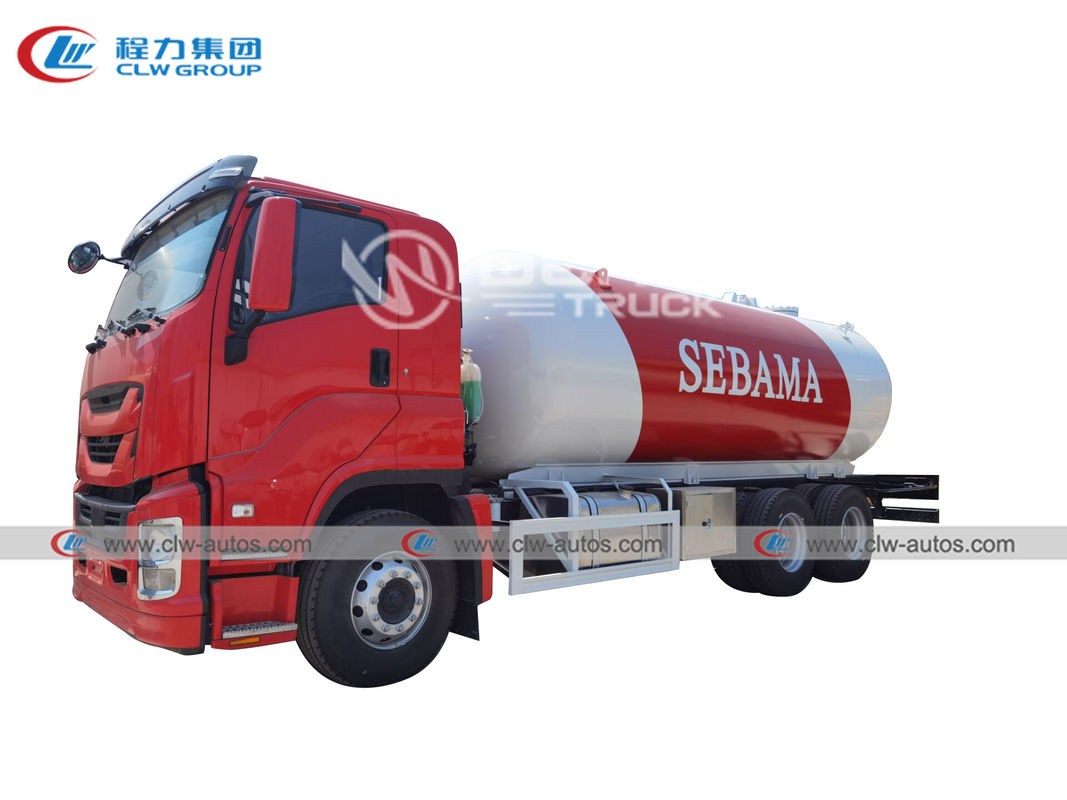

Reference photos:
It is designded and used for transporting and propane/lpg gas/liquid petroleum gas.
Factory information
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products list:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor head
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
After- sale service
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
