Faw 340HP 18m3 18cbm Crude Oil Fuel Tanker Truck With ADR Certificate For Pakistan Namibia Market
Oil tamker truck is mainly used or storage and transport oil, diesel, gasoline, kerosene, stainless steel fuel bowser etc.
Our fuel tank superstructures are designed and engineered to maximize the daily handling in realtion to safety and comfort as well as to maintainability and durability years over years.
Product advantages
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc but welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equipped separators baffle to prevent surging of liquid towards bulk head.
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Product Specifications
| General Technical Parameters |
| Overall Dimension |
10310X2500X3200(mm) |
Gross Vehicle Weight |
28000(kg) |
| Curb Weight |
10450(kg) |
Loading Weight |
18000(kg) |
| Chassis Specification |
| Chassis Parameters |
Chassis Brand |
FAW |
| Cabin |
Row and half, right Hand Driving |
| Engine |
Power |
340HP |
| Emission standard |
EURO2 |
| Displacement |
10000ml |
| Fuel type |
Diesel |
| Gearbox |
9 Forward & 1 Reverse Gear |
| Front and Rear Axle load |
6.5T/13Tx2 |
| Wheel Base |
4350+1350(mm) |
| Brake System |
Pneumatic |
| Steering Gear |
Power Assistant |
| Tire |
11.00R20, 10 Pieces+one spare tire |
| Maximum speed |
90(km/h) |
| Tank Body |
| Shape |
Monoblock Cylinder |
| Total Volume(m3) |
18m3 |
| Tanker Body Material |
5-6mm carbon steel |
| Manhole Cover |
∮500mm ,1 set with 1 breather valve |
| Bottom Valve |
1 set |
| Discharging Valve |
1 set ∮80mm discharging valve |
| Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Accessories |
One standard tool box |

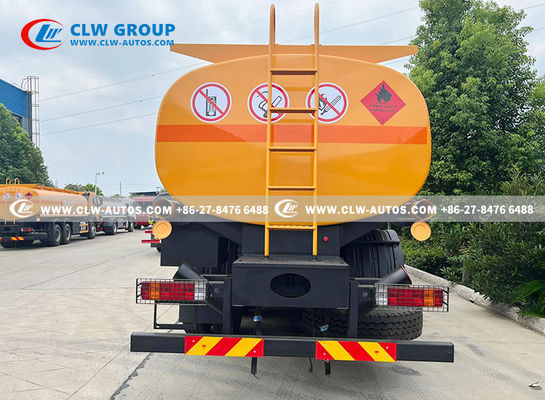

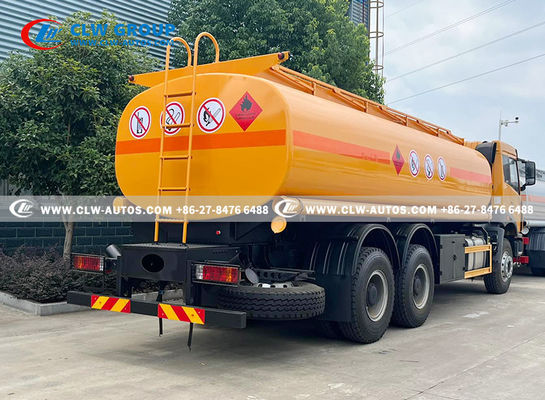

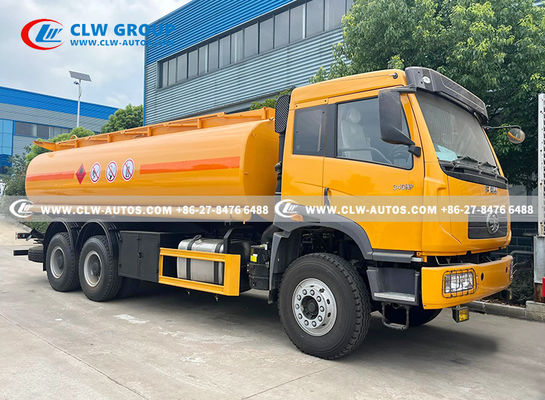

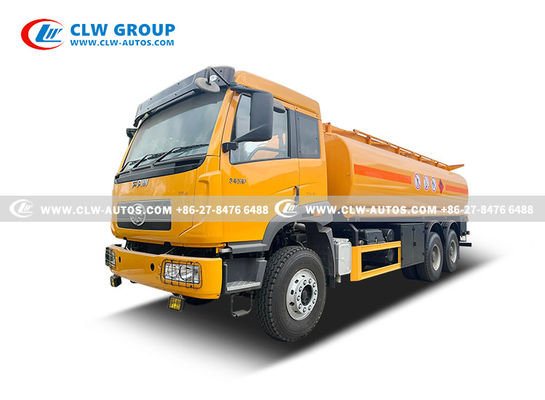

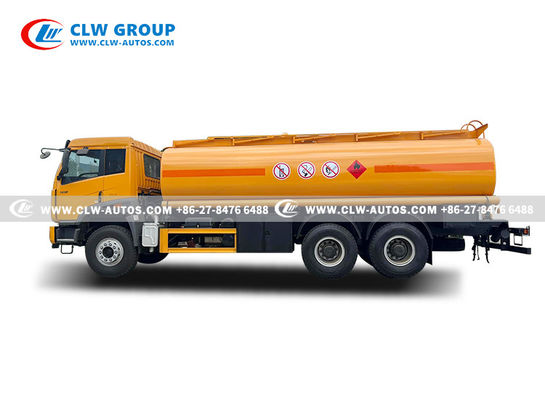

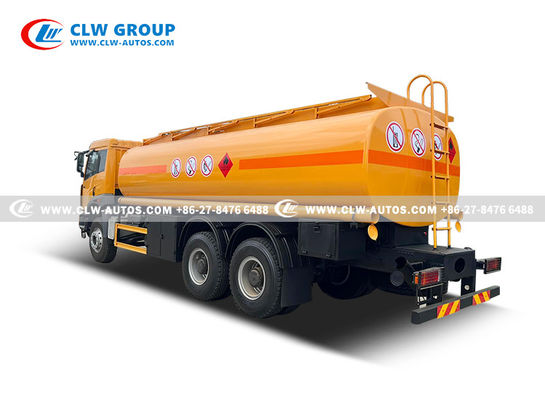

Reference Photos
Key words: Fuel bowser truck, fuel tanker truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck, oil delivery truck, Mobile Fuel Truck, oil loading truck, oil refuelling truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck.
It can be divided into many compartments to transport different medium, which will make your transportation easy and safe.
Open mesh walkway on the right-hand side of the manhole cover, with rear mounted access ladder. Collapsible handrail made of aluminum, fixed as safety barrier, along the dome-pan on top of the diesel tank superstructure. The operation of the handrail is manually, next to the access ladder.
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
