22meter Aerial Working Truck Hydraulic Telescopic Boom High-Rise Building Maintenance Platform
As a bucket truck is simply a utility truck fitted with a hydraulic pole (boom) that has a man-carrying bucket at its end. the bucket helps keeps the worker safe as the boom lifts him up to where he can comfortably use his tools and safely perform his job.
having long been used to perform traditional aerial tasks in sectors such as telecommunication, utility, signage, forestry, and construction, bucket trucks are becoming even more commonplace. this is due to more stringent regulations mandating a decrease in use of ladders and scaffoldings to perform various off-the-ground jobs that may be unsafe and lead to accidents.
| meter |
Overall dimension (Length*width*high) |
(mm) |
8230*2320*3380 |
| Total Mass |
(kg) |
7450 |
| Kerb Mass |
(kg) |
7060 |
| Wheel base |
(mm) |
3815 |
| Front/rear tract base |
(mm) |
1665/1600 |
| Approach/rear angle |
|
24/12 |
| Max speed |
(km/h) |
95 |
| Fuel type |
|
diesel |
| Engine |
Engine type |
|
wd615.62 |
| Exhaust/power |
(ml/hp) |
2660/266 |
| Displacement standard |
|
EURO II |
| Chassis |
Chassis type |
|
HF19710 |
| Drive system |
|
4x2 |
| Tire type |
|
11.00r20 |
| Number of tire |
|
6 |
| Front/rear axle loading(kg) |
|
2460/4990 |
| Gear box |
|
|
| Cabin |
|
Double row cab |
| Special parameter |
Working platform rating loading |
(kg) |
200 |
| Max operation height |
(m) |
18 |
| Max working radius |
(m) |
8.5 |
| Rotation speed |
(r/min) |
0~2 |
| Max hoisting height |
(m) |
|
| Rated hoisting capacity |
(kg) |
1000-2000 |
| Max rotation angle |
(°) |
360 |

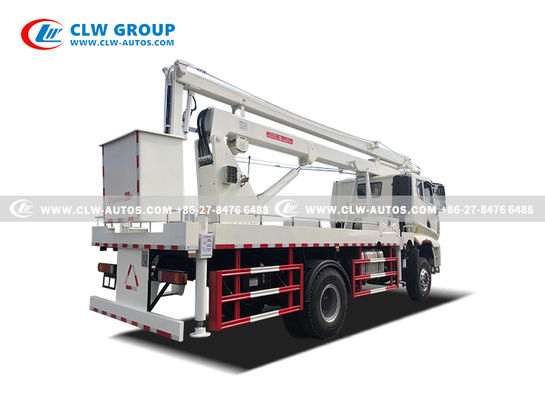

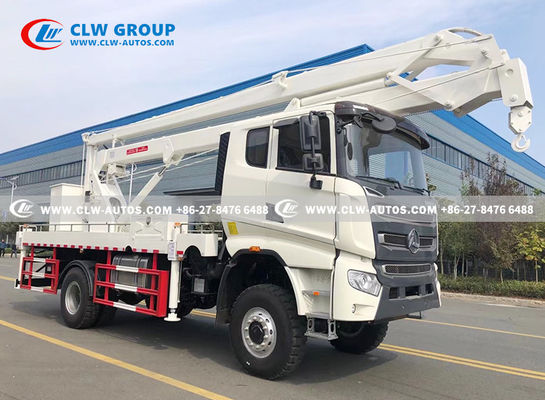

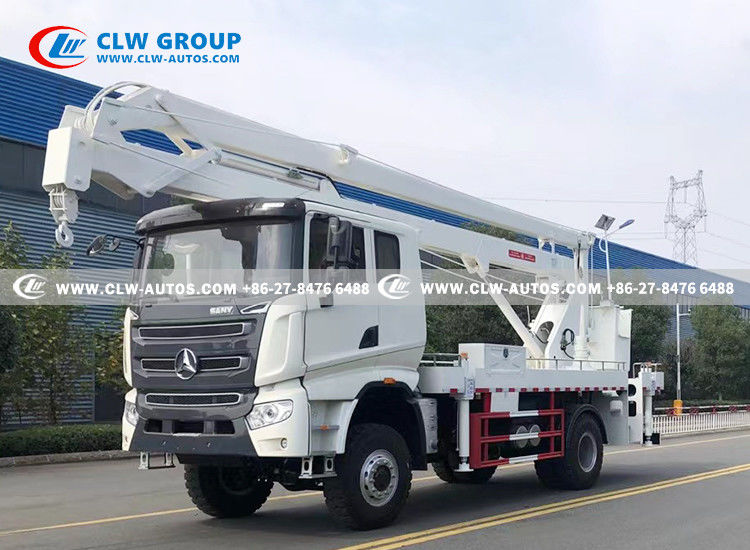

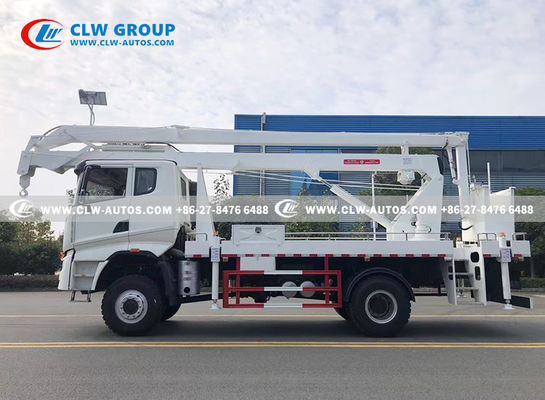

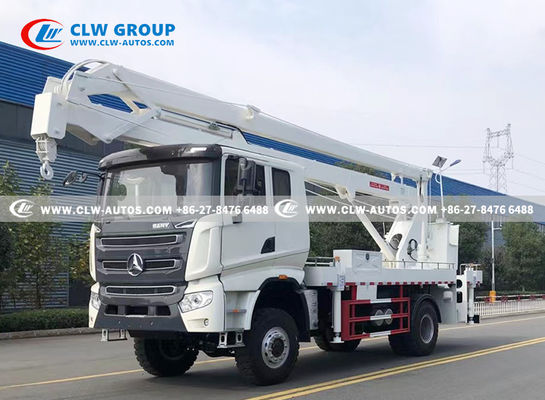

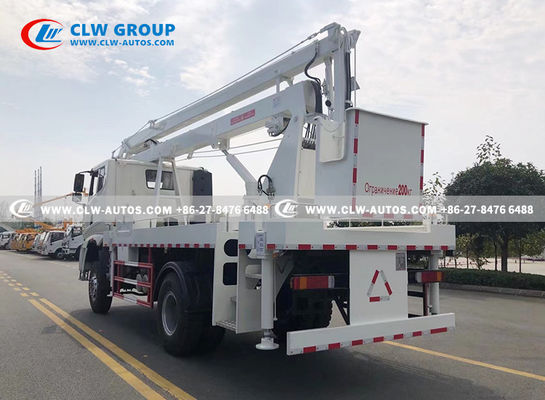

Pictures for 22 meters Telescopic Boom Aerial Lifting Truck With Working Bucket
Working Pictures
Remarks:
1. truck chassis brand is selectable
2. the outrigger operation box is equipped with a lighting device to facilitate work at night and configure the vehicle's bidirectional level to ensure the vehicle's level and ensure safety.
3. The boom rotation is designed as a one-piece swivel to avoid assembly gaps during reassembly in production, and increases the space of the platform.
4. Front and rear H-shaped legs, good stability, can be operated simultaneously or individually, standard washing boxes for all models
5. Upper arm limit device, when the upper arm exceeds the safety angle, the boom will be in a self-locking state to ensure the safety of the operator
6. Up and down steps are equipped on the side(aluminum alloy platform optional )
7. The thickened cylinder seat and the boom cylinder block are all specially thickened to ensure the stability of the boom 8.Sectional coating to ensure the paint quality of the vehicle 9.All cutting parts are CNC laser cutting
Main features:
1. Adopt electro-hydraulic proportional valve to control the action of the arm
2. Working bucket electric swing mechanism, can make the working bucket 90 degrees left 90 degrees right swing;
3. Computer controlled automatic limiting, automatic monitoring of the whole process of the working status, automatic limit of the operating radius;
4. Vertical legs and working arms are interlocked
5. Anti collision function of working arm with cab and outrigger
6. Automatic interlock on and off, prevent wrong operation, safe and reliable
7. Equipped with electric emergency power source to effectively deal with sudden failure
8. Automatic accelerator system
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISU-ZU,FOTON,FAW,BEIBEN,ETC
