HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerSoğutmalı Kasalı Kamyon

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Büyük resim :  Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
Van Ara Yatak Kalınlığı: 80mm 100mm 120mm Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
yükleme ağırlığı: 6-8 Ton Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Hana
Şasi markası: Isuzu, Dongfeng, Foton, Howo vb. Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı: 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm Logo ve Resim: Müşterinin istekleri doğrultusunda
Teslim süresi: 30-35 iş günü Garanti: 1 yıl
Vurgulamak:

Petrol Refrigerated Van Truck

,

1T Refrigerated Van Truck

,

Ratio Foton Refrigerated Box Truck

High Quality Price Ratio Foton Mini 1ton Petrol Seafood and Fish Delivery Refrigerator Van Truck




Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 0


Product Specification

General Technical Parameters
Overall Dimension5200*2300*2450(mm)Gross Vehicle Weight3300(Kg)
Curb Weight2300(Kg)Loading Weight1000(Kg)
Chassis Specification
Chassis parametersChassis BrandFoton
CabinSingle, Left Hand Driving, with A/C
EngineModel4 Cylinders
Power112HP
Emission standardEURO 5
Displacement2.999L
Fuel typePetrol
Gearbox5 Forward & 1 Reverse Gear
Front and Rear Axle load2T/3T
Wheel base2600(mm)
Overhang( Front/Rear)1130/1505(mm)
Angle(Approach/departure)20/16(°)
Brake SystemAir brake
Steering GearPower Assistant
Tire6 Pieces with 1 Spare Tire
Maximum speed105(km/h)
Superstructure
VanBox size4100*2300*1800(mm)
MaterialFiberglass
Insulating Layer10cm Polyurethane Foam

Truck refrigeration unit

BrandFamous Chinese Brand
ModelBL300
Applicable temperature (ºC)-15~0
RemarksPart Optional: Ventilation slot
Hook
External power supply
Side door

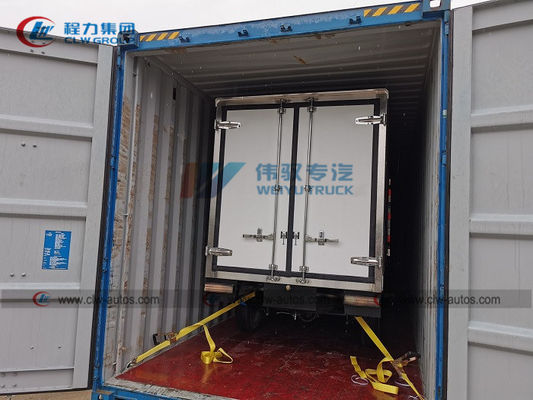

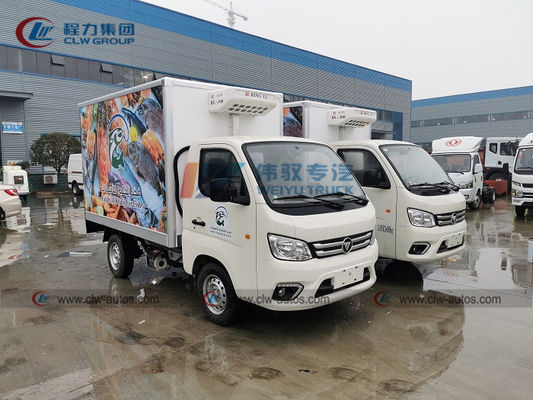

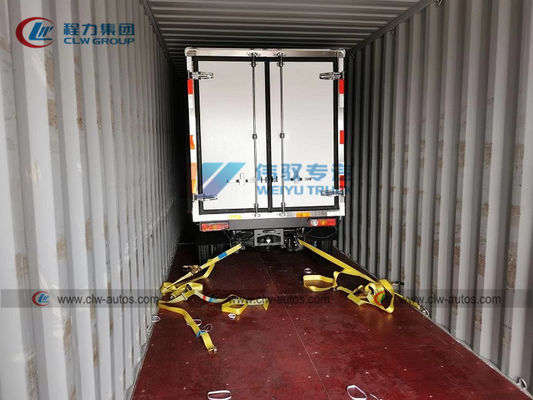

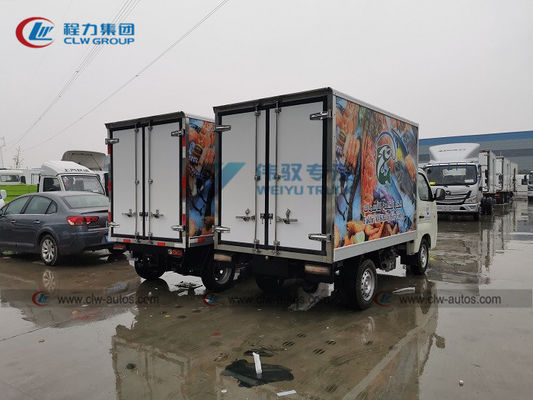

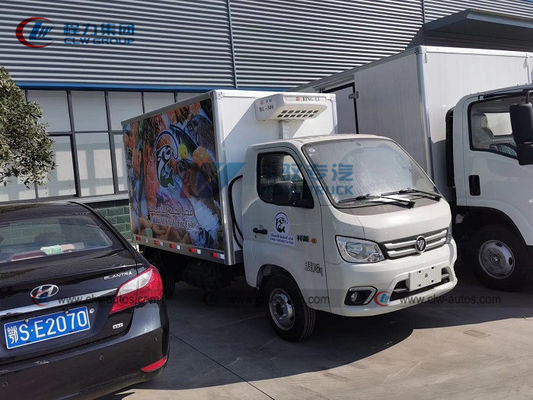

Reference Photos
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 1
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 2
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 3
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 4
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 5

Optional Parts
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 6

Different Capacities of Refrigerator Truck
Ratio Foton 1T Petrol Seafood Delivery Refrigerated Van Truck 7

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
