6m3 Waste Compactor Truck

6m3 Waste Compactor Truck
6m3 Waste Compactor Truck 6m3 Waste Compactor Truck 6m3 Waste Compactor Truck 6m3 Waste Compactor Truck 6m3 Waste Compactor Truck 6m3 Waste Compactor Truck

Büyük resim :  6m3 Waste Compactor Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC,ISO
Model numarası: CLW5734VG

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi: 20-30 gün
Ödeme koşulları: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini: Aylık 500Birim
Detaylı ürün tanımı
marka: DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU Sürücü tekerleği: 4x2
Bileşenler: Yükleme, Sıkıştırma, Boşaltma Kamp Etki Oranı: 0,6-0,7 Ton/Cbm
İşletim Sistemi: Biri Kabinde, Biri Kamyonun Arkasında Amaç: Ev içi çöp taşımacılığı
Garanti: büyük parçalar için bir yıl operasyon videosu: Evet, seçim için Çoklu dil ile
Teknik destek: ne zaman ihtiyaç duyulursa Logo: Müşterinin talebine göre
Vurgulamak:

6m3 Waste Compactor Truck

,

HOWO 4x2 Waste Compactor Truck

,

6m3 Garbage Collection Truck

HOWO 6m3 Waste Compactor Truck Garbage Collection Truck



  • Compressed garbage truck is the most widely used vehicle type, which realizes efficient transportation by compressing domestic garbage
  • Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.


Specifications of HOWO 6m3 Waste Compactor Truck



HOWO 6m3 Waste Compactor Truck
Overall Dimension       6220×2050×2570 mm Gross Vehicle Weight 7360 kg
Curb Weight 5400 kg Loading Weight 1830 kg
Wheel Base 3308 mm Front / Rear Axle 5000 kg / 10000kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine Yuchai
Engine horsepower 102HP, EURO II
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Reverse Gear,
Tire 7.00R16 (6 pieces with one spare)
Garbage Bin Capacity 6CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request

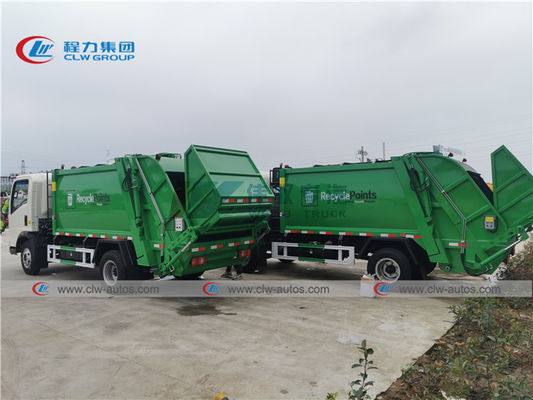

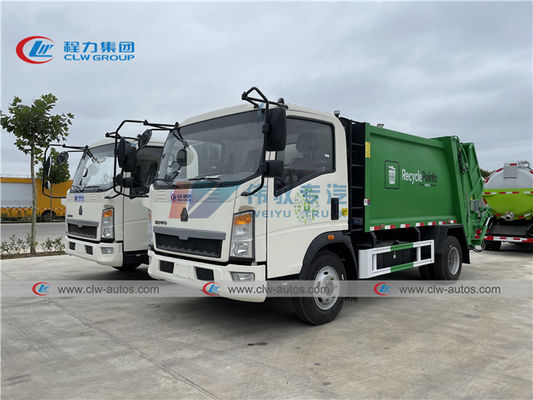

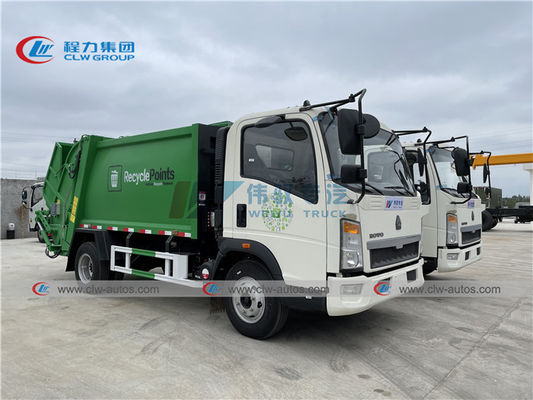

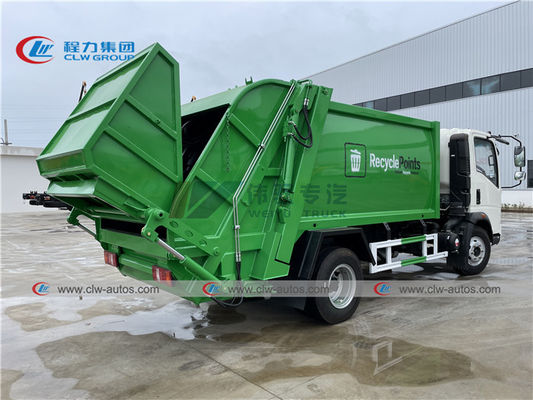

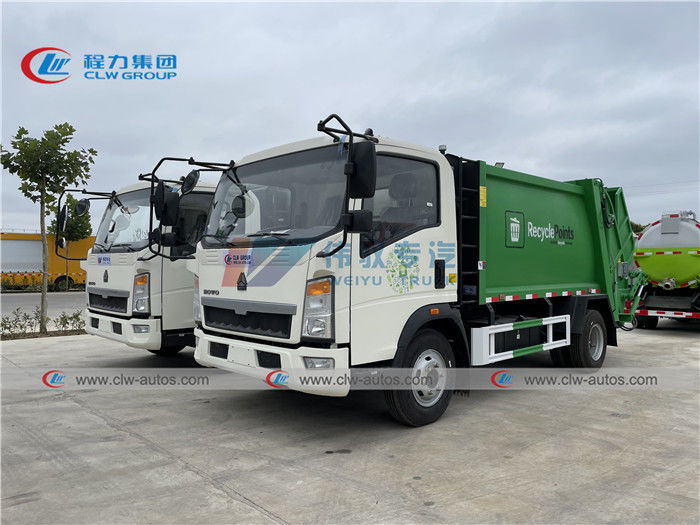

Truck details

6m3 Waste Compactor Truck 06m3 Waste Compactor Truck 1





Diagram

 6m3 Waste Compactor Truck 2

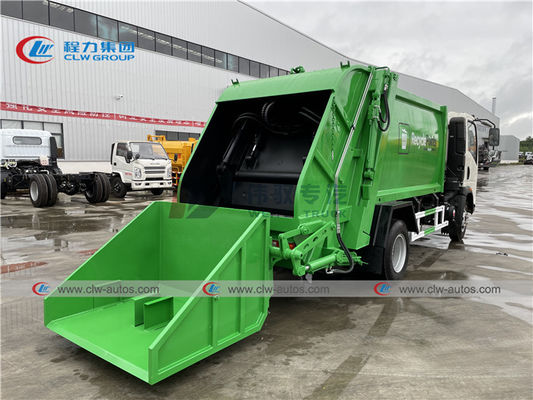

Working Show

6m3 Waste Compactor Truck 3

Our Service

  • Quick feedback to solve your questions

  • Reasonable price and good quality

  • Quick delivery and shipment


FAQ


Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
