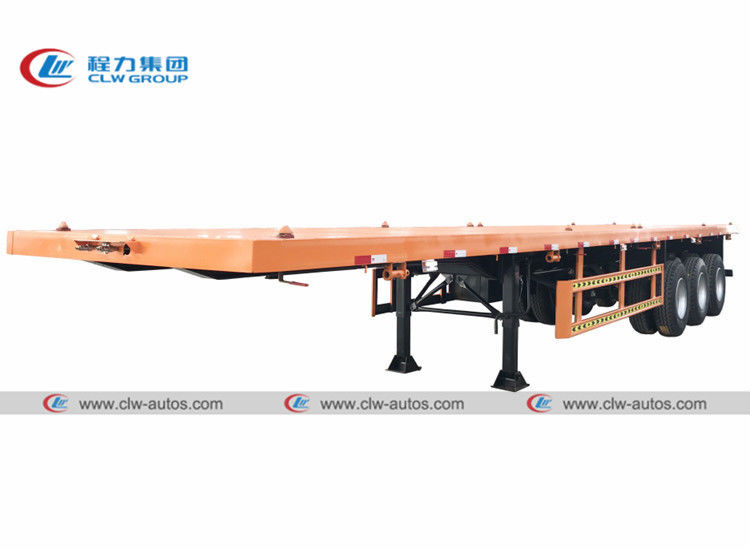

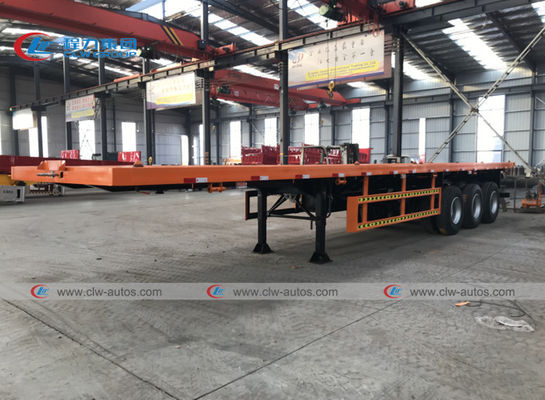

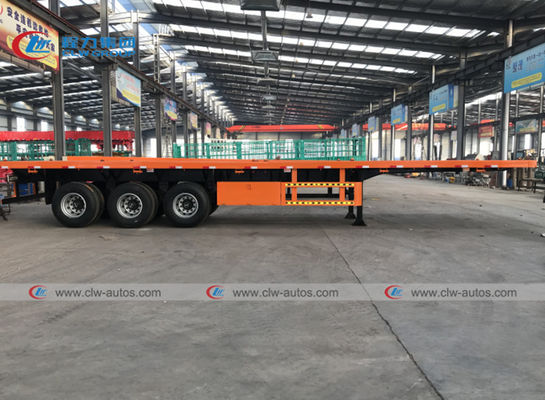

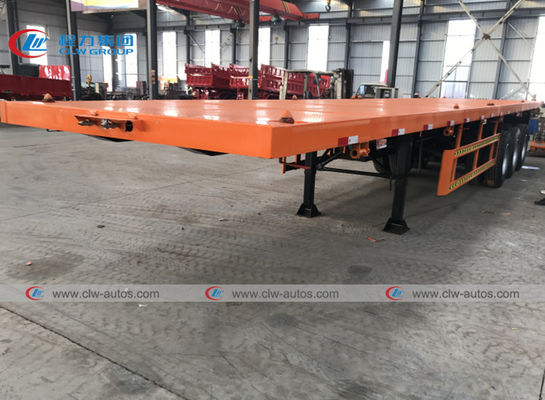

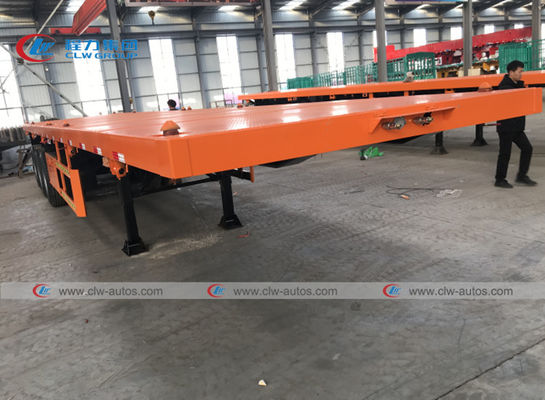

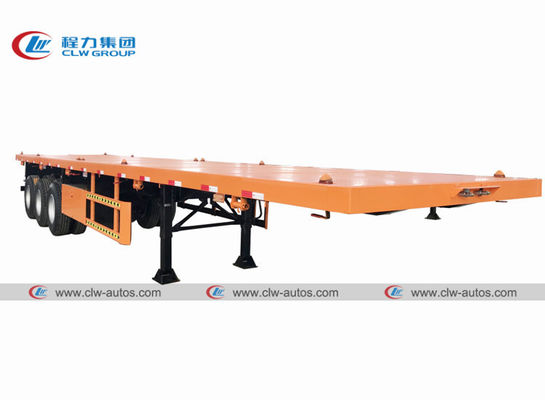

40FT 3 Axle 45 Ton Container Loading Flatbed Semi Trailer

Characteristics :

> Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc, side wall height optional.
> Light Weight - Light tare weight with strong loading capacity.
> Perfect Welding - Automatic welding of main beam guarantee stability and durability.
> Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.

1. We have well experienced in reseaching and developing different low bed trailers:2 axle low bed trailer, 3 axle low bed semitrailer, 20 T gooseneck semitrailer, 30 T low bed semitrailer, etc.
2. High quality strength steel Q345B for I-beam
3. Axle: German BPW or FUWA from 12 tons to 20 tons
4. Suspension: Mechanical suspension, air suspension.
5. Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6. King pin: Optional for 2" or 3.5" Kingpin
7. Twist locks: Standard 4 sets and others for Optional

Characteristics

1. Side member of upper camber structure: As per the mechanical analysis, the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users.

2. Sophisticated process: The main parts of the vehicle are fabricated by advanced equipment. The longitudinal beams are welded by imported fully automatic tracking submerged arc welding machine. The wheels and axles are assembled by assembly machine and the wheelbase is guaranteed by distance measuring equipment.

3. Suspension system: The characteristic new suspension system and imported US Holland suspension system feature balanced load among various axles. The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation. The snap rings for shafts are one of integral casting.

4. Axles: The axles choose the quality products manufactured by professional factory, featuring high bearing capacity and difficult deformation. In addition, the optional anti-lock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle.

5. Light of dead weight: The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength. While reducing the dead weight, the bearing capacity is effectively guaranteed.

6. Low bearing surface: The optional goose neck structure of beam effectively reduces the height of bearing surface, lowers the gravity center, and improves the transport safety.

7. Humanized design:
→The limiter is added to the spin lock to ensure safer transport;
→The design of spin lock handle features beautiful and elegant and easy operate;
→The operating handle of front enclose spin lock is located within the front enclosure frame, in order to prevent the handle from scratching the accessories of main unit.
→Two positioned three-way valve is added to the brake system to improve the safety of parking brake.

8. Electric system: The electric system adopts the genuine fully sealed harness from domestic renowned brands. The lamps adopt new LED lamp, featuring high illumination intensity and light perception, high mist penetration, stale working performance and long service life.

9. Welding procedure: Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping, automatic transmission and other large tools welding, effectively control welding deformation and guarantee the smoothness and technical requirements. The turnover model makes the welding strength; The electric tilting system controls the manufacture process spare part distortion. Mixes gas welding ensures the welded joint quality.

10. Painting craft: Using the baking varnish craft, primer twice, top coat twice and detection is made strictly according to the national standard for film thickness to guarantee the paint quality and brightness.
