SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road Recovery Rescue Vehicle Wrecker Truck
Product Description:
A tow truck has multiple functions such as lifting, pulled and lift traction. It is mainly used for road vehicle breakdown, city peccancy vehicles and emergency rescue etc.
Feature
-- Powerful SHACMAN 10X6 16 wheeler truck chassis;
-- 360 ° rotation rotator towing truck as optional;
-- Italy hydro control control valve and balance valve;
-- Wuxi oil hydraulic pneumatic equipment co ltd;
-- One-step modeling compartment plate by germany 3P2A punching machine;
-- Adopting American wrecker design and manufacturing technology.
-- Key components using the finite element stress analysis (CAE technology)
-- Adopting high quality high-strength steel for important components
-- Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
-- The key hydraulic lines seals imported from Germany.
-- All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting),
increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
-- Equipped with various fork lifts (including leaf spring forks).
-- High and low fork combined with various fork lifts.
-- Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
-- Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
-- Boom with 360 degree continuous rotation.
-- Equipped with trailer towing disk, remote control is optional.
Specification for SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road
Recovery Rescue Vehicle Wrecker Truck:
| Overview |
| Name |
10X6 Shacman 30-50 Tons Wrecker |
| Dimension(LxWxH) |
9809X2496X3115(mm) |
| Total Mass |
40080 Kg |
| Rated Payload |
30000 Kg |
| Kerb Weight |
10080 Kg |
| Passenger |
3 |
| Approach/Departure Angle |
19/22 |
| The Parameters of Chassis |
|
| Manufacture/Model |
Shacman |
| Driving Type |
10*6 left hand drive/right hand drive |
| Wheel Base |
1800+3000+1350 mm |
| Gearbox |
Eleven speed lever with ten speed forward and one reverse, manual |
| Front/Rear Track |
2022,2041,2022,2041/1830(mm) |
| Tyre |
11.00-20 |
| The Number of Tyre |
12+1(spare tyre) |
| Front/Rear Suspension |
1500/750(mm) |
| Leaf Spring Number |
14/13/14/13/12 |
| The Paremeters of Engine |
| Manufacturer/Model |
Weicai |
| Rated Power |
370hp/273kw |
| Fuel Type |
Diesel oil |
| Displacement/Capacity |
9726ml |
| Emission Standard |
Euro3 |
| Cylinder |
Straight/6/intercooling |
| Max. torque |
1500N.m |
| Velocity |
2200rpm |

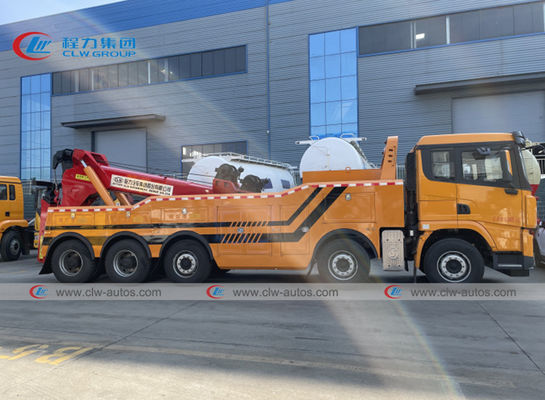

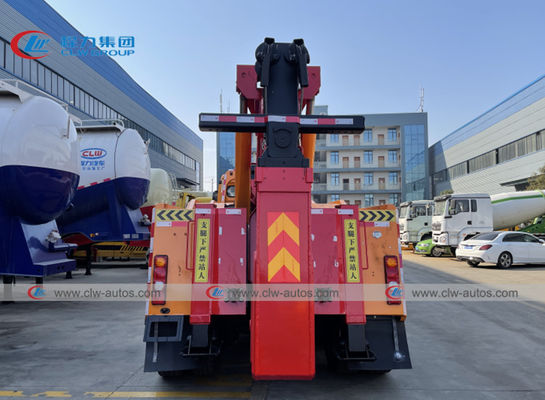

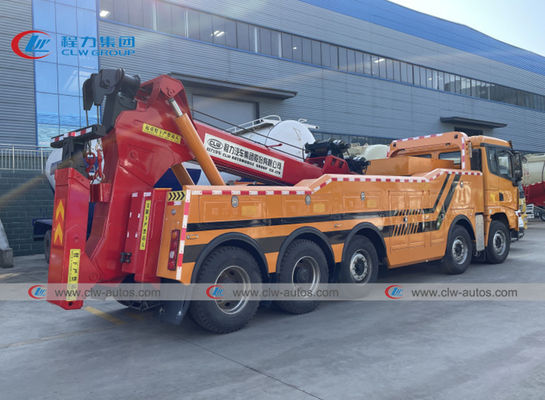

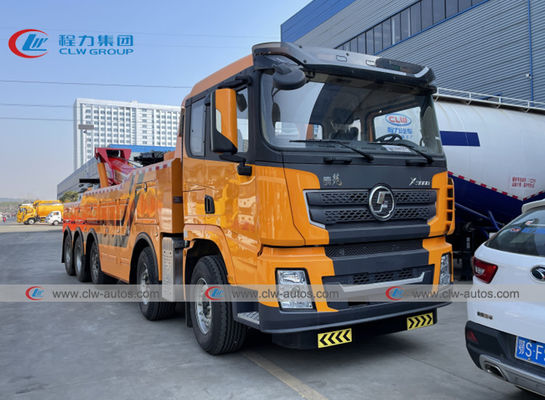

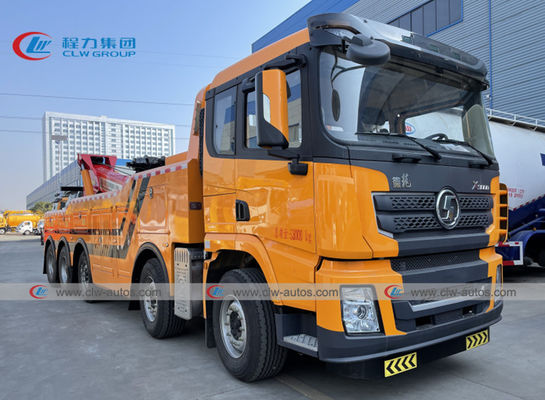

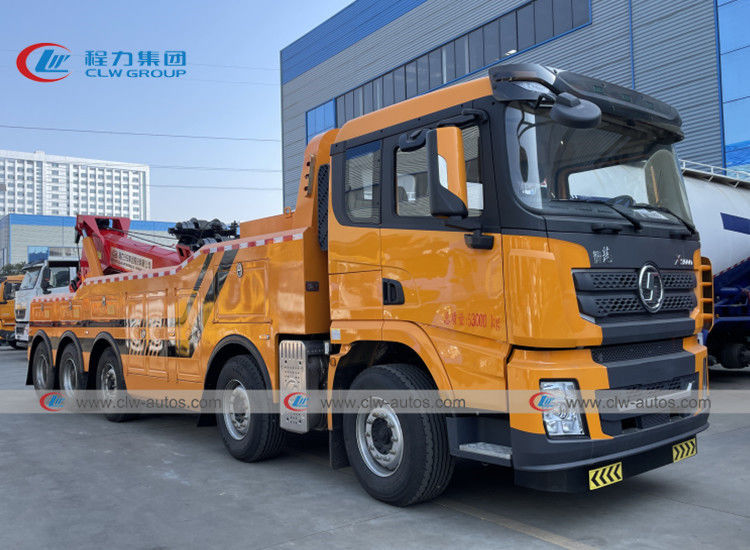

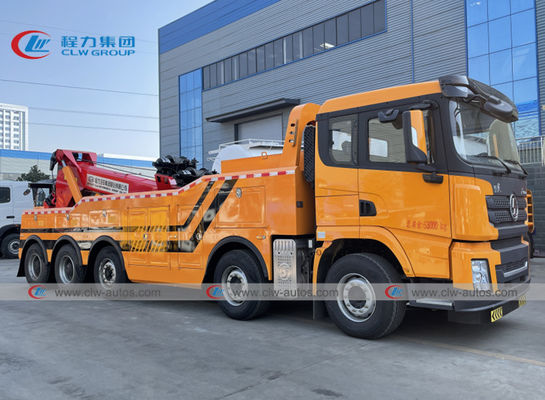

More pictures for SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road Recovery
Rescue Vehicle Wrecker Truck
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
