3 Axle Flatbed Tanks Trucks And Trailers 40ft Container Semi Trailer 40t / 50t Double Tires

Büyük resim : 3 Axle Flatbed Tanks Trucks And Trailers 40ft Container Semi Trailer 40t / 50t Double Tires

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW9400PBG

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Dingil Miktarı:	3 Hayır.	Aks markası:	FUWA/L1/Almanya markası BPW
Lastik miktarı:	Tek lastik 7No./Çift lastik 13No.	askıya alma:	Mekanik/hava süspansiyonu
Malzeme:	Karbon çeliği	Zemin Kalınlığı:	3,0 mm; 4,0 mm
Renk:	Beyaz/Mavi/Sarı/İsteğe bağlı	Sertifika:	ISO CCC
Vurgulamak:	stainless steel tanker trailers , chemical tank trailer

3 Axle Flatbed trailer 40ft container semi trailer 40tons 50tons Double tires container semi trailer

Product Description

1. Purpose: It used for transporting all kinds container and normal cargo.

2. Main parts: Suspension, Tire and axles.

3. Axle: Most of our customer all choose BPW or FUWA brand axle.

4. Tire: Double tire or Single tire for optional.

5. Landing leg: JOST or FUWA brand.

6. Suspension system: Mechanical suspension system is most customer's choose and some of our client will adopts air suspension system.

3 Axle Double Tire Flatbed Trailer Specification
Tare Weight	7700 kg
Payload	45000 kg
Overall Length	12460 mm
Overall Width	2480 mm
Overall Height	1440 mm
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle	3 Axles, FUWA brand 13 ton,
Suspension	Heavy duty mechanical suspension
Floor	3mm checker plate
Leaf Spring	10 piece Leaf spring
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	FUWA brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	13 pieces 8.25-22.5 steel wheel rim
Tire	13 pieces 12R22.5 tire with one spare tire.
Twist Lock	12 pieces of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories	One standard tool box

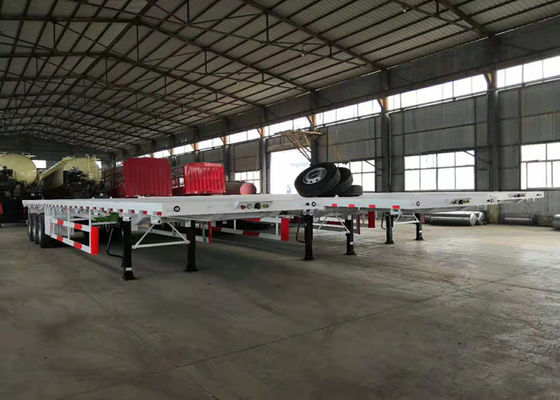

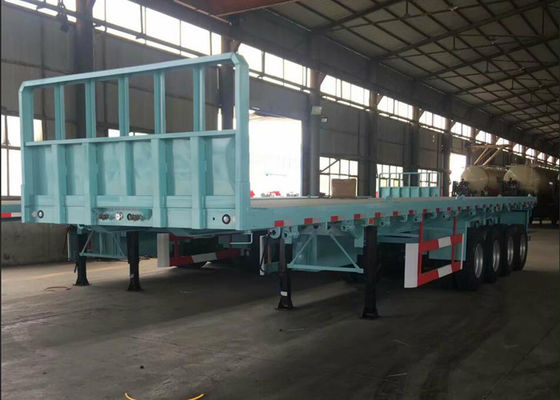

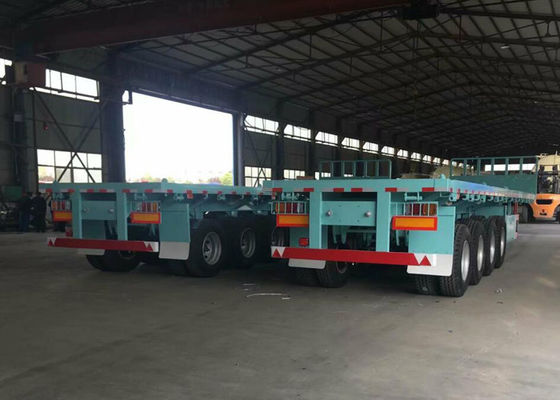

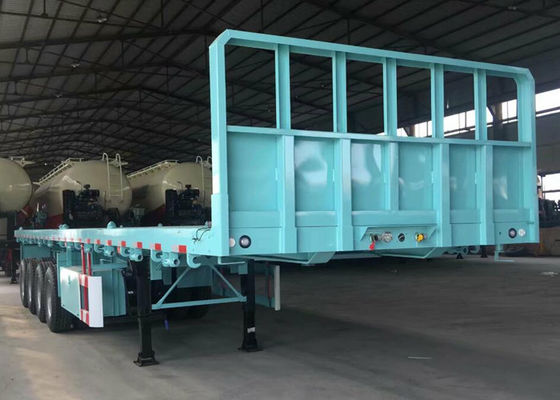

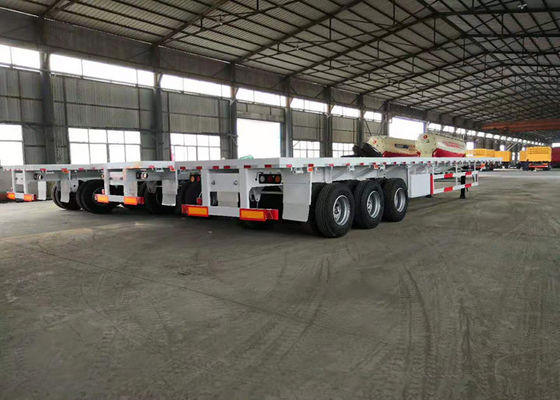

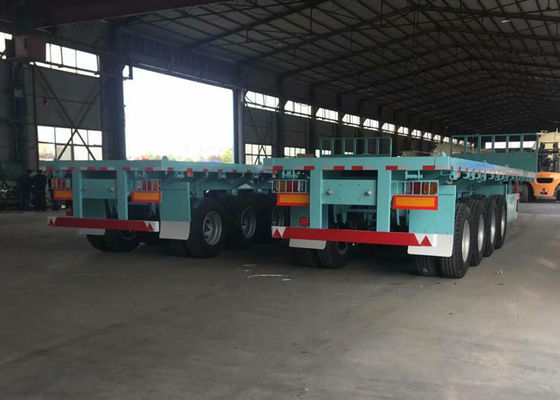

Products Show

3 Axle Flatbed Tanks Trucks And Trailers 40ft Container Semi Trailer 40t / 50t Double Tires 0

3 Axle Flatbed Tanks Trucks And Trailers 40ft Container Semi Trailer 40t / 50t Double Tires 1

3 Axle Flatbed Tanks Trucks And Trailers 40ft Container Semi Trailer 40t / 50t Double Tires 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of container semi trailer I can order from your company?

A: We can supply all kinds of container semi trailer. 20ft, 40ft etc.

Q2: Can we adopts International brand for the key parts of this kind of container semi trailer?

A: Sure. All key part of our bitumen tank truck and trailer all have International brand for optional. Such as Axles and Landing leg, we have BPT axle and JOST brand landing leg for optional.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
