LHD RHD Howo 4X2 3~4Ton Refrigerator Truck 4t Frozen meat transport Van Truck
Product Description
1. Purpose of 4Ton Refrigerator Truck: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of 4Ton Refrigerator Truck: Refrigerating unit and control system.
3. Features of 4Ton Refrigerator Truck: International chassis brand and International refrigerating unit brand for optional.
Spec of 4Ton Refrigerator Truck
| Condition |
New condition/Left hand drive/4x2 |
|
Chassis
|
Brand |
HOWO |
| Curb weight(kg) |
3210 kg |
| Payload(kg) |
1500 kg |
| Wheelbase(mm) |
3360 mm |
| Dimensions(mm) |
5995*2600*3350 mm |
| Front/Rear axle loading(kg) |
1790/2705 kg |
| Front/Rear overhang(mm) |
1160/1520 mm |
| Wheel track (front/rear) (mm) |
1605/1555mm |
| Approach/Departure angle(°) |
18/25 |
| Max. driving speed(km/h) |
90 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Hydraulic oil brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6pcs with one spare tire |
| Specifications |
6.50R16 |
| Transmission |
Manual type, 5 Forwards and 1 reverse |
| Cab |
Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector |
| Engine |
Brand |
Cummins |
| Model |
ISF2.8s519T |
| Fuel type |
Diesel |
| Horsepower(HP) |
130 HP |
| Emission standard |
Euro 4 |
| Upper |
| Box |
1. Box Size: 3400×1750×1750 mm
2. Box Material, glass epoxy in the surface; Foam in the middle , side ,top ,front ,rear thickness 80mm/100mm; Inside bottom: Aluminum pattern plate
|
| Refrigerating System |
1. Working temperature setting range: +30℃ to -30℃
2. Refrigerating unit brand and model: USA brand Thermo King
|
| Remarks |
Color is optional |

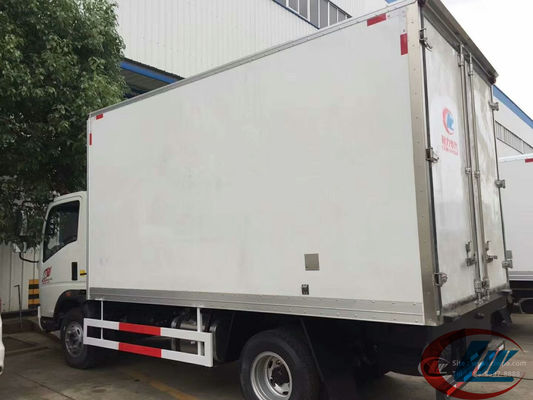

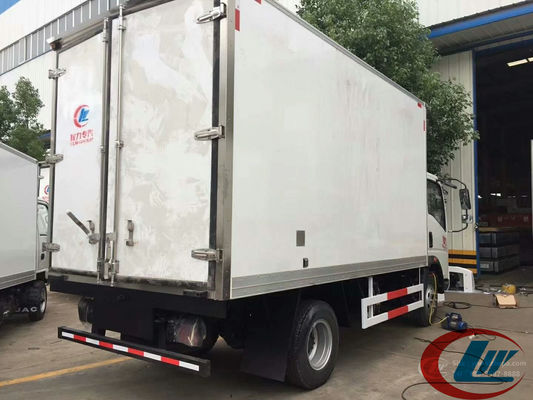

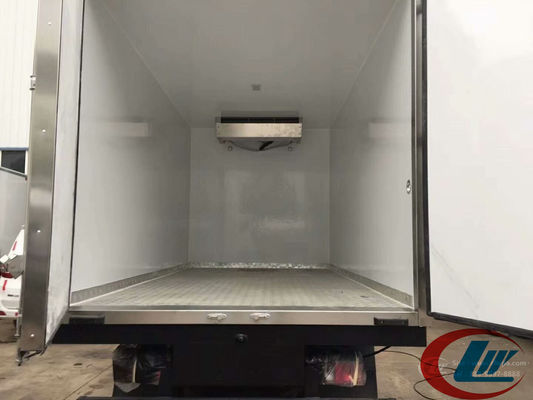

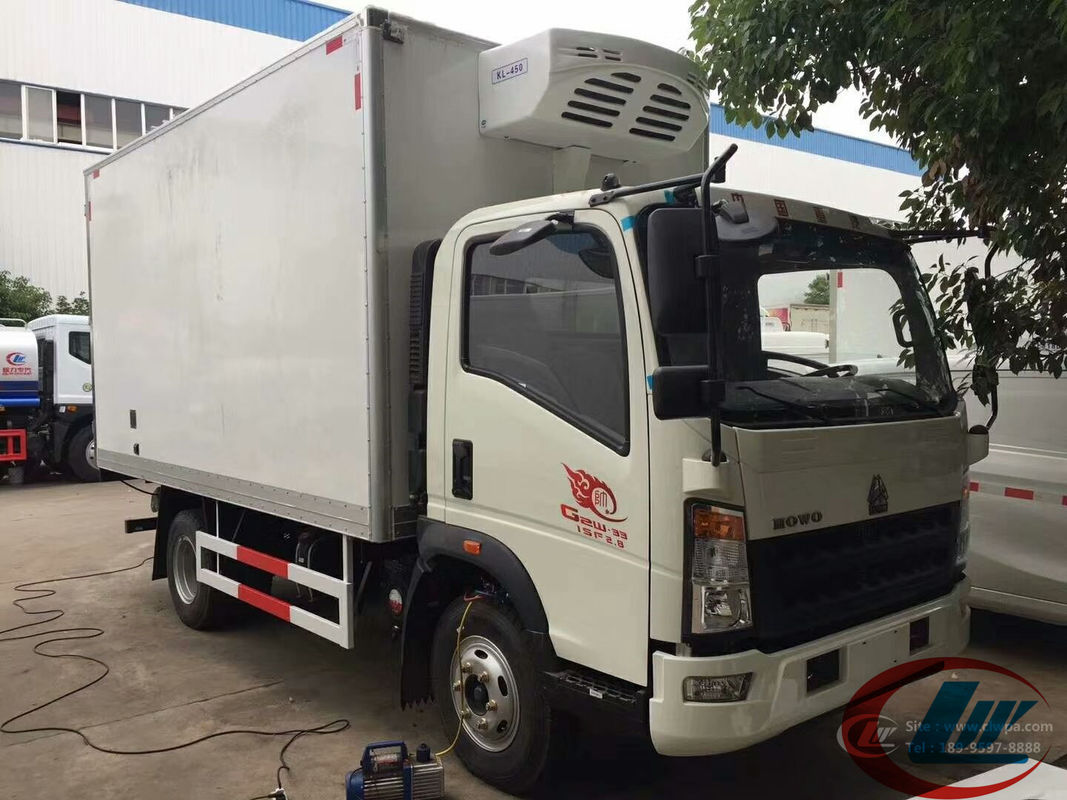

Products Show
Main Structure of 4ton refrigerator truck
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipmen
FAQ
Q1: What loading weight refrigerator truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
