Dump Tanks Trucks And Trailers 3 Axle Tipping Rear Unloading Dump Semi Trailer

Büyük resim : Dump Tanks Trucks And Trailers 3 Axle Tipping Rear Unloading Dump Semi Trailer

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW9500ZX

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Dingil Miktarı:	3 Hayır.	Aks markası:	FUWA/L1/Almanya markası BPW
Lastik miktarı:	Çift lastik 13No.	askıya alma:	Mekanik
Malzeme:	Karbon çeliği	Kalınlık:	Alt 6mm; Yan plaka 4mm
Renk:	Beyaz/Mavi/Sarı/İsteğe bağlı	Sertifika:	ISO CCC
Vurgulamak:	stainless steel tanker trailers , chemical tank trailer

Dump trailer 3 axle tipping semi trailer 40tons 50tons rear unloading dump semi trailer

Product Description

1. Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.

2. Main parts: Suspension, Tire and axles.

3. Axle: Most of our customer all choose BPW or FUWA brand axle.

4. Tire: Double tire or Single tire for optional.

5. Landing leg: JOST or FUWA brand.

6. Suspension system: Mechanical suspension system is most customer's choose and some of our client will adopts air suspension system.

7. Tarpaulin: Optional

8. Customized service: All products can be produced as per customer's request if there any specifized requirements.
9. Products name: Dump trailer 3 axle tipping semi trailer 40tons 50tons rear unloading dump semi trailer.

Name of product	Rear unloading dump trailer
Dimension(mm)	940025003500
Work Space	880025002000
Total Volume(m³)	40
Tare Weight(Kg)	13000 KG
Pay Load(Kg)	50000-60000 KG
Lifting System	China local brand
Box material	Q345 high quality carbon steel
Floor/Side wall(mm)	Bottom 6mm and side plate 4mm
King Pin	90#
Leaf Spring	10 pcs
Suspensions	Heavy duty mechanical suspension
Landing Gear	28tons
Axle	FUWA 13T*3
Tires	1200R22.5*13
Wheels	9.0-22.5*13
Relay Valve	China local brand
Brake Cylinder	Front 30 Rear axle 30/30
Spare Wheel Carrier	2units
Tool Box	1.5*1
Lamps and lanterns	LED
Cas channel nipples	Handshake type
Power outlet	24V7
Color	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Remark	With automatic tarpaulin

Products Show

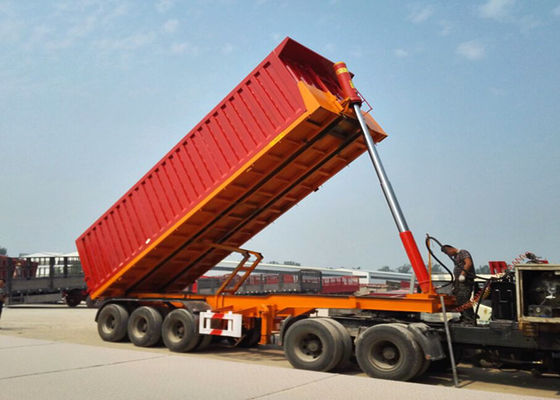

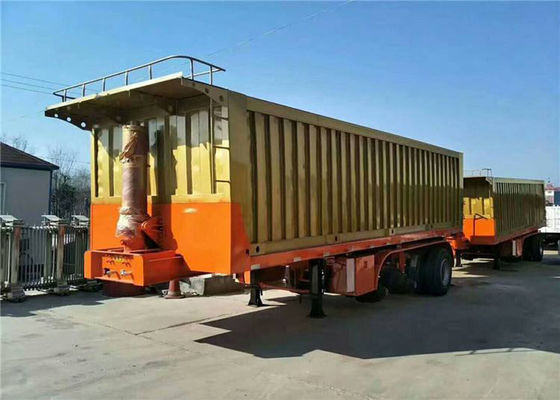

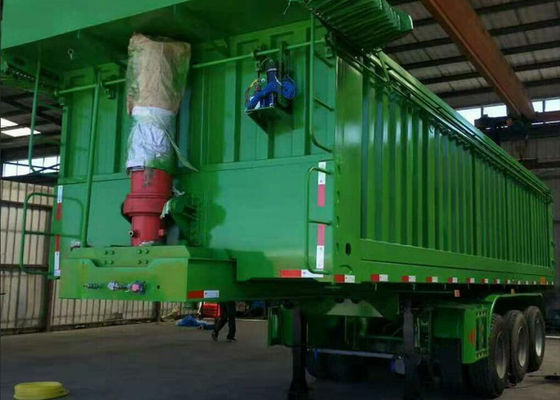

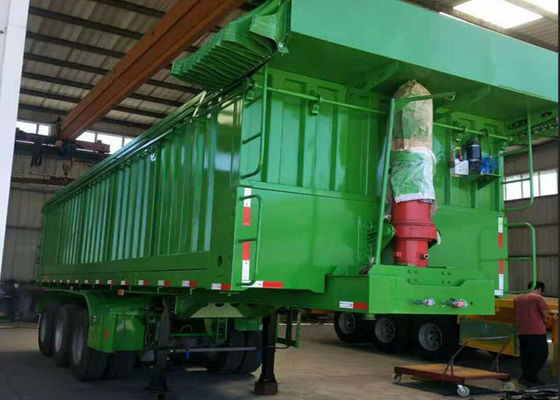

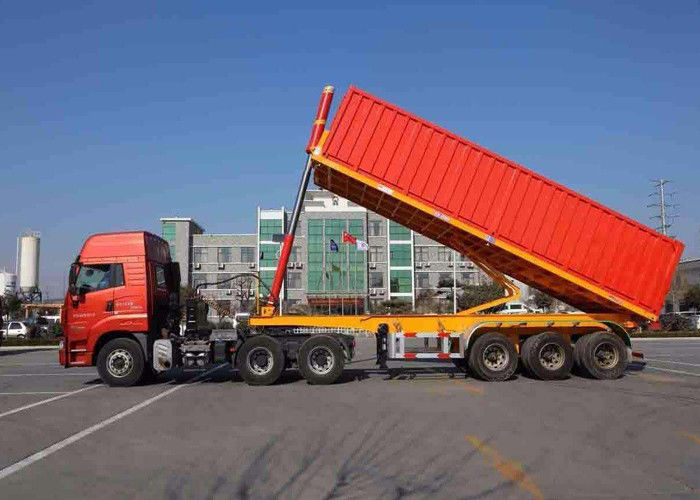

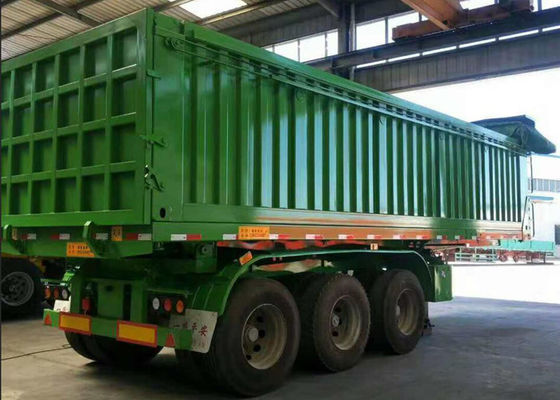

Dump Tanks Trucks And Trailers 3 Axle Tipping Rear Unloading Dump Semi Trailer 0

Dump Tanks Trucks And Trailers 3 Axle Tipping Rear Unloading Dump Semi Trailer 1

Dump Tanks Trucks And Trailers 3 Axle Tipping Rear Unloading Dump Semi Trailer 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of rear unloading tipping semi trailer I can order from your company?

A: We can supply 2 axles, 3 axles, 4 axles and 5 axles rear unlloading tipping semi trailer.

Q2: Can we adopts International brand for the key parts of this kind of container semi trailer?

A: Sure. All key part of our trailer all have International brand for optional. Such as Axles and Landing leg, we have BPW axle and JOST brand landing leg for optional.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
