3 Axle Refrigerated Semi Trailer , Meat Transport Trailer 35t - 50t With Mechanical Suspension System

Büyük resim : 3 Axle Refrigerated Semi Trailer , Meat Transport Trailer 35t - 50t With Mechanical Suspension System

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW9500RF

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, T/T
Yetenek temini:	400 Birim/Ay

İletişim

Detaylı ürün tanımı

Dingil Miktarı:	3 Hayır.	Aks markası:	FUWA/L1/Almanya markası BPW
Lastik miktarı:	Çift lastik 13No.	askıya alma:	Mekanik/hava süspansiyonu
Malzeme:	Cam elyaf	Soğutma Ünitesi:	Çin markası/Uluslararası marka
Renk:	Beyaz/Mavi/Sarı/İsteğe bağlı	Sertifika:	ISO CCC
Vurgulamak:	stainless steel tanker trailers , 4000 gallon water truck

3 Axle refrigerated semi trailer meat transport trailer 35t 40t 45t 50t refrigerator truck

Product Description

1. Purpose: It used for transporting meat, frozen fish, vegetable and vaccine etc.

2. Main parts: Refrigerating unit, suspension, Tire and axles.

3. Refrigerating unit: China brand HUATAI and Internation brand for optional.

3. Axle: Most of our customer all choose BPW or FUWA brand axle.

4. Tire: Double tire or Single tire for optional.

5. Landing leg: JOST or FUWA brand.

6. Suspension system: Mechanical suspension system is most customer's choose and some of our client will adopts air suspension system.

General Description
1	Overall Dimension	13820×2330×2410 mm
2	Curb weight	11,460 Kg
3	Rated Payload	40,000kg
4	Wheelbase (mm)	7980+1310+1310 mm
5	Tire	12-22.5 wheel rim, 12+1 pieces
Refrigerator cabinet Description
1	Material of van box	Color steel plate outside, Foam inside.
2	Thickness of cabinet	80 mm
3	Cooling capacity	4550 W
4	Volume of cabinet (m3)	40
6	Minimum temperature	-18 C (Perfect for transfer food )
Trailer
1	Axle	3 Axles, FUWA brand 13 ton,
2	Suspension	Heavy duty mechanical suspension
3	Leaf Spring	10 piece Leaf spring
4	King Pin	JOST brand 2” Bolt-in King Pin
5	Landing Gear	FUWA brand
6	Wheel Rim	13 pieces 8.25-22.5 steel wheel rim
7	Tire	13 pieces 12R22.5 tire with one spare tire.
8	Spare Tire	One set of spare tire including a carrier
9	Braking System	WABCO RE
10	Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
11	Accessories	One standard tool box

Products Show

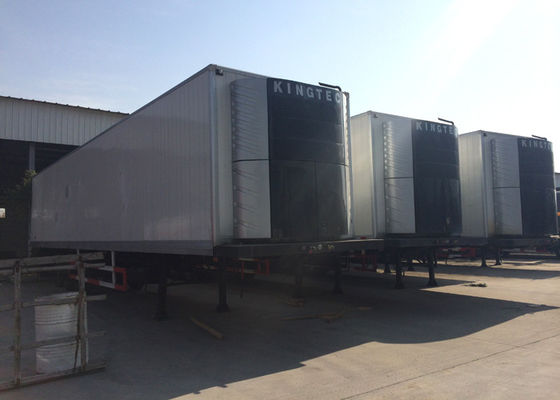

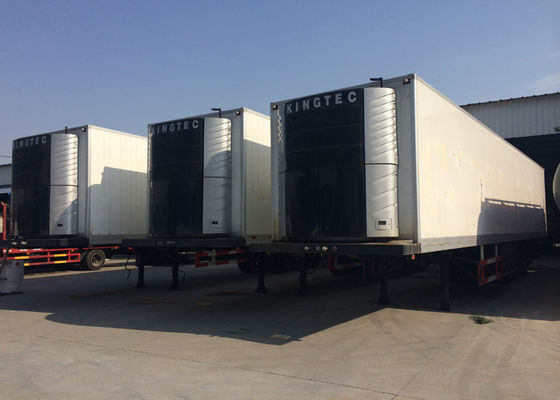

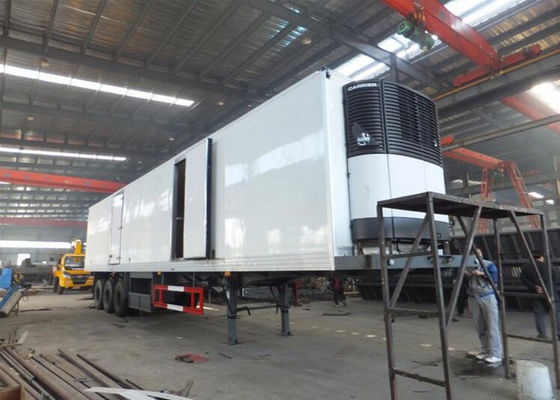

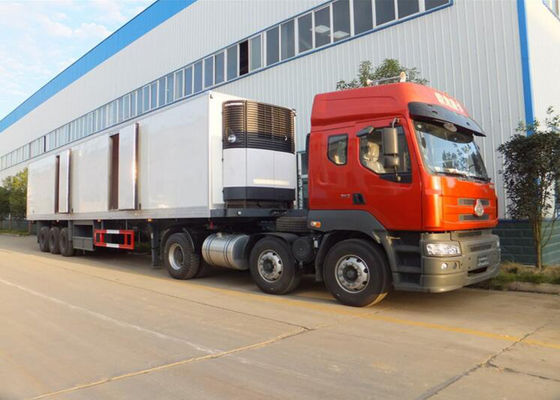

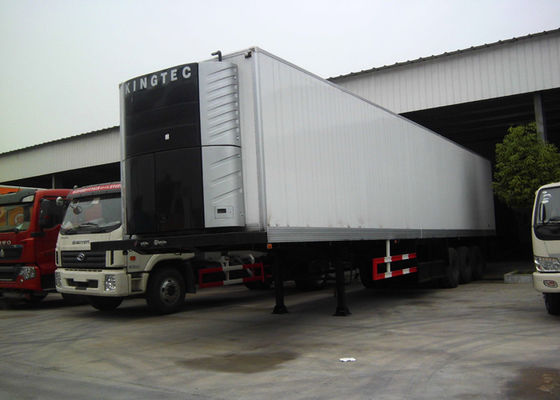

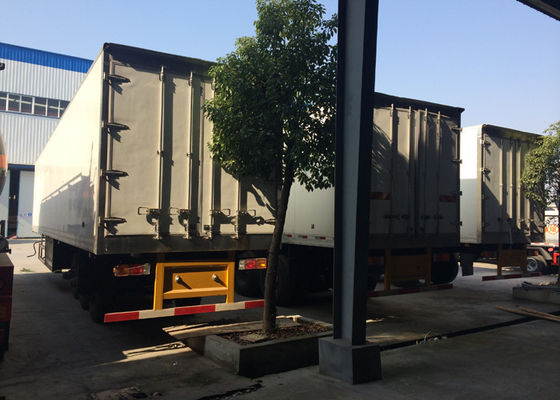

3 Axle Refrigerated Semi Trailer , Meat Transport Trailer 35t - 50t With Mechanical Suspension System 0

3 Axle Refrigerated Semi Trailer , Meat Transport Trailer 35t - 50t With Mechanical Suspension System 1

3 Axle Refrigerated Semi Trailer , Meat Transport Trailer 35t - 50t With Mechanical Suspension System 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of refrigerated semi trailer I can order from your company?

A: We can supply 2 axles and 3 axles refrigerated semi trailer.

Q2: Can we adopts International brand for the key parts of this kind of container semi trailer?

A: Sure. All key part of refrigerated trailer all have International brand for optional. Such as Refrigerating unit, Axles and Landing leg, we have USA brand Thermo King, Carrier refrigerating unit, BPT axle and JOST brand landing leg for optional.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
