16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers

Büyük resim : 16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC BV SGS ISO
Model numarası:	CLW5251

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, ro-ro, toplu gemi
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kapasite:	14t,14ton,14ton,15ton,15t,15ton,16t,16ton,16ton	Tank malzemesi:	cilalı paslanmaz çelik
Yalıtım katmanı:	üç katman	püskürtme genişliği:	4500mm
asfalt püskürtme hacmi:	0,25~3,5L/m2	Çalışma hızı:	1,5~7km/saat
Püskürtme nozullarının sayısı:	36	Tank hacmi:	5 metreküp, 5000 litre, 6 metreküp, 6000 litre
Vurgulamak:	stainless steel tanker trailers , 4000 gallon water truck

16CBM bitumen distribution truck Howo 10-wheel bitumen transport truck 16ton

Product Description

1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

2) System of 10tons bitumen distributor truck

manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15℃/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control

Specifications of asphalt sprayer Truck

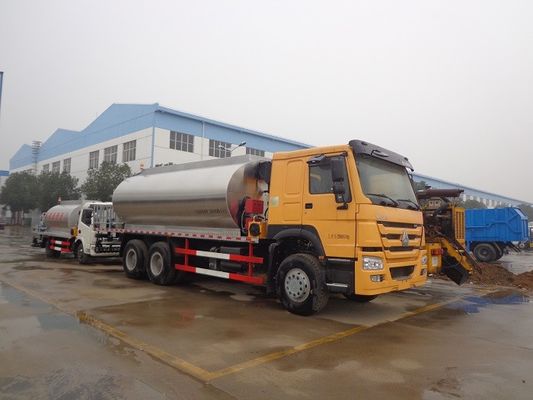

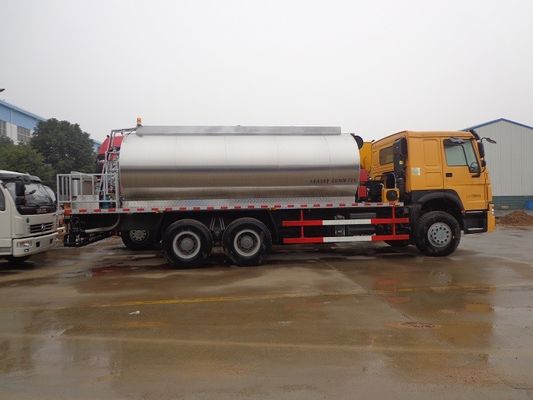

Reference Pictures of bitumen distribution truck

Item No.	Parameters
Chassis
Overall Dimension	10200x2500x3730 mm
Gross Vehicle Weight	25000 kg
Curb Weight	16000 kg
Loading Weight	8870 kg
Wheel Base	4600 +1350mm
Front/rear Tread	1500/2277 mm
Approach/Departure Angle	23/15 degree
Front Axle	7000kg
Rear Axle	13000kg
Engine	WD615.47,Weichai Diesel Engine, watering cooling, four stroke, 6 cylinder in line
Engine horsepower	371HP EURO II
Displacement	9.726L (Diesel)
Max Driving Speed	90 km/h
Cabin	HW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
Tire	12R22.5 (10 pieces+1piece spare tire)
Asphalt Tank	16cbm
Outside Material	1.2mm Stainless plate
Insulation layer	40mm rock wool insulation layer,≤20℃/8h
Asphalt pump	QGB950,950L/min
Hydraulic System
Hydraulic pump	CBQ550-L
Driving Motor	05-130-BD31(NING BO TILORMS)
Proportional Valve	EFBG-03-160-HF/Taiwan brand
Shuttle Valve	Shanxi Yuci brand
Overflow Valve	Shanxi Yuci brand
Control System
Control System	CLW-32-01/Germany STW
Control Method	Computer control
Smart asphalt nozzle	36 pcs intelligent nozzles
Temperature sensor	2 pcs from Zhejiang China
Speed sensor	2 pcs from Germany
Heating System
Heating method	Automatic heating by oil
Burner	G20/Italy brand
Radiator	RISEN brand
Heat transfer oil pump	40-25-160(Hebei province,China)
Gasoline Engine	LUTIAN brand,6kw
Spreading Width	6m
Spreading Speed	0.3~3.5L/min
Spreading Precision	±2%

16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers 0

16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers 1

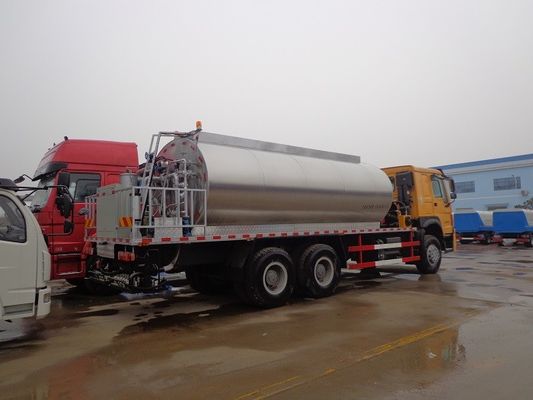

Work Scene of bitumen distribution truck

16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers 2

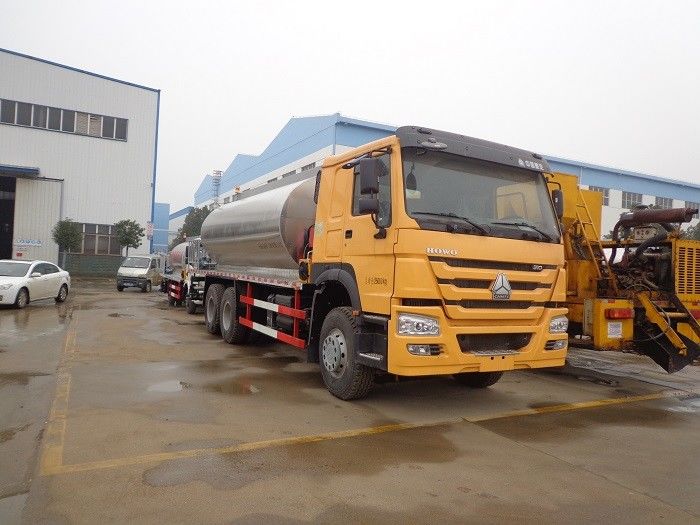

Key parts of bitumen distribution truck

16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of bitumen distribution truck I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
