20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

Büyük resim : 20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	CCC ISO ASME
Model numarası:	CLW1040

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Satış sonrası servis sağlandı:	Yedek parça temini ve mühendis desteği	Tanker hacmi:	40CBM/40000Litre/20MT/20ton
Tank malzemesi:	Q345R/SA516	Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG
Tasarım baskısı:	1.77mpa	Orta Yoğunluk:	20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
Mekanik özellik testi:	Çekme, Mukavemet, Darbe testi	Kabuk ve Uç Plakanın Kalınlığı:	10 mm
Vurgulamak:	propane storage tanks , large lpg storage tanks

Product Description

20tons completed lpg bottling plant 40cbm Skid lpg filling station with scales

1. Storage medium lpg bottling plant : LPG, Liquid ammoina and Aether etc.

2. LPG skid station capacity of lpg bottling plant: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.

3. Manufacturing standards of lpg bottling plant: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

Spec of lpg bottling plant

Volume of Tank		40CBM
Filling Weight		20000kg
Tank Weight		8630kg
Thickness of Shell (mm)		14 mm
Thickness of Endplate (mm)		14 mm
Tank Diameter (mm)		2400 mm
Tank Dimensions (mm) (length x width x height)		927024283018
External Dimensions (mm) (length x width x height)		1127026003700
Material of Tank		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50		1
Inflow Pipe	DN50		1
Outlet	DN50		1
Gas phase balance pipes	DN50		2
Manhole	DN500		1
Drain Hole	DN50		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

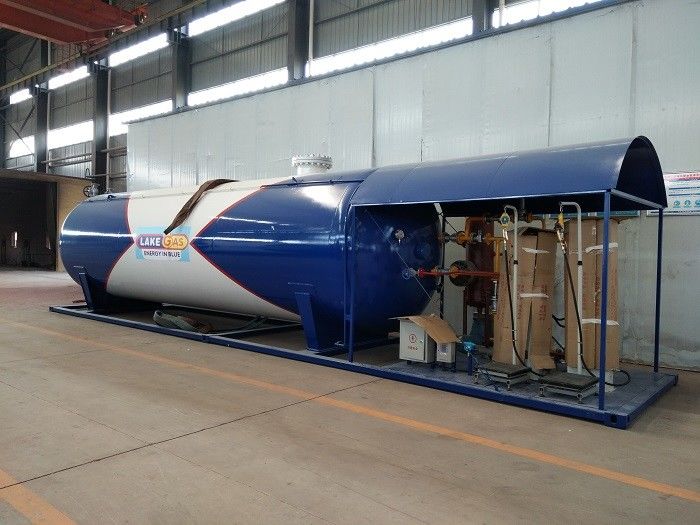

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 0

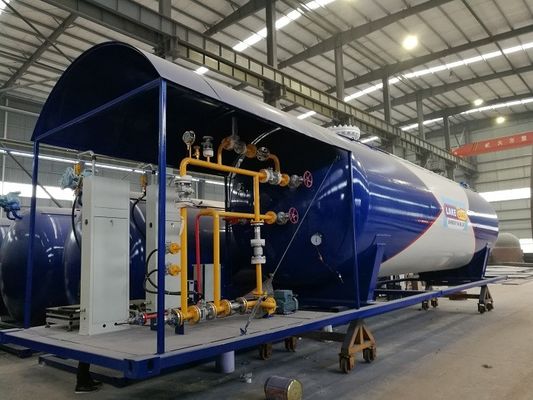

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 1

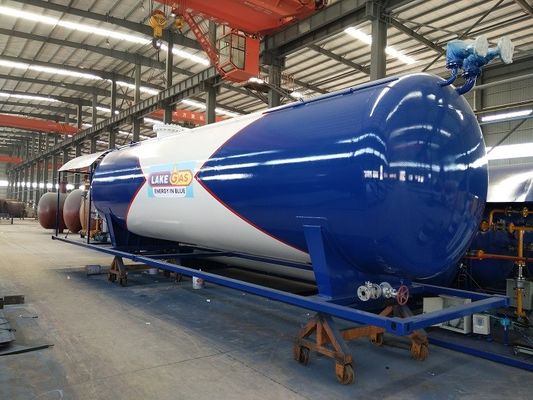

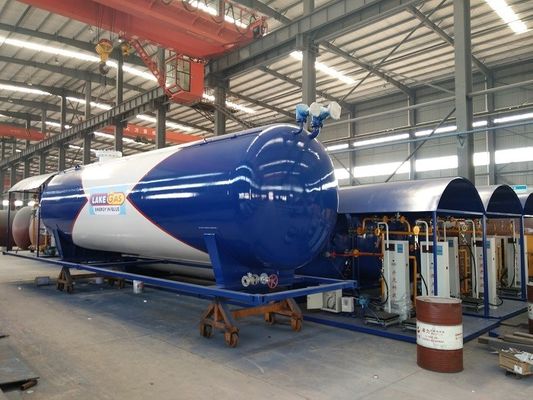

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
