Custom Made Transporting Large Propane Tanks For Gas Cylinder Filling Plant Set Up

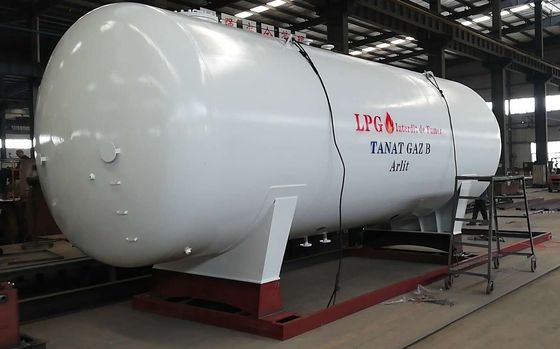

Büyük resim : Custom Made Transporting Large Propane Tanks For Gas Cylinder Filling Plant Set Up

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	ASME,CCC,SGS,BV
Model numarası:	CLW9520

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 30 gün
Ödeme koşulları:	L/C, T/T, Western Union, Moneygram, D/A, D/P
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Amaç:	Propan ve Bütan Gazı Depolama	Tanker malzemesi:	Q345R, SA516
Kalınlık:	14mm gövde, 16mm uç plakası	Tank Çapı:	DN2700mm,
Boyut Seçenekleri:	10ton, 20ton, 30ton, 40ton, 50ton,	Tasarım baskısı:	1.77Mpa / 17.7Bar veya gerektiği gibi
Tank Aksesuarları:	Emniyet Valfi, Kesme Valfi vb.	Seviye göstergesi:	Rotogage veya Megnatik Tip
Vurgulamak:	propane storage tanks , transporting large propane tanks

Gas Cylinder Filling Plant Set Up for LPG Propane Gas Storage Tank 20Ton to 60Ton

Product Description

20MT Propane Gas Station Tanks 50m3 LPG Storage Tank

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc

2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,

3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

20MT Propane Gas Station Tanks 50m3 LPG Storage Tank for cylinder filling 4 Nozzles

50CBM LPG TANK DIMENSIONS
Volume of Tank		50 CBM
Filling Weight		20000 kg
Tank Weight		10640 kg
Thickness of Shell (mm)		14 mm
Thickness of Endplate (mm)		16 mm
Tank Diameter (mm)		2700 mm
External Dimensions (mm) (length x width x height)		9180 x 2728 x 3318 mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa / 17.7 Bar
Hydraulic Test Pressure		2.10Mpa / 21.0 Bar
Corrosion Allowance		1 mm
Medium Density		500 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification		Quantity
Discharge Pipe	DN50		1
Inflow Pipe	DN50		1
Gas phase balance pipes	DN50		2
Drain Hole	DN50		1
Manhole	DN450		1
Air-out Pipe	DN50		1
Safety Valve Pipe	DN100		1
Safety Accessories(not included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge.

We can offer whole set accessories and equipments of building a completed LPG plant as follows,

LPG PUMP AND MOTOR
LPG COMPRESSOR
AIR COMPRESSOR
VOLUME/MASS FLOW METER
LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
GAS LEAKAGE DETECTOR
LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
PIPELINES
GASKETS
BOLTS AND NUTS

Custom Made Transporting Large Propane Tanks For Gas Cylinder Filling Plant Set Up 0

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
