Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two

Büyük resim : Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC SGS BV
Model numarası:	CLW5076BGP

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, ISUZU, Howo, Foton, JAC vb.	Maksimum Kaldırma Ağırlığı:	3 Ton; 4 Ton; 5Ton
Maksimum Çekme Ağırlığı:	3 Ton; 4 Ton; 5Ton	Tamirci Tipi:	Bir-Çekme-Bir, Bir-Çekme-İki
Kamyonun Genel Boyutu:	7450x2350x2440 mm	Düz Yatak Boyutu:	5800 × 2100 mm
Vinç Halatı:	21m	İp çapı:	DN12mm
Vinç Serbest Bırakma Hızı:	3,23-8 metre/dak	Garanti:	1 yıl
Vurgulamak:	heavy duty tow truck , emergency tow truck

Dongfeng 5T Wrecker Tow Truck 4*2,One-towing-Two

Product Description

1) 5Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 5tons wrecker tow truck:

Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
International Brand Sealing elements;
Strengthed Checked platform.

Product Specification

General Technical Parameters
Overall Dimension			7450x2350x2440(mm)
Gross Vehicle Weight			8275 (Kg)
Curb Weight			5110(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4*2
Cabin		Single, Right Hand Driving
Engine	Model	CY4102, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Power	88KW/120HP
	Emission standard	EUROⅢ
	Displacement	3860(ml)
	Fuel type	Diesel
Gearbox		5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System		Pneumatic(Air break/exhaust brake)
Wheel Base		3800(mm)
Front/Rear Axle Loading		2500/4500(Kg)
Approach/Departure Angle		20/10(°)
Tire		8.25-16, 6pcs + 1 spare tire
Max Driving Speed		90(km/h)

Superstructure main technical Parameters
Platform Organ	Dimension	5800*2100(mm)
	Material	Q235 carbon steel
	Platform power stroke	2680(mm)
	Min angle	7.6(°)
	Max lifting capacity	3000(kg)
Winch	Quantity	1
	Winch rating towing capacity	4000(kg)
	Length of steel rope	21(m)
	Speed of winch	3.23~8 (m/min)
	Diameter of steel cable	Φ12
Lifting Organ	Rating under-hoisting capacity	2500(kg)
	Max under-hoisting capacity	2800(kg)
	Fully extended max under-hoisting capacity	1000(kg)
	Rating under-pulling capacity	6500(kg)
Other parts	Auxiliary wheels, alarm light,hooks, 4 bundling belt, automatic sliding plate.
Options	Caution light, air condition,inlet valve.

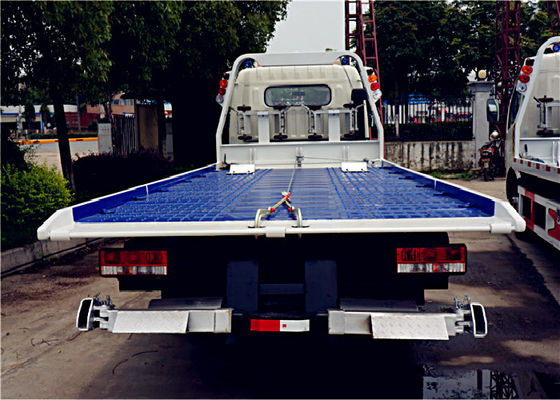

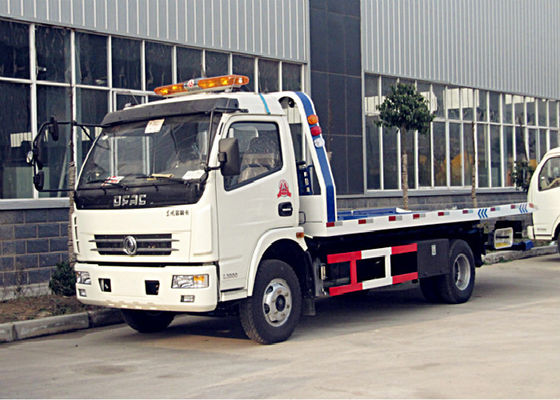

Product Show

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 0

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 1

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 2

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 3

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
