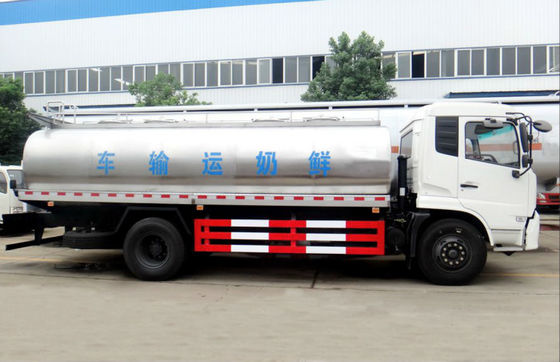

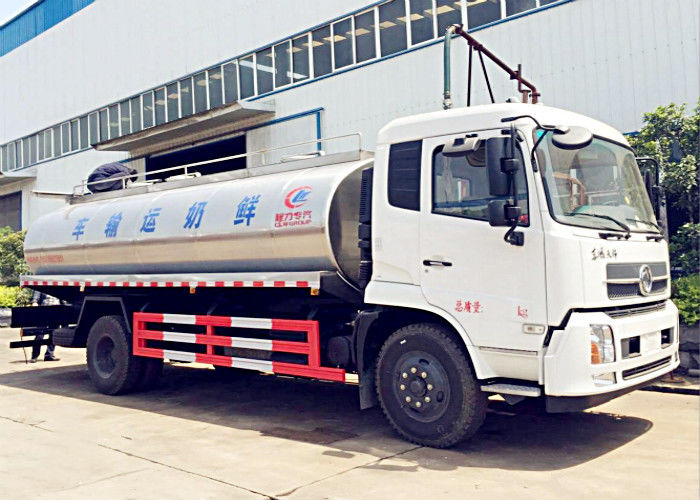

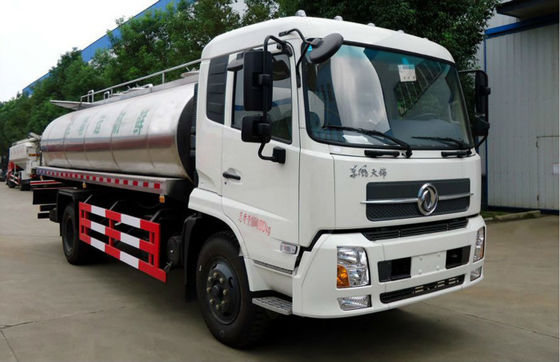

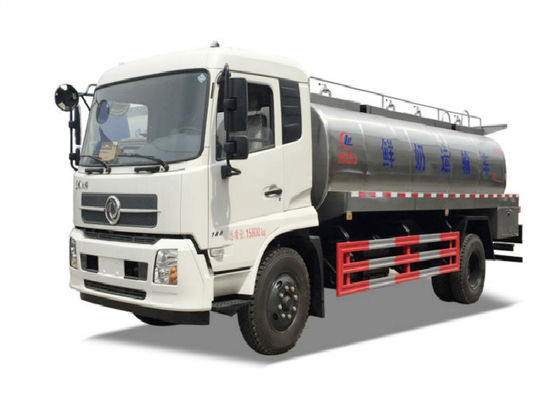

DONGFENG 10cbm Milk Tank Delivery Truck
Product Description
1) Material of milk delivery truck: milk tank is divided into three layers as follows,
A: Outside protection layer--2mm 304 stainless steel plate
B: Middle 80mm insulation PU foaming layer and ensure temperature range less than 1 ℃ in 24 hours.
C: Inner tank with food grade 304-2B stainless steel plate
All welding lines are polished and grided to ensure a bright and clean inner milk tank.
2) Milk tank of milk delivery truck can be divided into several compartments according to your request
with independent discharging outlet and loading inlet.
3) Tank of milk delivery truck is equipped with PIC automatic cleaning and washing system,360 degree rotation
4) Optional for refrigerator,flow meter,level gauge,safety lock,anti-leakage device or rock wool insulation
Product Specification
| General Technical Parameters |
| Overall Dimension |
8400X2460X3100(mm) |
| Gross Vehicle Weight |
15800(Kg) |
| Curb Weight |
7980(Kg) |
| Chassis Specification |
| Chassis Brand |
Dongfeng |
| Drive model |
4*2 |
| Cabin |
Single, Left Hand Driving, with air conditional |
| Number of Passengers |
2 |
| Engine |
Model |
B190-33, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, with ABS. |
| Power |
140KW/190HP |
| Emission standard |
EUROⅢ |
| Displacement |
5900(ml) |
| Fuel type |
Diesel |
| Gearbox |
7Forwards & 1Reverse |
| Brake System |
Air break |
| Wheel Base |
4700mm |
| Front/Rear Axle Loading |
6000/10000(Kg) |
| Springs Number |
8/10+8 |
| Overhang |
1245/2655(mm) |
| Tire |
10.00-20, 6pcs+1spare tire |
| Max Driving Speed |
85(km/h) |
| Upperstructure Specification |
| Tank Body |
External Dimension |
5700×2000×1400(mm) |
| Internal Dimension |
5500×1800×1200(mm) |
| Volume |
10CBM |
| Inside Layer |
Stainless steel 304/2B; 3-4mm |
| Middle Layer |
Polyurethane foam; 80-100mm |
| Outer Layer |
Stainless steel 304; 2mm |
| Insulation Performance |
24 hours temperature difference is no more than 1℃. |
| Other Configuration |
1. Breathing valve, manhole, discharging valve, inside ladder, cooling system, etc.
2. Each part and valve are stainless steel.
3. Each compartment has CIP Device.
|
| Options |
Compartment number |
Product Show
Milk Tank Semi-Trailer
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
