ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

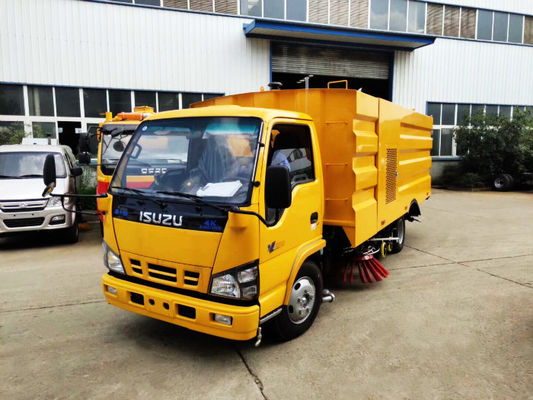

Büyük resim : ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, ÇİN
Marka adı:	CLW
Sertifika:	CCC, SGS, BV
Model numarası:	CLW5100A8G

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 birim/ay

İletişim

Detaylı ürün tanımı

MOTOR:	ISUZU 120hp	Yardımcı motor:	Cummins140HP
Su deposu:	4CBM, Paslanmaz çelik 304	Toz Tankı:	5CBM, Paslanmaz çelik 304
Süpürme Hızı:	3-20 km/saat	Maksimum Tarama Genişliği:	3.5m
Maksimum Temizleme Kapasitesi:	60000m³/saat	Motor:	Sanyo Markası
Su pompası:	Alman ithal yüksek basınçlı su pompası	Kontrol anahtarı:	Schneider Markası
Kullanım kılavuzu:	Her müşteri için 1 set	Renk:	Müşteri gereksinimlerine göre
Vurgulamak:	street sweeper vacuum truck , mechanical sweeper truck

ISUZU Road Washing&Sweeper Truck (4cbm water, 5cbm dust)

Product Description
1. Purpose: Sweeper truck can be widely used in main city road,airport road,residential area road, park,terminal, square, cement factory, power plant and etc.
2. Main parts: Stainless steel dust tank and water tank, Germany hydraulic oil pump and magnetic valve, French Schneider eletronic control switch, auxiliary engine, suction panel, sprinkler system, sweeping brush.
3. Feature: On the basis of one-key control technology, the manual throttle control system of the auxiliary engine is added, which can independently adjust the throttle size according to the road condition, effectively enhancing the cleaning effect and reducing fuel consumption.

Product Specification

General Technical Parameters
Overall Dimension				7160X2250X2750 (mm)
Gross Vehicle Weight				7300(Kg)
Curb Weight				2110(Kg)
Chassis Specification
Chassis Brand			ISUZU
Drive model			4*2
Cabin			Single Row, LHD, with air condition.
Number of Passengers			2
Engine	Model		ISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.
	Power		88KW/120HP
	Emission standard		EUROⅣ
	Displacement		2999(ml)
	Fuel type		Diesel
Gearbox			ISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering.
Brake System			Oil break
Wheel Base			3815mm
Front/Rear Axle Loading			2500/4800(Kg)
Approach/Departure Angle			24/14(°)
Overhang			Mechanical Suspension, 8/6+5
Tire			7.00R16 Steel wire tyre, 6pc with 1 spare tire
Sweeping Speed			3-20 km/h
Upperstructure Specification
Tank		Water Tank		Material	Stainless steel 304
				Volume	4(cbm)
		Dust Tank		Material	Stainless steel 304
				Volume	5(cbm)
Auxiliary Engine		Model		Cummins
		Power		140HP/103KW
Maximum sweep width				3.5m
Maximum cleaning capacity				60000m³/h
Standard Configuration		1. Equipped with 1 sweeping brush on each side, and middle suction nozzle;
		2. Equipped with Sanyo Motor;
		3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank);
		4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump;
		5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor;
		6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights;
		7. Equipped with indoor monitor in reverse and wash state;
		8. Equipped with 18 meters high pressure rinsing reel, etc.
		9. User's operation manual 1 set.
Optional Configuration		Snow shovel, foggy gun, aerial work platform, color is optional, etc.

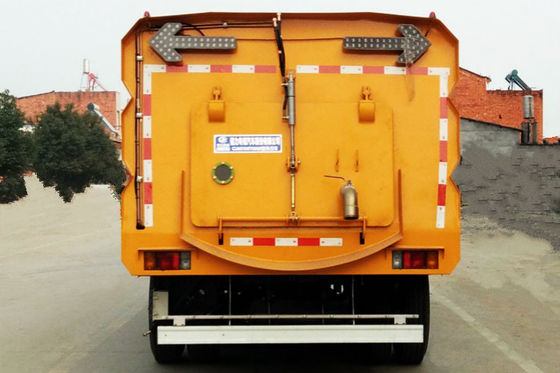

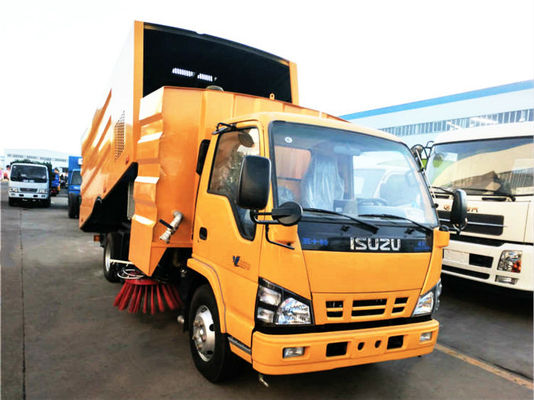

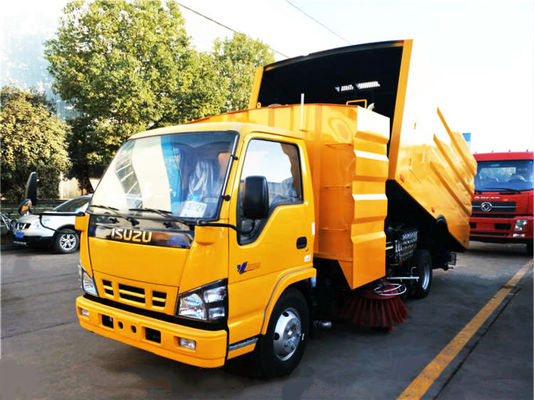

Product Show

Main Structure

Main Parts

Related Road Cleaning Truck
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust 3

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
