Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck
Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Büyük resim :  Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC, SGS, BV, DOT, GCC
Model numarası: CLW5120

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 birim/ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, ISUZU, Howo, Foton, JAC vb. Boyutlar: 5995*2200*2700mm
Motor gücü: Cummins'in 120HP'si Yardımcı motor: Cummins 77HP
Toz Tankı: 4CBM, 4cbm, vb. Paslanmaz çelik 304 Su deposu: 1,5cbm, 1,5cbm, vb. Paslanmaz çelik 304
Malzeme: Paslanmaz çelik Elle Sürüş: Soldan Direksiyonlu veya Sağdan Direksiyonlu
Operasyon: Kendiliğinden Yükleme ve Boşaltma Maks. Operasyon Yeteneği: 40000-80000 M2/saat
Max. Maks. Working Width Çalışma Genişliği: 2,8m-3,5m Renk ve logo resimleri: Müşteri gereksinimlerine göre
Garanti: 1 yıl
Vurgulamak:

4000L Dust Tanker Road Sweeper Truck

,

1500L Water Tanker Road Sweeper Truck

,

Sinotruk Howo Street Sweeper Truck

Sinotruk howo 1500liters water tanker 4000liters dust tanker road sweeper truck


Description:

1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.

2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".

Most sweepers have the option of a hydraulic powered gutter broom on one or both sides of the truck and others use the broom inside the pickup head or dust suppression systems which agitate and move debris out of the curb edges and into the path of the truck while preventing dust


Specification:

Item Parameter
Working Performance Max sweep width 3.0m
Sweep speed 3-20km/h
Max sweep capacity 60000m2/h
Max inhalation of granularity ≥110mm
Angle of unloading ≥45°
Volume of water tank 1500L
Volume of garbage tank 4000L
Driving Performance Max speed 90km/h
Max gradeability 30%
Braking distance ≤10m
Min turning diameter ≤13.6m
Fuel Performance Fuel consumption(Driving) ≤12L/100km
Fuel consumption(Sweep working at 8km/h) 6.5L/h
2.7L/10000m2
Quality Parameters Curb weight 4000kg
Rated capacity 5000kg
GVW 9000kg
Dimension Parameter Overall dimensions 5995*2200*2700mm
Wheelbase 3308mm
Track front 1504mm
Track rear 1530mm
Front suspension 1070mm
Rear suspension 1580mm
Approach angle 24°
Departure angle 13°
Minimum Ground Clearance 190mm

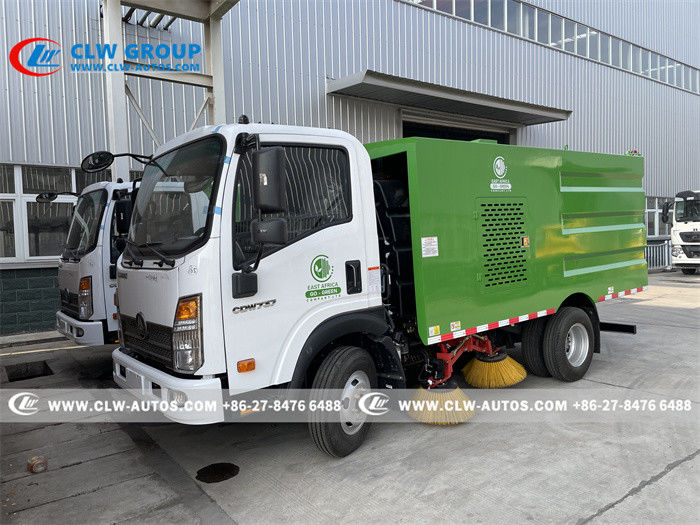

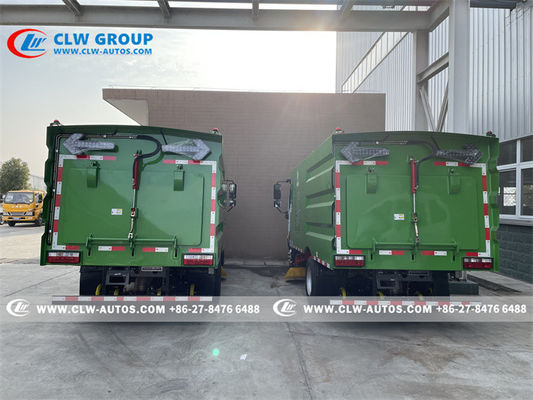

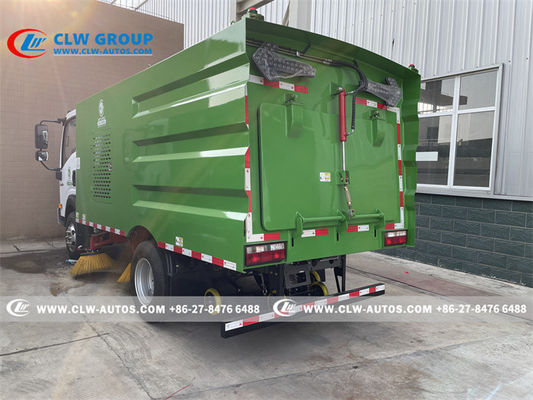

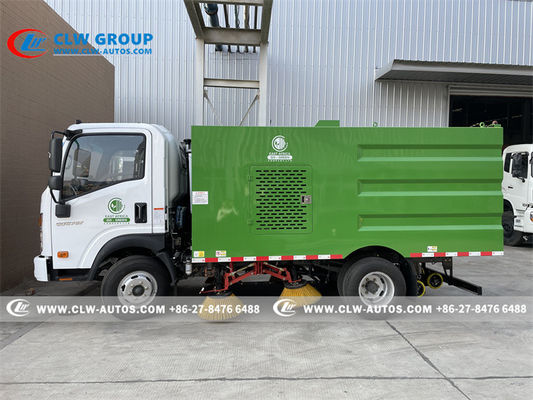

Reference Photos

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 0Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 1

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 2

Truck diagram

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 3

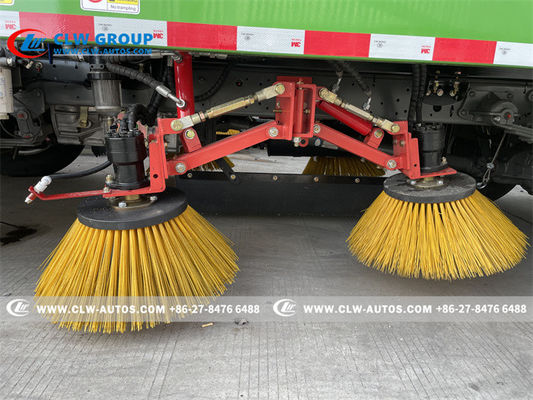

Main Details
Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 4


Working Scenario
Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck 5







Sales Service


1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ



Q1: What kinds of dust vacuum suction trucks I can order from your company?

A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.




Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
