4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine

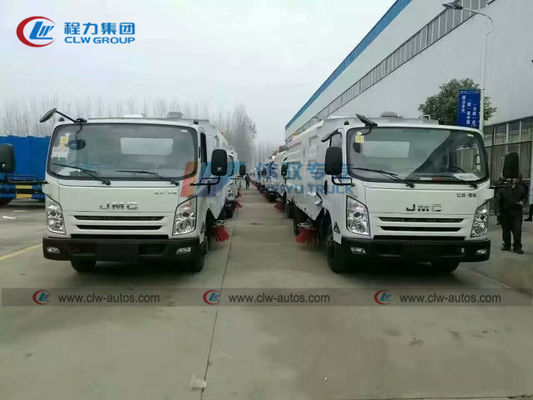

Büyük resim : 4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO9001, BV, SGS
Model numarası:	CLW541RR5

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 birim
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak mumlu
Teslim süresi:	35-40 İş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Ürün adı:	Yol Süpürme Aracı, Vakumlu Süpürme Aracı	Kamyon Şasi Markası:	JMC, DONGFENG, HOWO vb.
Çöp Kovası Kapasitesi:	İsteğe bağlı	Gövde tipi:	Vakumlu Süpürücü Süpürme Süpürme Emme
Yol Süpürme Tankı Şekli:	Yuvarlak, kare	Kamyon Tipi:	Su Dua Süpürgesi Tankı
Sürücü tipi:	Sağdan direksiyona ve soldan direksiyona	Sürücü modeli:	4X2, 4*2 6 Tekerlekli 6 Tekerlek
Temiz Su Deposu:	İsteğe bağlı	Şartname:	3000L, 4000L, 5000L, küçük boyutlar
Renk ve LOGO:	Özelleştirilmiş
Vurgulamak:	JMC Truck Mounted Street Sweeper , 8CBM Truck Mounted Street Sweeper , 142HP City Road Cleaning Machine

4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine

Product description

Best choice for road, factory, residential area sweeping & Cleaning
optional high pressure water flushing & Spraying for dust control
All function contained in 1 control panel in cabin, Easily for 1 man contorl
Stainless Water Tank & Garbage Tank for long time use
Hydraulic Controlled Brush with automatic retreating system to avoid collosion
Floating Suction Pan to adjust as per road height
Optional water spraying for dust control
Optional Music Warning System & Reverse Alarm

Condition	New condition/Left hand drive/4x2
Chassis	Curb weight(kg)			3470
	Wheelbase(mm)			3815
	Dimensions(mm)			674522202250
	Overhang (front/rear) (mm)			1150/1780
	Wheel track (front/rear) (mm)			1680/1700
	Approach/Departure angle(°)			24.8/19.6
	Axle Load(kg)			2935/5835
	Max. driving speed(km/h)			100
	Brand			JMC
	Model			JX1090TK23
	Tire		Number	6pcs with one spare tire
			Specifications	8.25-16LT,8.25R16LT
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 6 Forwards & 1 Reverse
Cab	It can accommodate three people
Engine	Model				YUCHAI YC4E140-33
	Displacement(ml)				4260
	Power(kw)/Horsepower(HP)				105/142
	Emission standard				Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Upper
Tank	Garbage tank	Tank material			Stainless steel 304
		Tank volume(cbm)			5cbm
	Water tank	Tank material			Stainless steel 304
		Tank volume(cbm)			2.5cbm
Auxiliary engine	Model	JMC
	Power(kw)	56kw
Brush	Quantity(pc)	4 pcs
	Working area(m)	3.0-3.5m
Remarks	1, With water spray-bar 2, Rear vacuum cleaner 3, Blower 4, Color is optional
Optional	1, Front and rear water spray-bar 2, Visual imaging system 3, Front hydraulic cleaning brush

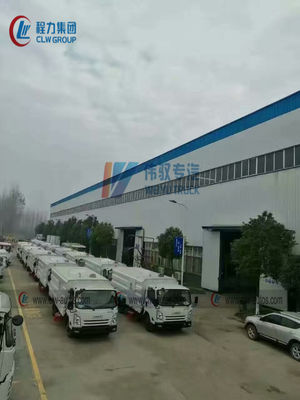

Our Factory

4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine 0

4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine 1

ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
