HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerTanker Kamyonlar ve Römorklar

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck
HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck

Büyük resim :  HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC,BV,SGS,ISO
Model numarası: CLW5088ACS

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, ro-ro, toplu gemi
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 birim/ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Foton, Sinotruk HOWO, Isuzu vb. Tekerlek tabanı: 4600+1350mm
asfalt tankı: 8cbm, 8m3, 8 Metreküp Çakıl Tankı: 12cbm, 12m3, 12 Metreküp
Bitüm Pompası: Çin Markası / İsteğe Bağlı Uluslararası Marka Hidrolik motor: Çin Markası / İsteğe Bağlı Uluslararası Marka
Asfalt Nozulu: 32pcs Brülör: İtalyan Markası
Isı Yağ Pompası: Çin Markası / İsteğe Bağlı Uluslararası Marka Kızgın Yağ Motoru: Çin Markası / İsteğe Bağlı Uluslararası Marka
Püskürtme genişliği: 4m Serpilme kapasitesi: 0.2-4.0kg/M2
logo veya desen: Müşterinin talebine göre Kullanım Kılavuzu: Her Müşteriye 1 Takım
Vurgulamak:

stainless steel tanker trailers

,

4000 gallon water truck

Howo 6*4 Road Construction Bitumen Tank and Gravel Synchronous Slurry Seal Chip Sealer Truck

Product Description

1. Synchronous gravel sealing layer is a special equipment that is synchronous gravel sealing and bonding materials (modified emulsified asphalt) simultaneously spread on the road, and is rolling through the formation of a single natural asphalt Crushed stone wear layer. It is mainly used as a pavement layer, also can be used for low-grade road surface layer.
2. Synchronous gravel sealing technology is the biggest advantage of simultaneous sprinkling of adhesive materials and stone, to achieve high temperature sprayed onto the road surface without the temperature under the conditions of gravel combined with the immediate effect, so as to ensure that the binder and stone Between the firm bond.
3. Synchronous gravel seal has good anti-skidding performance and seepage-proof performance, which can effectively cure diseases such as lean oil, grain falling, slight net cracking, rutting and subsidence, and it is mainly used for the preventive maintenance and corrective maintenance of roads, as well as to improve the anti-skid performance of high-grade pavement, and both the highway or ordinary highway can use this conservation of new technologies.

Product Specification

Chassis model HOWO 380HP
Overall dimensions mm 10200*2500*3563
Wheel base 4600+1350
Fact cubage m3 Asphalt tank 8m3
Gravel tank 12m3
curb weight kg 17370
GVW 25000
Engine Power 280KW
Displacement 4750mL
Torque N.m
Max speed km/h 90
Tire specification 10.00R20 Drive seat LHD
Electric system 24v transmission 10speed
Color Identify by customer
Equipment
bitumen pump QGB950,680L/MIN
Motor 05-130-BD31
Proportional valve taiwan EFBG-03-160-HF
Control Simens CLW32-01,by computer
Asphalt nozzle 32nos
burner G20 from Italy
Heat oil pump 10-25-160
motor 5.5KW petrol
Spray width 4M
Spray capacity 0.2-4.0kg/m2

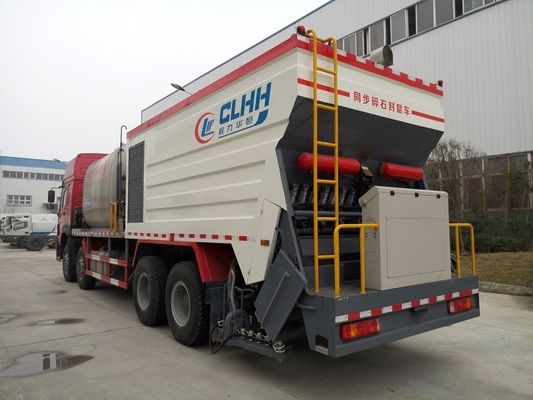

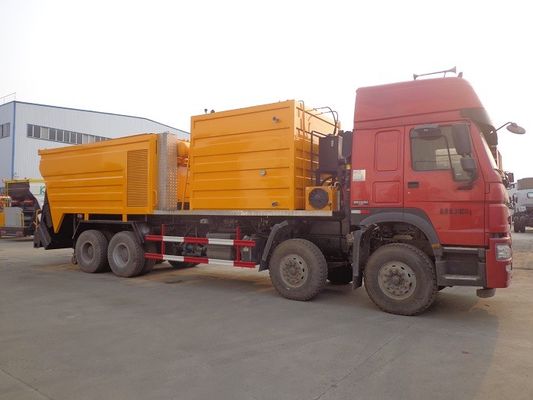

Reference Photos

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck 0

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck 1

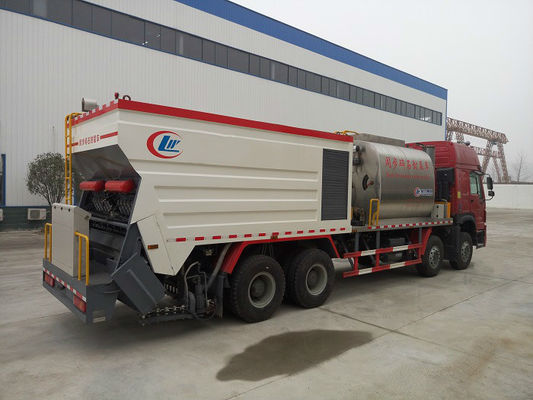

Main Structure Diagram

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck 2

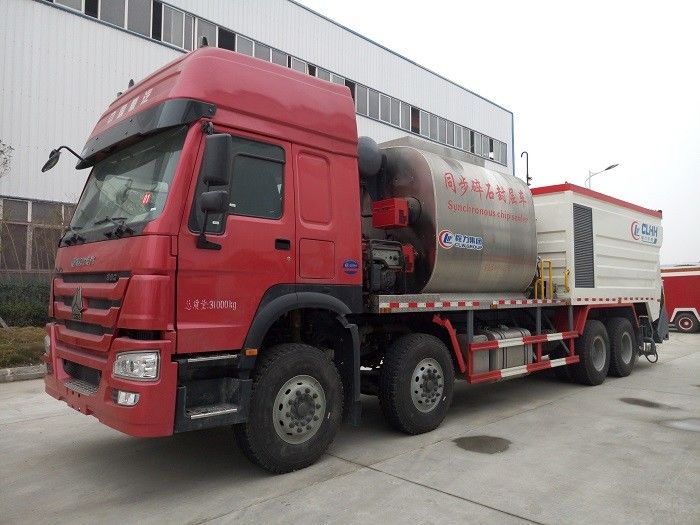

Working Scene

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck 3

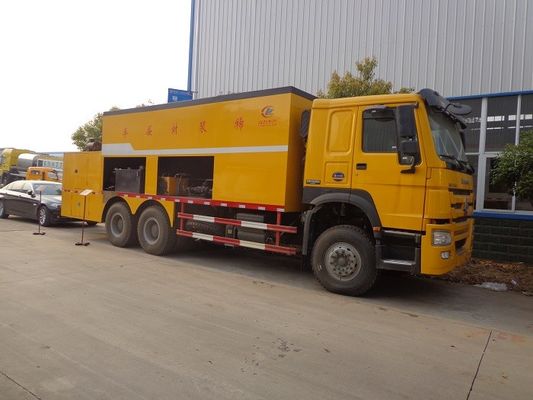

Delivery and Shipment

HOWO Road Construction Bitumen Tank And Gravel Synchronous Slurry Seal Chip Sealer Truck 4



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of road construction truck I can order from your company?

A: We can supply various sizes of road construction truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.



Q2: What is your production standard of road construction truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.



Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
