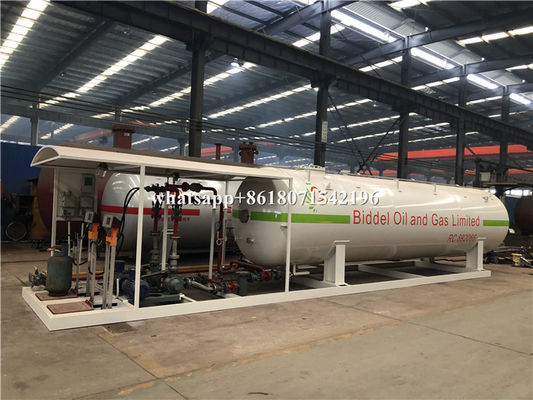

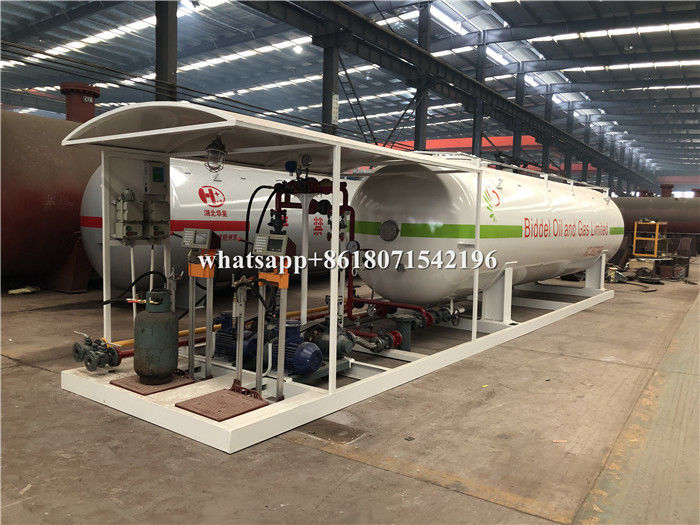

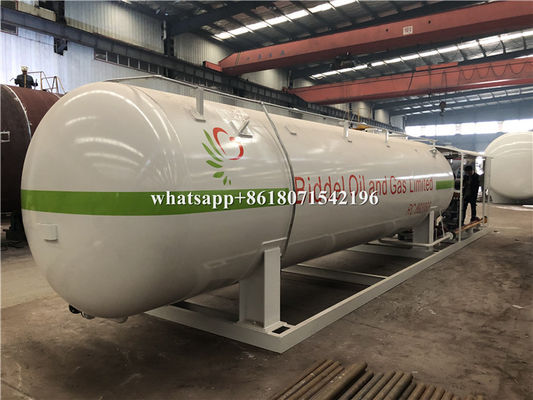

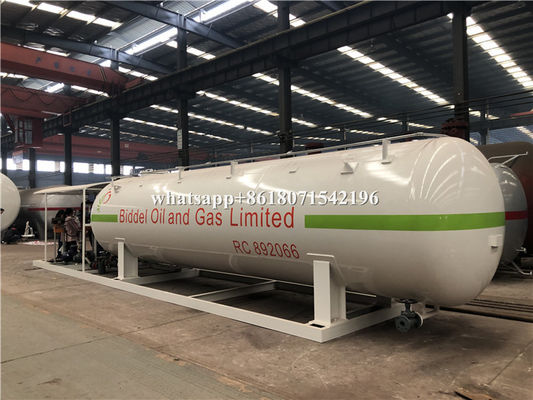

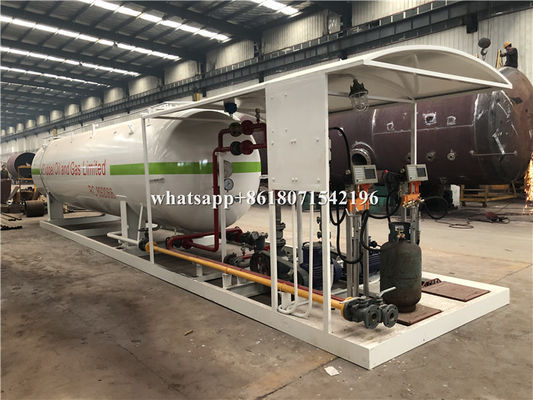

10 Tons Transporting Large Propane Tanks New Condition Gas Mobile Filling Station

Büyük resim : 10 Tons Transporting Large Propane Tanks New Condition Gas Mobile Filling Station

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC ISO ASME
Model numarası:	CLW9603

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, Western Union, MoneyGram
Yetenek temini:	200 adet/ay

İletişim

Detaylı ürün tanımı

Malzeme:	Q345R/Q370R/ASME Karbon Çelik	Durum:	YENİ
Tasarım:	1.71 MPa	Hidrolik test basıncı:	2,21 MPa 22,1 bar
Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG	Hacim:	10ton,10mt,20cbm,20m3
Pompa markası:	Corken, Blackmer, Çin Markası	Korozyon ödeneği:	1 mm
Renk:	Özelleştirilmiş logo	Yaşam süresi:	20 yıl
Vurgulamak:	transporting large propane tanks , large lpg storage tanks

Nigeria 10tons LPG Gas Cylinder Bottling Skid Station 10mt Gas Mobile Filling Station

Product Description
1. mobile filling station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump

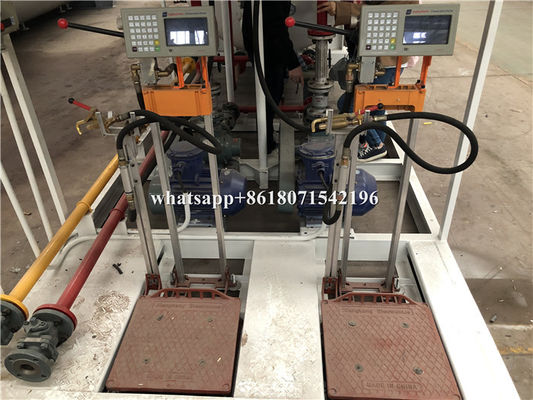

3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of mobile filling station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of mobile filling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline of mobile filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment of mobile filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system
Technical Specifications

Specification of 10tons 20000L mobile filling station
Volume of Tank	20CBM(20,000liters) 10ton
Filling weight(Kg)	10000
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	1800 mm
Tank Dimensions (mm) (length x width x height)	8174X1840X2410mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel
