60CBM LPG Gas Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank

Büyük resim : 60CBM LPG Gas Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CLW9522
Model numarası:	ASME,CCC,SGS,BV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Boyut Seçeneği:	10mt,15mt,20mt,30mt,40mt,50mt,60mt,	Doldurma Aracı:	Propan, bütan
Tank Çapı:	DN2700mm	Seviye göstergesi:	Rotogage veya Megnatik Tip
Tank Vanaları:	Kesme Vanası, İğne Vana, Emniyet Ventili, Geri Dönüş Vanası vb.	Garanti:	Bir yıl
Şekil:	Evet	Kabuk kalınlığı:	14 mm
Uç Kalınlığı:	16 mm	Kullanım:	LPG Gaz Depolama, İstasyon Tankı
Vurgulamak:	transporting large propane tanks , large lpg storage tanks

60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station

We have special QC department, testing every single truck, our workers will inspect strictly in order to supply the best and most stable equipment for customers.

Customers' satisfaction is our pursuit, please rest assured that you will get the most satisfied equipment from our company.

Specification of 30mt filling station gas tank

Parameter of 60000liters 30tons filling station gas tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		60cbm	Thickness of Shell		14mm
Tank Material		Q345R	Thickness of End plate		16mm
Overall Size		1096227283318mm	Tank Net Weight		12750kg
Tank Diameter		2700mm	Loading Capacity		23940kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20ºC~60ºC	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-100	Stop Valve DN100			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-100	Safety Valve DN100			1		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40ºC~60ºC

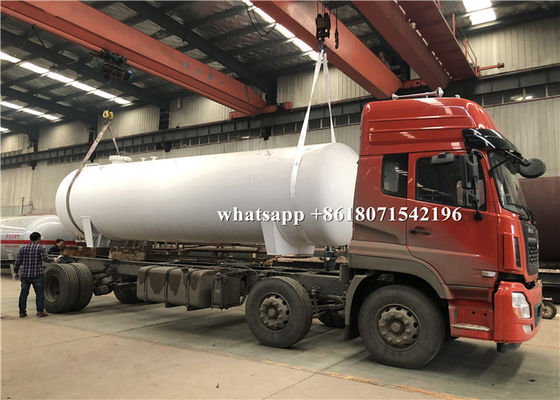

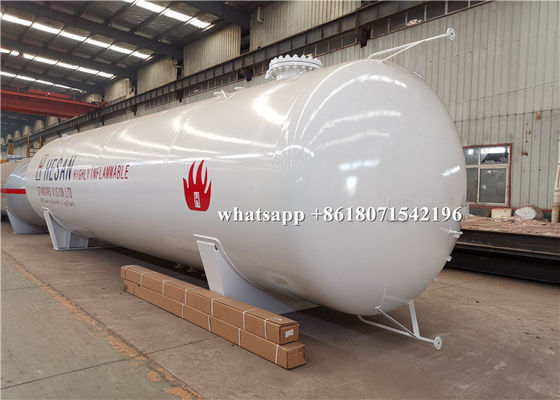

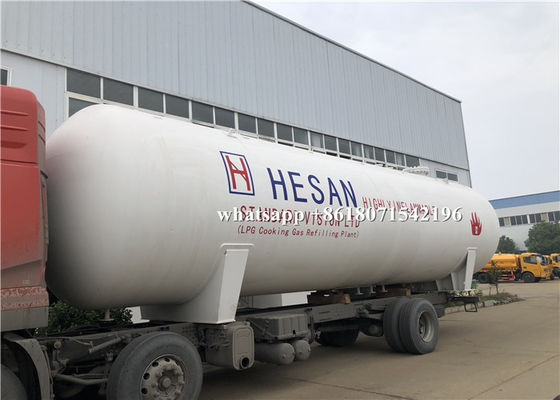

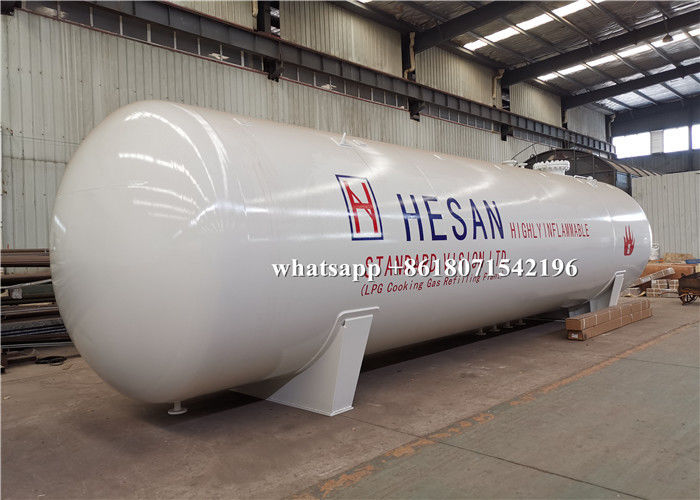

60CBM LPG Gas Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank 0

60CBM LPG Gas Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank 1

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
