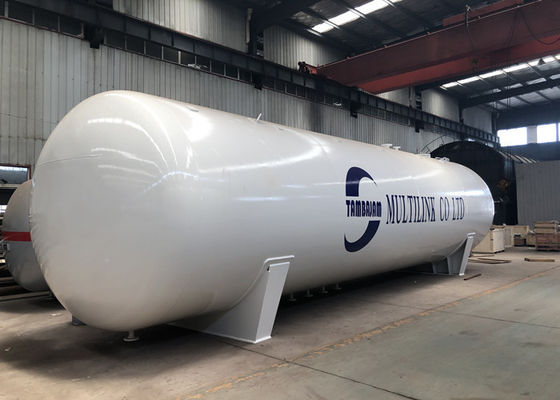

White 60000 Litres LPG Truck Tanker , Large Propane Gas Tanks Long Life Time

Büyük resim : White 60000 Litres LPG Truck Tanker , Large Propane Gas Tanks Long Life Time

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, ASME
Model numarası:	CLW1301

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20-30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Tanker malzemesi:	Q345R, Q370R, SA516Gr70 vb.	Tank hacmi:	5cbm-200cbm, Genellikle 50m³,60m³,80m³,100m³,120m³, Vb
Tasarım Sıcaklığı:	-20 ℃ ~ 50 ℃	Renk ve logo:	Müşterinin talebine göre
Yaşam süresi:	20 yıl	Tank kapasitesi:	2ton-100ton; Genellikle 20ton,30ton,40ton,50ton,60ton, vb.
Genel boyut:	1096227283318mm	Tankın Amacı:	LPG Gaz Depolama, İstasyon Tankı
Seviye göstergesi:	Meganatik Tip	Şekil:	Evet
Vurgulamak:	transporting large propane tanks , large lpg storage tanks

60000 Litres LPG Station 60cbm Bulk Gas Storage ASME Stamp Tanker

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Reasonable price and good quality
Quick delivery and shipment

Technical Specification
Item	Name		Unit	Parameter
1	Product model		/	LPG storage tank
2	Vessel type		/	On the ground
3	Tank Volume		m3	60
4	Filling medium		/	LPG / propane gas
5	Filling coefficient		Kg/ m³	420
6	Tanker material		/	Q345R
7	Overall dimension		mm	1096227283318
8	Tank inner diameter		mm	2700
9	Thickness	End plates	mm	16
9	Thickness	Shell body	mm	14
10	Curb weight		kg	12750
11	Filling medium weight		kg	23940
12	Corrosion allowance		mm	1
13	design pressure		Mpa	1.71
14	Hydrostatic test pressure		MPa	2.22
15	Designing temperature		°C	-19~50
16	Produce Manufacturing standards		/	GB150-20
17	Certification		/	ISO 9001-2015

Production process control			1. Steel Plate Cutting &Rolling
			2. Tanker Body Welding
			3. X-ray Welding Seam Detection
			4. Whole Tanker Heat Treatment
			5. Rust, Sand Blasting, Puttying
			6. Water Pressure Test
			7. Painting: primer, finish, lacquer

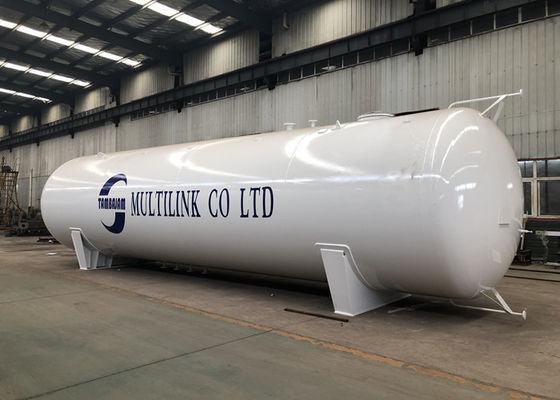

White 60000 Litres LPG Truck Tanker , Large Propane Gas Tanks Long Life Time 0

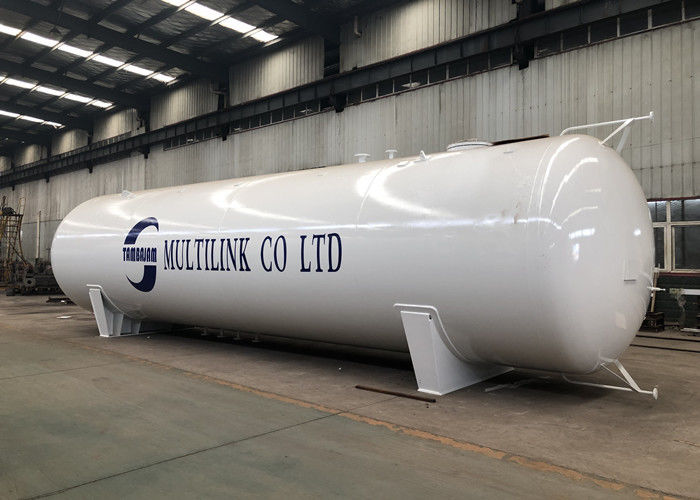

White 60000 Litres LPG Truck Tanker , Large Propane Gas Tanks Long Life Time 1

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
