80000 Litres Liquefied Petroleum Large LPG Storage Tanks 1116631323722mm Overall

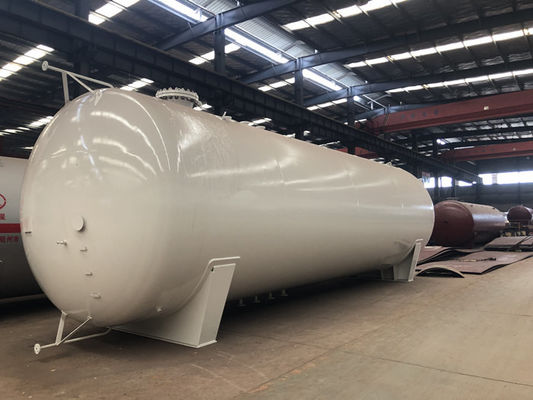

Büyük resim : 80000 Litres Liquefied Petroleum Large LPG Storage Tanks 11166*3132*3722mm Overall

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, ASME
Model numarası:	CLW1401

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20-30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Tankın Amacı:	LPG Gaz Depolama, İstasyon Tankı	Tank hacmi:	5cbm-200cbm, Genellikle 50m³,60m³,80m³,100m³,120m³, Vb
Tank kapasitesi:	2ton-100ton; Genellikle 20ton,30ton,40ton,50ton,60ton, vb.	Tanker malzemesi:	Q345R, Q370R, SA516Gr70 vb.
Renk ve logo:	Müşterinin talebine göre	Yaşam süresi:	20 yıl
Tasarım Sıcaklığı:	-20 ℃ ~ 50 ℃	Genel boyut:	1116631323722mm
Seviye göstergesi:	Meganatik Tip	Şekil:	Evet
Vurgulamak:	transporting large propane tanks , large lpg storage tanks

Factory 80000litres Liquefied Petroleum Gas Tank 40 Metric Tons Propane Tanker

Product Description

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Technical Specification
Item	Name		Unit	Parameter
1	Product model		/	LPG storage tank
2	Vessel type		/	On the ground
3	Tank Volume		m3	80
4	Filling medium		/	LPG / propane gas
5	Filling coefficient		Kg/ m³	420
6	Tanker material		/	ASME SA516Gr70
7	Overall dimension		mm	1116631323722
8	Tank inner diameter		mm	3100
9	Thickness	End plates	mm	18
9	Thickness	Shell body	mm	16
10	Curb weight		kg	17000
11	Filling medium weight		kg	31920
12	Corrosion allowance		mm	1
13	design pressure		Mpa	1.71
14	Hydrostatic test pressure		MPa	2.22
15	Designing temperature		°C	-19~50
16	Produce Manufacturing standards		/	GB150-20
17	Certification		/	ISO 9001-2015

Production process control			1. Steel Plate Cutting &Rolling
			2. Tanker Body Welding
			3. X-ray Welding Seam Detection
			4. Whole Tanker Heat Treatment
			5. Rust, Sand Blasting, Puttying
			6. Water Pressure Test
			7. Painting: primer, finish, lacquer

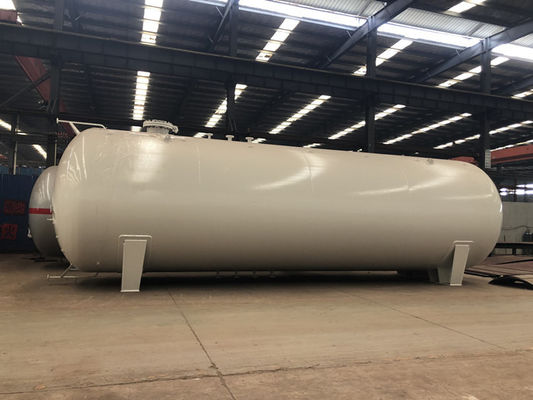

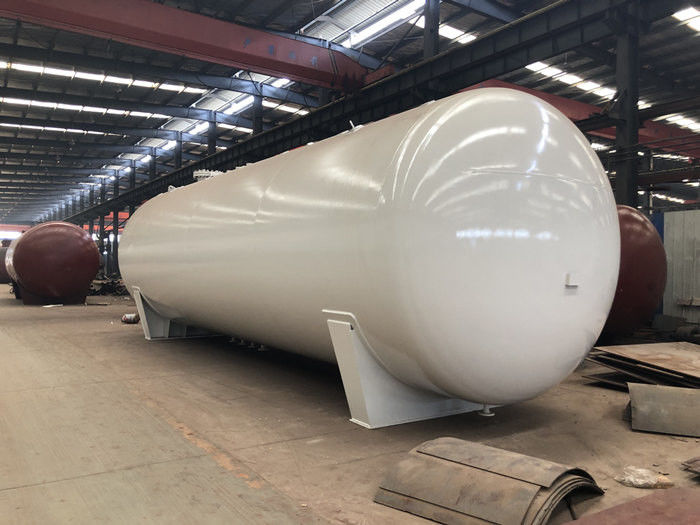

80000 Litres Liquefied Petroleum Large LPG Storage Tanks 11166*3132*3722mm Overall 0

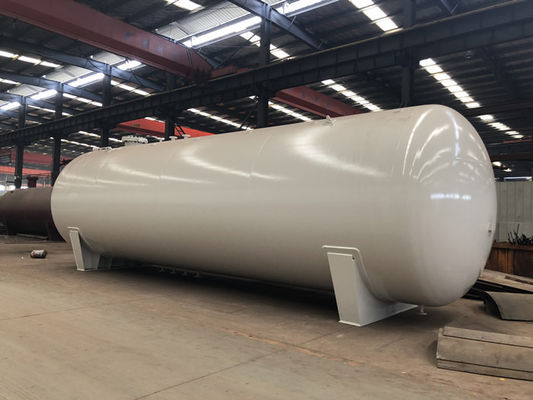

80000 Litres Liquefied Petroleum Large LPG Storage Tanks 11166*3132*3722mm Overall 1

Our Service

Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
