30000L Mobile Filling LPG Gas Storage Tank 1.71Mpa Design With 2 Filling Dispenser

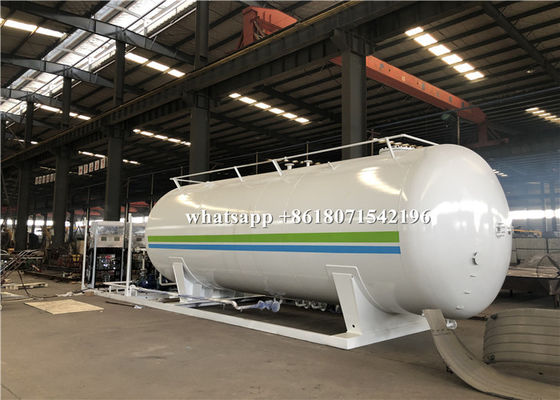

Büyük resim : 30000L Mobile Filling LPG Gas Storage Tank 1.71Mpa Design With 2 Filling Dispenser

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC ISO ASME
Model numarası:	CLW9603

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, Western Union, MoneyGram
Yetenek temini:	200 adet/ay

İletişim

Detaylı ürün tanımı

Durum:	YENİ	Tasarım:	1.71 MPa
Hidrolik test basıncı:	2,21 MPa 22,1 bar	Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG
Pompa markası:	Corken, Blackmer, Çin Markası	Renk:	Özelleştirilmiş logo
Yaşam süresi:	20 yıl	Garanti:	1 yıl
Vurgulamak:	transporting large propane tanks , large lpg storage tanks

LPG Cooking Gas Cylinder Plant 30000L LPG Mobile Filling Station 30cbm LPG Skid Station with 2 Filling Dispenser

Product Description
1. Motor of mobile filling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
2. Pipeline of mobile filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
3. Explosive Proof Central Control Panel for whole station system
4. Other Equipment of mobile filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system
Technical Specifications

Specification of 15tons 30000L mobile gas station
Volume of Tank	30CBM(30,000liters) 15ton
Filling weight(Kg)	15000
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	1800 mm
Tank Dimensions (mm) (length x width x height)	as designed
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

Detail Photos

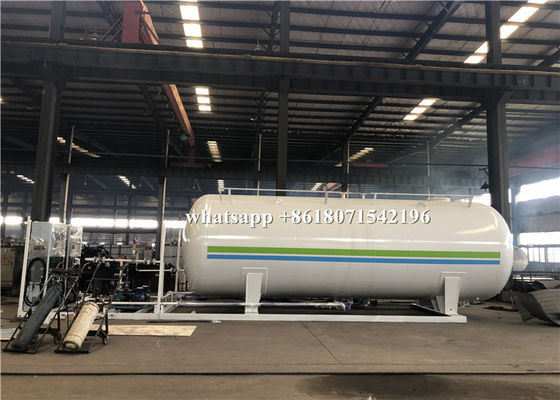

30000L Mobile Filling LPG Gas Storage Tank 1.71Mpa Design With 2 Filling Dispenser 0

Successful cases

Our Service

Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
