Small Size Mechanical Sweeper Truck 2600mm Wheelbase For City Sanitation

Büyük resim : Small Size Mechanical Sweeper Truck 2600mm Wheelbase For City Sanitation

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW50749

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paketleme
Teslim süresi:	Peşin ödeme alındıktan sonra 30-35 gün
Ödeme koşulları:	T/T, L/C
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

Malzeme:	Paslanmaz Çelik 304	Yardımcı motor:	ISUZU Markası
Fan:	Bakım Ücretsiz	Fırçalar:	4 tane
İşletim Videoları:	Evet	Kullanım:	Şehir Sanitasyonu
Renk:	Müşteri isteğine göre özelleştirilmiş LOGO boyama	Garanti:	1 yıl
Vurgulamak:	street sweeper vacuum truck , mechanical sweeper truck

Small Street Cleaner Sweeping Vehicle Road Sweeper Truck Mobile Cleaning Tanker Truck

Product Description

1. Purpose: Sweeper truck,also named as road cleaning truck is a new high-efficient sweeping equipment which has multi-functions like road washing,sprinkling,garbage collecting and transportation...Sweeper truck can be widely used in main city road,airport road,residential area road,park,terminal,square,cement factory,power plant and etc.

2. Main parts: stainless garbage bin,water tank,Italy hydraulic oil pump,germany magnetic valve,french Schneider eletronic control unit,auxiliary engine,suction panel,sprinkler system,brush

Specifications of 2CBM Changan Road Sweeper Truck

2CBM Road Sweeper Truck
Condition	New condition/Right hand drive/4x2
Chassis	Brand			Changan
	Curb weight(kg)			2300kg
	Wheelbase(mm)			2600 mm
	Dimensions(mm)			4650 x 1750 x 2250 mm
	Overhang (front/rear) (mm)			1032 / 1868
	Wheel track (front/rear) (mm)			1506 / 1404
	Approach/Departure angle(°)			19/12
	Axle Load(kg)			1500/2000
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		165R14
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cabin	Left Hand Driving, 2 Passenger Allowed, with A/C
Engine	Model				Diesel Engine, 4 Cylinders
	Power(kw)/Horsepower(HP)				65 kw/88 HP
	Emission standard				Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		1.5 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		0.5 CBM
Auxiliary engine	Model		ISUZU Engine 77HP
	Power(kw)		28 kw
Brush	Quantity(pc)		4 pcs
	Working area(m)		2.7-2.8 m
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

Details

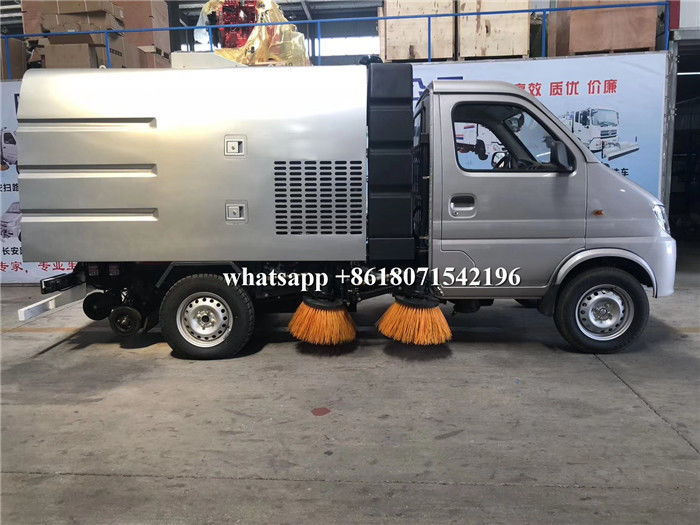

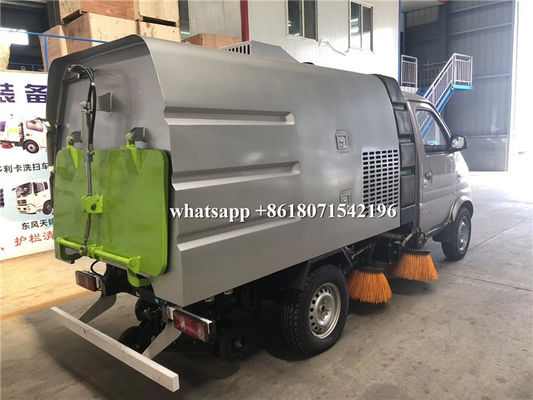

Small Size Mechanical Sweeper Truck 2600mm Wheelbase For City Sanitation 0

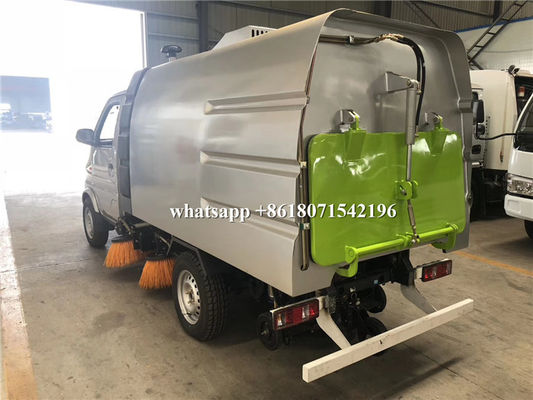

Small Size Mechanical Sweeper Truck 2600mm Wheelbase For City Sanitation 1

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
