0.5Ton-1Ton Forland Refrigerator Van Truck for small capacity Frozen Food Transport Truck
Product Description
1. Purpose of fFreezer Delivery Truck 1ton : It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of Freezer Delivery Truck 1ton: Refrigerating unit and control system.
3. Features of Freezer Delivery Truck 1ton: International chassis brand and International refrigerating unit brand for optional.
Spec of 0.5Ton-1Ton Forland Refrigerator Van Truck
| Forland Chassis Specification |
| Item No. |
Parameters |
| Overall Dimension |
4520x1600x2400 mm |
| Gross Vehicle Weight |
3350 kg |
| Curb Weight |
1850 kg |
| Loading Weight |
1500 Kg |
| Wheel Base |
2600 mm |
| Front/rear Tread |
1260/1340 mm |
| Approach/Departure Angle |
12/22 degree |
| Front Axle |
1450 kg |
| Rear Axle |
2170 kg |
| Cabin |
2 Passenger allowed, Left Hand Driving, with Air Conditioner |
| Engine |
Quanchai Diesel Engine, 4 in-line cylinder |
| Engine horsepower |
40 HP EURO II |
| Displacement |
1.600 L (Diesel) |
| Gearbox |
5 Foward & 1 Reverse |
|
Full loading Fuel
Consumption Rate
|
Maximum 215 g/kW.h |
| Max Driving Speed |
90 km/h |
| Tire |
6.00-13 LT (7 pieces) |
| Van Body |
| Size: |
2600x1450x1500 mm / 5.7CBM |
| Body Material |
Strong Fiberglass Inner and Outer Wall,
with 6cm Middle Polyfoam Insulation.
|
| Refrigerator |
High Quality Hanxue Refrigerator, Lowest Cooling Temperature -18 centi-degree. |
| LOGO |
Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |

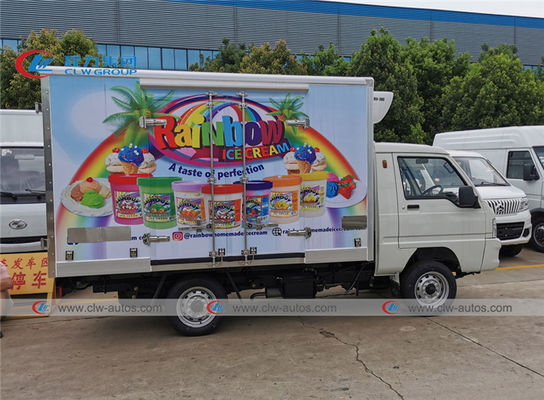

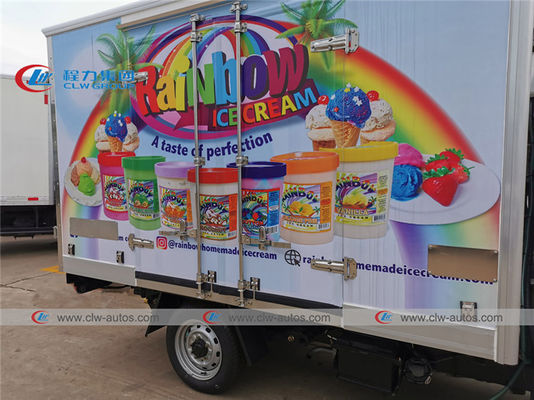

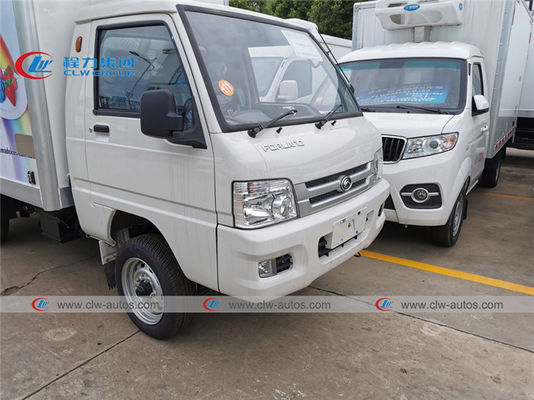

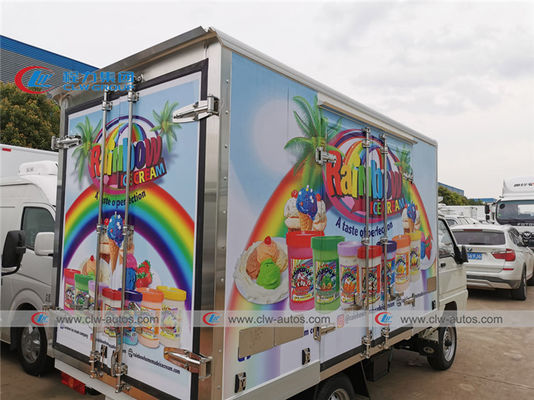

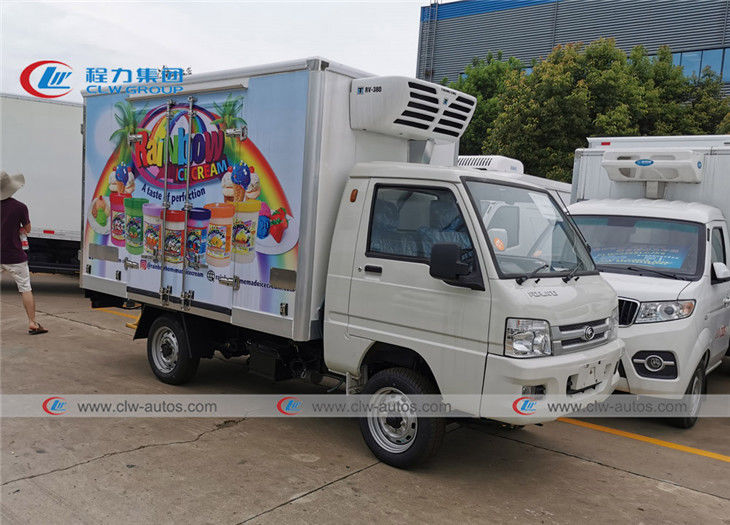

Products Show
Main Structure of Freezer Delivery Truck 1ton
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel

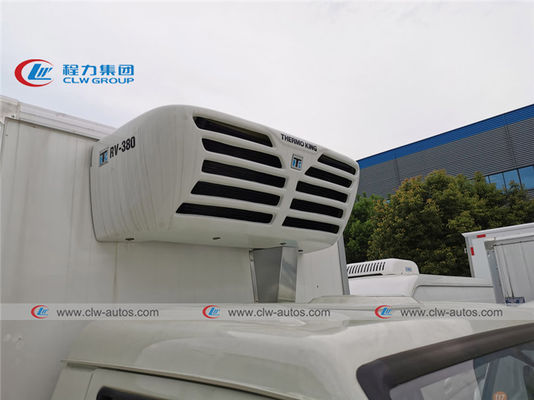

2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipmen
FAQ
Q1: What loading weight Freezer Delivery Truck 1ton I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of Freezer Delivery Truck 1ton? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
