Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

Büyük resim : Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5310TFCZ3

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	28520 usd/unit~125660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 60 gün içinde
Ödeme koşulları:	L/C, D/A, T/T, D/P, Western Union, MoneyGram
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Yayılma genişliği:	4000mm	Asfalt püskürtücü hacmi:	0,5~3,0L/m3
Püskürtme Ortamı:	Sıcak bitüm, sıcak modifiye bitüm, Emülsifiye asfalt	Asfalt hacminin boyutu:	8m3
Çakıl hacminin boyutu:	12m3	Brülör:	İtalya markası G20
Değişken Deplasman Piston Pompası:	A11V060EP2D/10R	Asfalt Pompası:	TG GP185-125/Belçika markası
Asfalt motoru:	L2F107W2P2 Çin markası veya XM05-90-8G-D40 İtalya	Jeneratör:	Honda 6kw benzinli jeneratör
Kontrol Sistemi:	Almanya'dan CLW-32-01	Arka monitör:	7", renkli ekran gerçek görüntü
Mikser Motoru:	Eaton/ABD markası	Kamyon markası:	Howo, Shacman, ISUZU, Dongfeng, FAW
Vurgulamak:	Howo asphalt tank , 8X4 asphalt tank , 371hp asphalt tank

Description--Synchronous chip sealer,also called synchronous gravel sealing truck refers to the simultaneous spraying of asphalt binder and sprinkling of aggregate,so that the most adequate contact between asphalt binder and aggregate can be achieved.
--Compared with ordinary crushed stone sealing layer truck or machine, Synchronous chip sealer shorts the time interval between spraying binder and sprinkling aggregate, so that the aggregate particles can be better implanted into the binder, so as to obtain more covering area.
--It is easier to ensure a stable proportion between the binder and the stone chip, improve the productivity, reduce the mechanical configuration and reduce the construction cost.
--Better anti-skid and anti-seepage water performance,effectively cure the hazards such as oil deficiency, grain dropping, slight mesh cracking, wheel rutting and subsidence.
--Type of bitumen:Hot bitumen, hot modified bitumen, diluted bitumen, emulsified bitumen, rubber modified bitumen(with viscosity Haake 190ºC,1500~2000Pa.s;spaying temperature 200~210 ºC,spraying width 4000mm)

Why do you choose CLW group Synchronous chip sealer?

★Accurate spraying amount, perfect realization of asphalt spraying three overlapping, good uniformity.
★ Intelligent control of sprinkling (sprinkling), real-time monitoring of sprinkling quantity and speed, closed-loop control
★ Full computer touch screen operation, equipped with video monitoring system, can observe the whole working process at any time;
★ Reliable performance and convenient operation
★Zero-start in-line spraying (strong spraying system and asphaltene in-line spraying system)
★ The control system adopts modular design (low failure rate, quick and easy maintenance).
★The most effective heating system and circulating heat preservation system ensure the unimpeded flow of pipes and nozzles without diesel cleaning
★ Equipped with a flexible asphalt hand spray system, it can spray asphalt on special parts of the road
★The nozzle and the feed door are fully pneumatic, and each feed door and the feed door are individually controlled by the computer
★ The width of the cloth can be adjusted at any time during the process of spreading
★With self-suction efflux function, it can add self-discharge asphalt to improve work efficiency
★Equipped with a system, in case of failure of the main control system, can manually sprinkle (scatter) cloth
★ Compact structure, beautiful appearance, flexible u-turn at high speed.

Specifications

Truck Specification
Cab		HW76 cab, with power steering,with A/C
Driving Type		8*4
Max Speed (km/h)		80
Overall dimension(mm)		1200025003850
GVW( kg)		31000
F/R overhang (mm)		1500/1945, 1920
Approach/Departure Angel		16/23
Tire		295/80R22.5
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Bridge	Front axle	HF7
	Rear axle	ST16
Engine	Model	WD615.69 / EURO II
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	9726
	Max output power/rotate speed (hp /rpm )	336
Braking system	Service Brake	Air over hydraulic dual circuit system
	Park Brake	Mechanical, internal expanding acting on transfer output shaf
Eletric system		24v
Upper-Body specification
Capacity		9m3 Asphalt tank + 14m3 gravel tank
		Emulsified bitumen, hot bitumen (rubber modified bitumen has to use imported configurations)
Asphalt pump		Model	QGB950
		Discharge(L/min)	950
Distribution width measurement(mm)		4000
Burner		G20 (from Italy)
Control method		Automatic controlled one by one (32 intelligent nozzle)
Heating Model		Thermal fuel automatic heating
Conducting system		Germany STW module, computer screen control in the cab

Reference picture

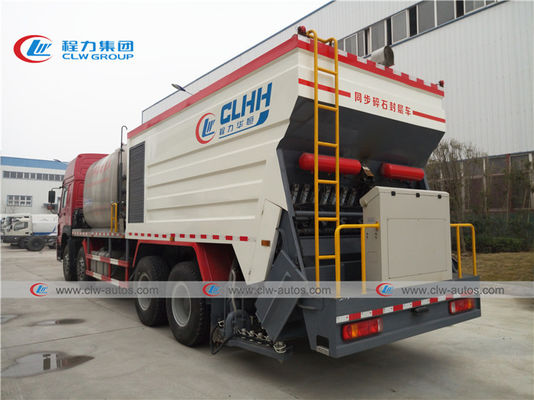

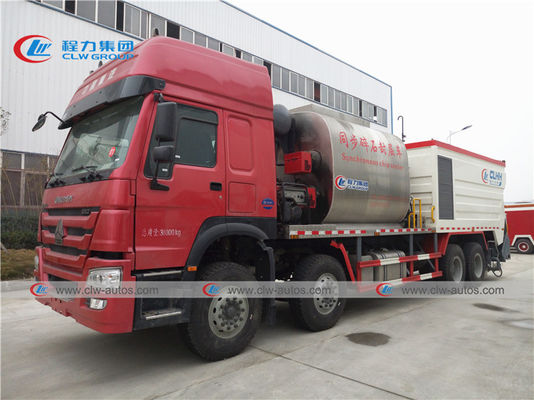

★Howo 8X4 Synchronous chip sealer

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 0

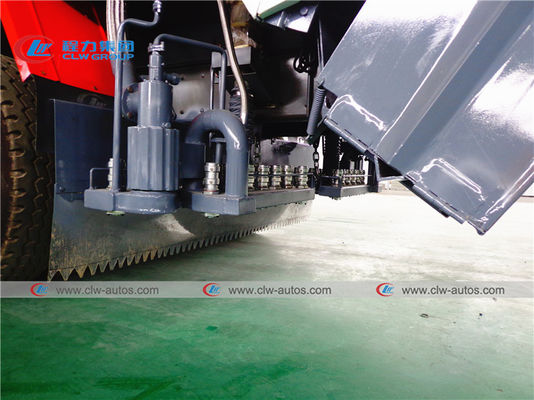

★Asphalt sprayer nozzles of Howo 8X4 Synchronous chip sealer

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 1

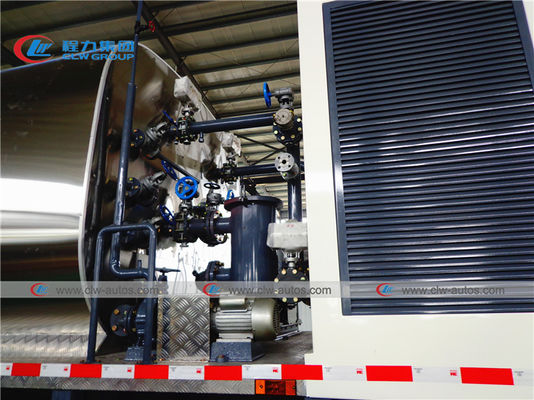

★Asphalt storage tank of Howo 8X4 Synchronous chip sealer

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 2

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 3

★English control screen of Howo 8X4 Synchronous chip sealer for overseas customer

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 4

★Working of howo Synchronous chip sealer

Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket 5

Key word: Synchronous Chip Sealer Truck,Synchronous Chip Sealer,howo Synchronous Chip Sealer,road pavement truck,aspahlt distribution truck,china Synchronous Chip Sealer,chip sealer truck,asphalt paver
