10T 20000L LPG Gas Storage Tank With Dispenser Machine

Büyük resim : 10T 20000L LPG Gas Storage Tank With Dispenser Machine

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, ASME
Model numarası:	CLW1020

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	200 Adet/Ay

İletişim

Detaylı ürün tanımı

Tanker hacmi:	20CBM/20000Litre	Tank malzemesi:	Q345R/SA516
Tasarım baskısı:	1,71MPa 1,77MPa 17,1bar, 17,7bar	Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG
Orta Yoğunluk:	420Kg/m³, 450Kg/m³, 460Kg/m³, 480Kg/m³, 500Kg/m³, 520Kg/m³, 540Kg/m.	Mekanik özellik testi:	Çekme, Mukavemet, Darbe testi
Kabuk ve Kafa Kalınlığı:	10mm, 12mm	Satış Sonrası Hizmet:	Yedek parça temini ve mühendis desteği
Renk ve logo:	Müşteri isteği olarak	Garanti:	1 yıl
Vurgulamak:	20000L LPG Gas Storage Tank , 10T LPG Gas Storage Tank , 20cbm LPG Skid Station

China 10mt 20,000liters lpg Storage Tanker Plant 10Tons 20cbm LPG Skid Station with Dispenser Machine and Filling Scale

Product Description
1. Storage medium: LPG, Liquid ammoina and Aether, etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.

Product Specification

Specification of 10tons 20000L lpg tank
Volume of Tank	20CBM(20,000liters) 10ton
Filling weight(Kg)	10000
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	1800 mm
Tank Dimensions (mm) (length x width x height)	8174X1840X2410mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

Reference Photos

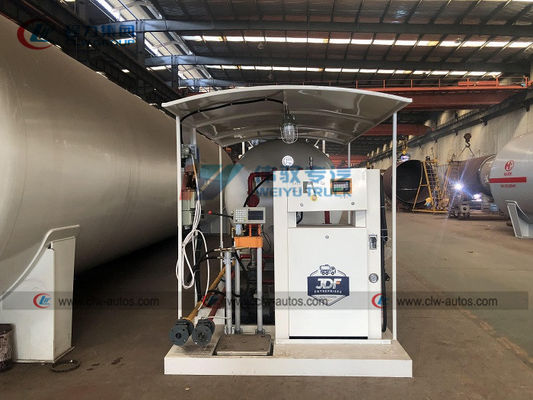

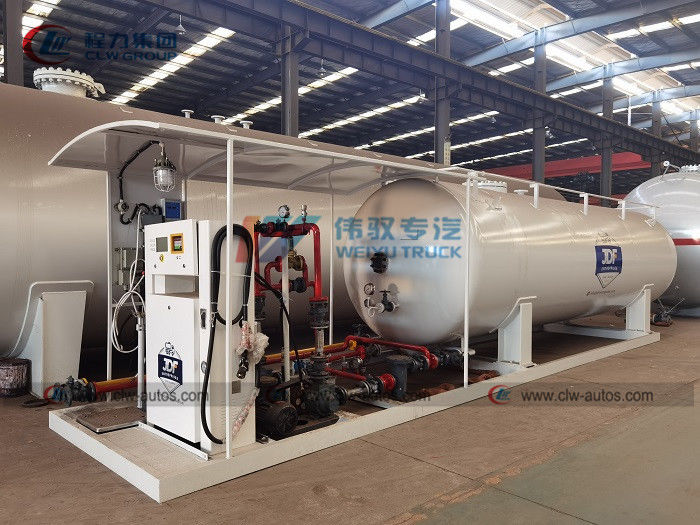

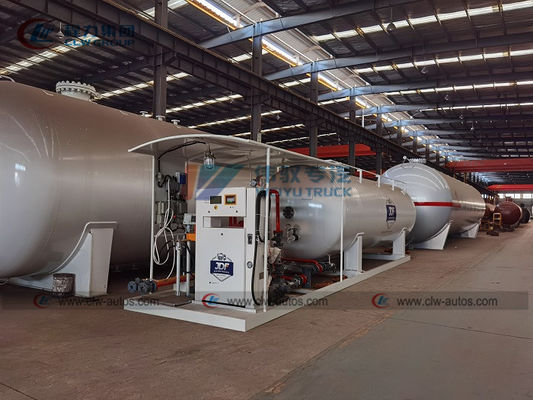

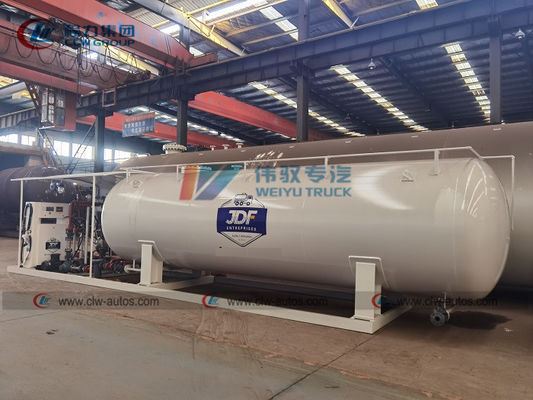

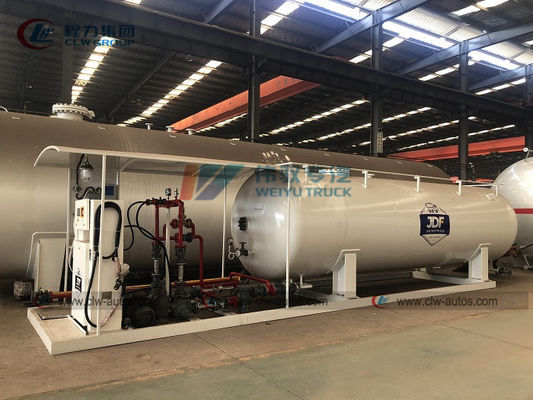

10T 20000L LPG Gas Storage Tank With Dispenser Machine 0

10T 20000L LPG Gas Storage Tank With Dispenser Machine 1

We supply package solution for lpg station building as follows

Production Process

10T 20000L LPG Gas Storage Tank With Dispenser Machine 4

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
