Dongfeng 8X4 360 Degree Rotator Wrecker Tow Truck

--Wrecker Tow Truck(also called road wrecker,wrecker truck,towing truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.

-- Wrecker Tow Truck can be divided into various types as follows,

1) According to the categories, the tow truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.

2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Wrecker Tow Truck;

3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons Wrecker Tow Truck;

4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc Wrecker Tow Truck.

--Powerful sinotruk dongfeng truck chassis;

--2 Nos of 20tons winches with diameter 28mm;

--360 ° rotation rotator towing truck;

--Italy hydro control control valve and balance valve;

--Wuxi oil hydraulic pneumatic equipment co ltd;

--One-step modeling compartment plate by germany 3P2A punching machine;

--Adopting American wrecker design and manufacturing technology.

--Key components using the finite element stress analysis (CAE technology)

--Adopting high quality high-strength steel for important components

--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.

--The key hydraulic lines seals imported from Germany.

--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

--Equipped with various fork lifts (including leaf spring forks).

--High and low fork combined with various fork lifts.

--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.

--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.

--Boom with 360 degree continuous rotation.

--Equipped with trailer towing disk, remote control is optional.

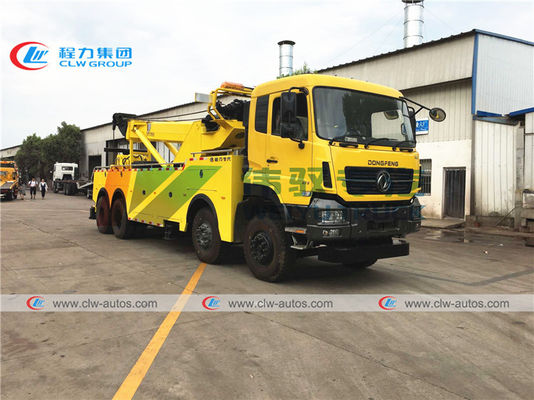

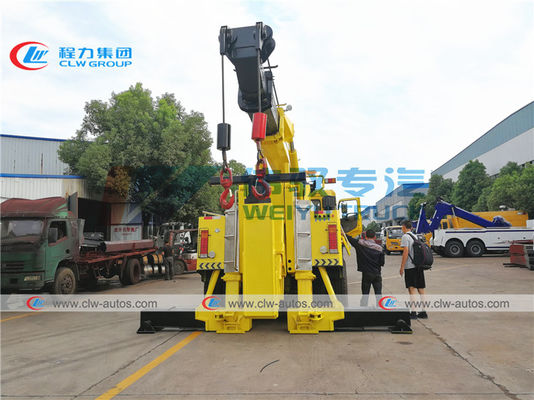

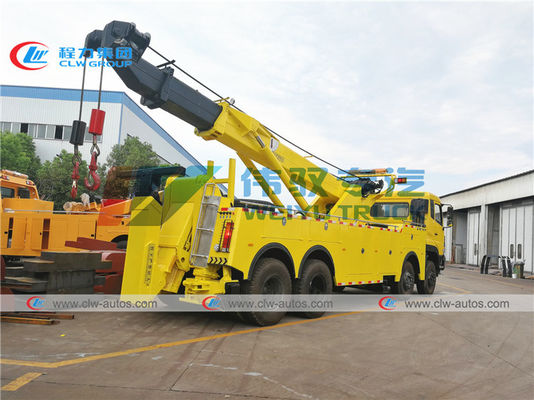

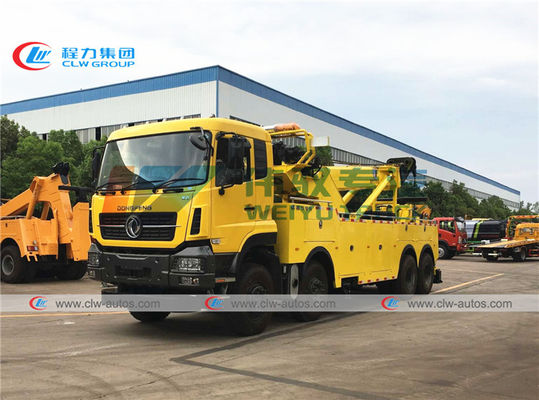

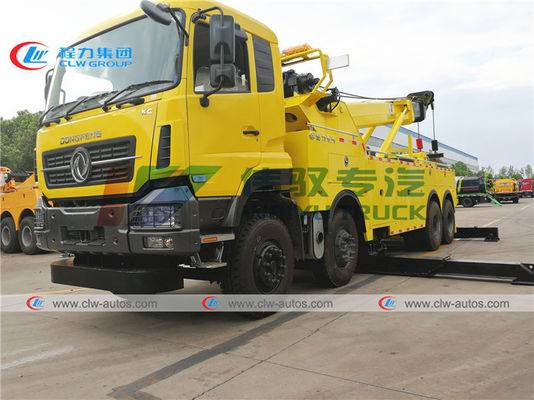

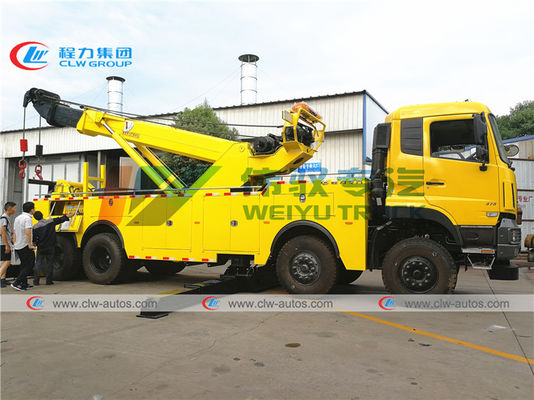

Reference picture



Specification

Main Technical Parameters
Product Name	Dongfeng 8X4 40Tons 360 Degree Rotator Tow Truck	Gross Vehicle Weight (kg)	31000
Curb Weight (kg)	19200	Cab Allowed Persons	2-3
Overall Dimension	11560x2500x3250	Lifting Capacity(Kg)	10000
Axle No.	4	Wheelbase (mm)	1350+4725+1350
Chassis Technical Parameters
Chassis Brand	Dongfeng
Tire No.	12 with 1 spare tire
App./ Dep. Angle(º)	23/18	Tire Spec.	10.00-20 11.00-20
Leaf Spring No.	10/12	Front Track (mm)	1375
Fuel Type	Diesel	Rear Track (mm)	1040
Drive Type	8X4	Brake System	Oil brake
Engine Technical Parameters
Engine Model	/	Emission Standard	Euro III
Displacement ( ml )	7146	Power (KW)	250KW
Engine Type	Water cooling, inter-cooling charged
Superstructure Parameters
Winch Capacity(kg)	2X20ton	Steel Rope Length(m)	40
Towing Fork	5 sets	Towing Fork Support	1 set
Lifting Boom	2 section, six hexagon	Supporting Boom	3 section
