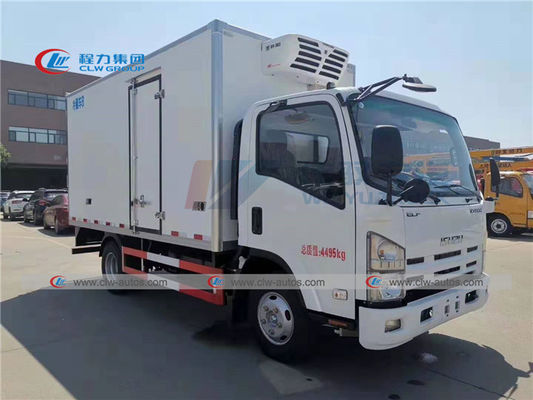

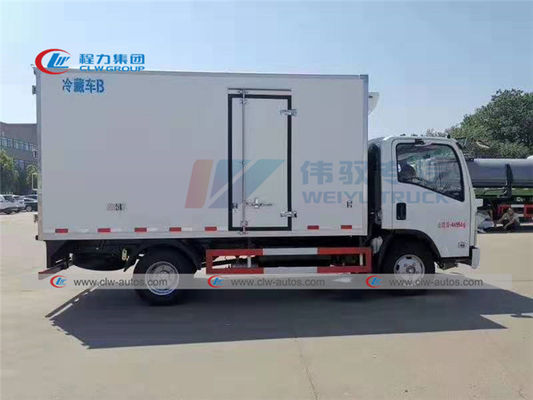

5 Ton ISUZU Refrigerated Box Truck For Transport Fish

Büyük resim : 5 Ton ISUZU Refrigerated Box Truck For Transport Fish

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC,SGS,BV
Model numarası:	CLW5084cb

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Depozito alındıktan 30-35 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	ISUZU,Dongfeng,HOWO,FOTON,JAC,JMC,SHACMAN.	Sıcaklık Aralığı:	-18 Dereceden -5 Dereceye
Logo:	Müşteri talebine göre	kamyonet malzemesi:	FİBER CAM
Yalıtım katmanı:	80mm Poliüretan Köpük	Kullanım:	Sebze, Et, Dondurma, Balık Dondurulmuş Taşımacılık
Kamyon Soğutma Ünitesi:	ABD markası Thermo King, Carrier veya Çin Markası	Teslimat süresi:	25 gün
Garanti:	1 yıl
Vurgulamak:	5 Ton ISUZU Refrigerated Box Truck , EURO IV ISUZU Refrigerated Box Truck , Fish Transport isuzu refrigerated van

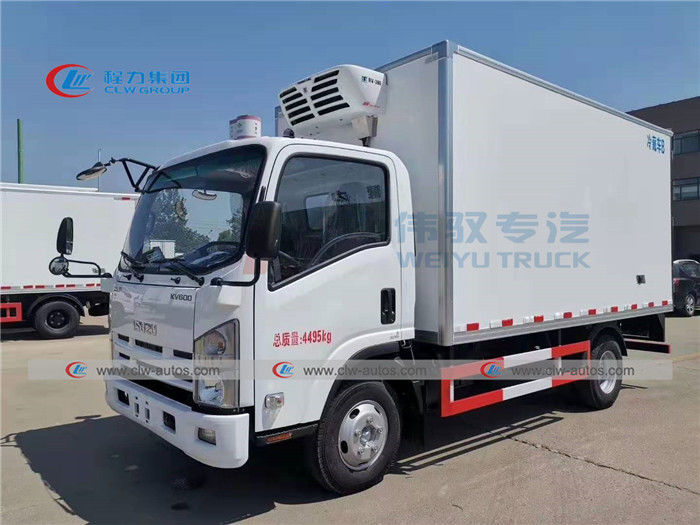

5Ton ISUZU Refrigerated Truck with Thermo King Van Box for Transport Meat & Fish

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Specification

General Technical Parameters
Overall Dimension	6000×2500×3300(mm)		Gross Vehicle Weight	9000(Kg)
Curb Weight	3900(Kg)		Loading Weight	5000(Kg)
Chassis Specification
Chassis parameters	Chassis Brand		ISUZU
	Cabin		Single, Left Hand Driving, with A/C
	Engine	Model	4KH1-TCG4O, 4 Cylinders
		Power	88KW/120HP
		Emission standard	EURO IV
		Displacement	2.999L
		Fuel type	Diesel
	Gearbox		MSB, 5 Forward & 1 Reverse Gear
	Front and Rear Axle load		2.5T/4.8T
	Wheel base		3360(mm)
	Overhang( Front/Rear)		1130/1505(mm)
	Angle(Approach/departure)		20/16(°)
	Brake System		Oil brake
	Steering Gear		Power Assistant
	Tire		650-16, 6 Pieces with 1 Spare Tire
	Maximum speed		105(km/h)
Superstructure
Van	Box size		4100×2300×2100(mm)
	Material		Fiberglass
	Insulating Layer		8cm Polyurethane Foam
	Brand		THERMOKING
Truck refrigeration unit	Model		KV300
	Applicable temperature (ºC)		-18~0
Remarks	Part Optional: Ventilation slot Hook External power supply Side door

5 Ton ISUZU Refrigerated Box Truck For Transport Fish 0

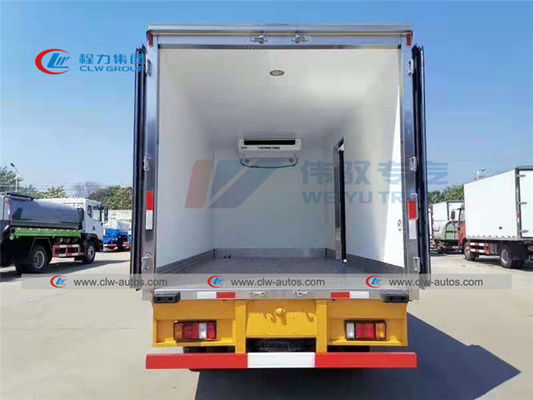

Details for refrigerated van truck

5 Ton ISUZU Refrigerated Box Truck For Transport Fish 1

Optional parts

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Product Show
