60 Ton 120CBM Q345R LPG Storage Tank For Gas Filling Plant

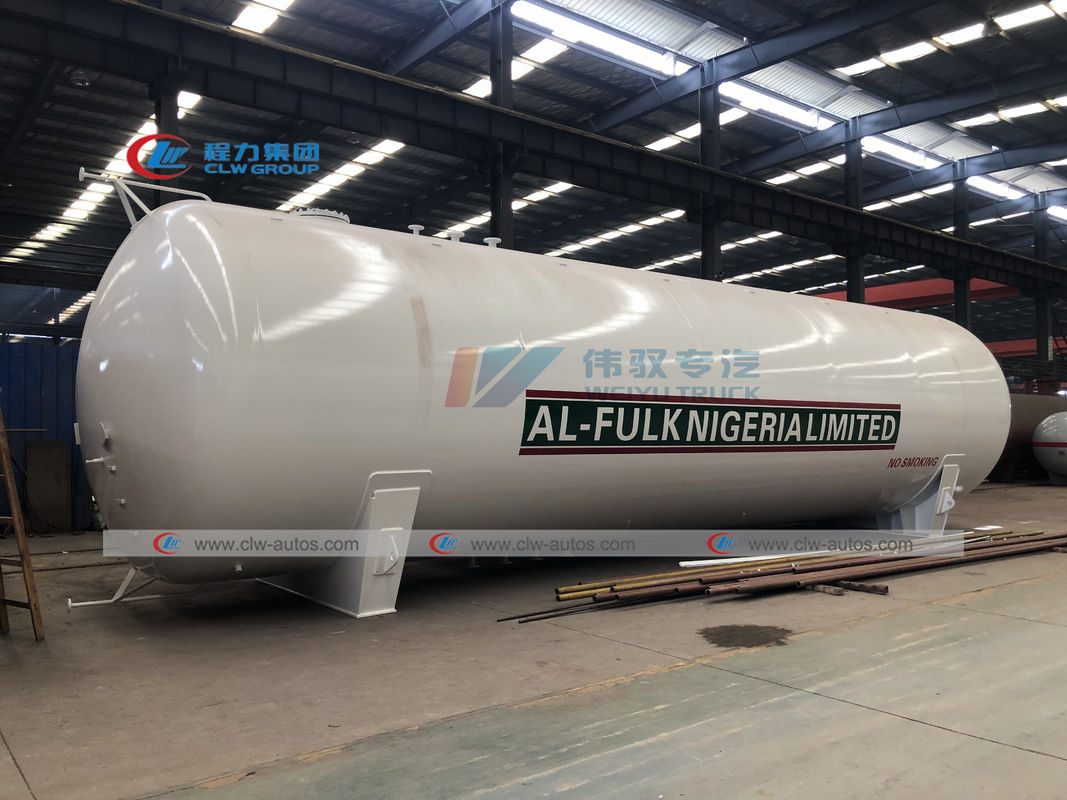

Büyük resim : 60 Ton 120CBM Q345R LPG Storage Tank For Gas Filling Plant

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CLW9520
Model numarası:	ASME,CCC,SGS,BV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Boyut Seçeneği:	10ton,20ton,30ton,40ton,50ton,60ton	Malzeme:	Karbon Çelik Q345R
Doldurma Aracı:	Propan, bütan	Tank Çapı:	DN3400mm
Tasarım Basıncı::	1.77mpa	Seviye göstergesi:	Rotogage veya Megnatik Tip
Tank Vanaları:	Kesme Vanası, İğne Vana, Emniyet Ventili, Geri Dönüş Vanası vb.	Logo:	istek başına
Vurgulamak:	Q345R LPG Storage Tank , 120CBM LPG Storage Tank , 60 ton lpg gas tank

Factory 60tons 120cbm LPG Storage Tank for Gas Filling Plant

Product Description

60tons Propane Gas Station Tanks 120m3 LPG Storage Tank

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

60tons Propane Gas Station Tanks 120m3 LPG Storage Tank

Parameter of 60mt 120cbm lpg storage tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		120cbm	Thickness of Shell		18mm
Tank Material		Q345R	Thickness of End plate		20mm
Overall Size		1382034364026mm	Tank Net Weight		24960kg
Tank Diameter		3400mm	Loading Capacity		47880kg
Design Pressure		1.77Mpa	Gas Density		510~590kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20ºC~50ºC	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			2		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-80	Safety Valve DN80			2		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40ºC~60ºC

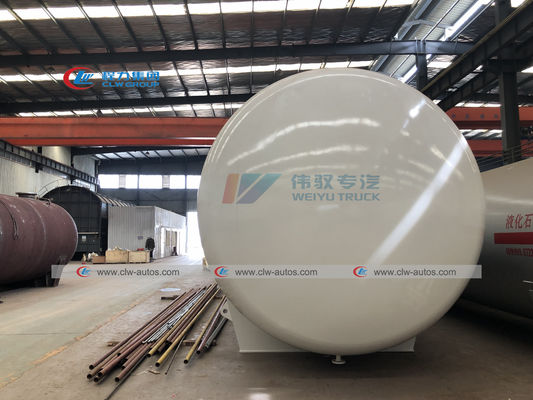

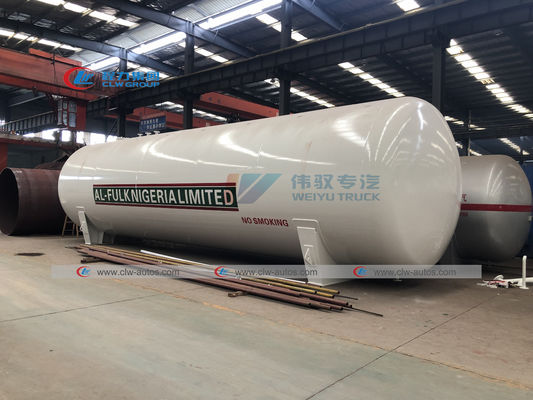

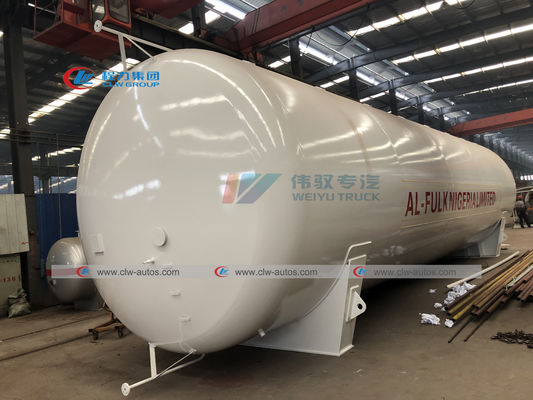

60 Ton 120CBM Q345R LPG Storage Tank For Gas Filling Plant 0

We can offer whole set accessories and equipments of building a completed LPG plant as follows,

LPG PUMP AND MOTOR
LPG COMPRESSOR
AIR COMPRESSOR
VOLUME/MASS FLOW METER
LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
GAS LEAKAGE DETECTOR
LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
PIPELINES
GASKETS
BOLTS AND NUTS

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
