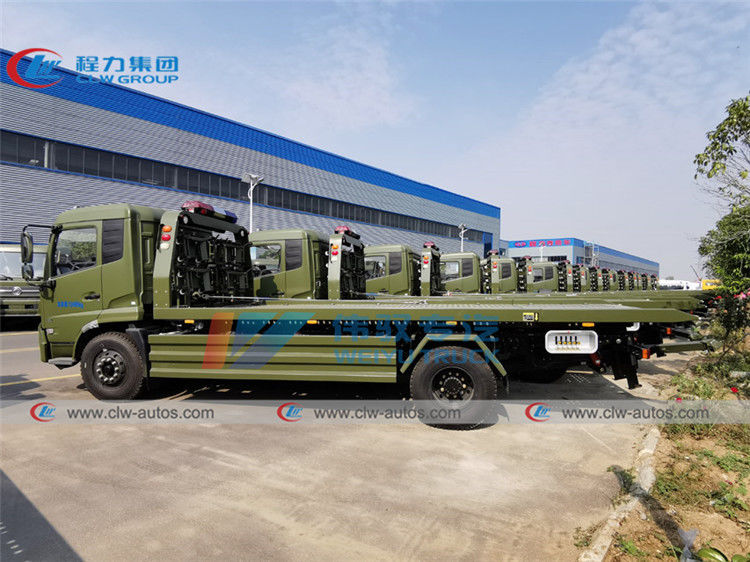

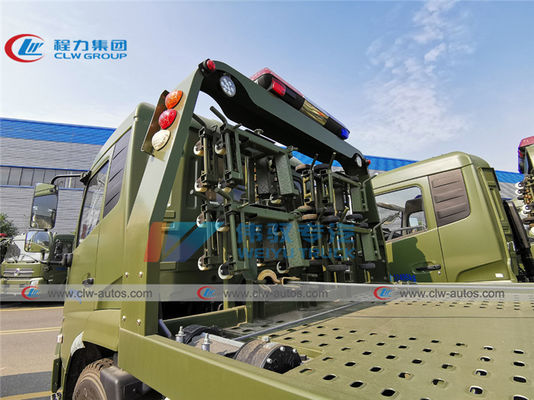

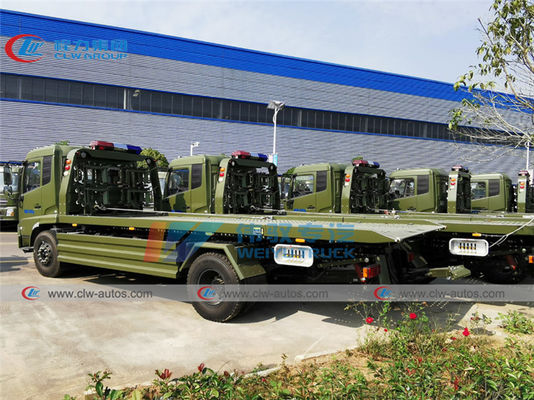

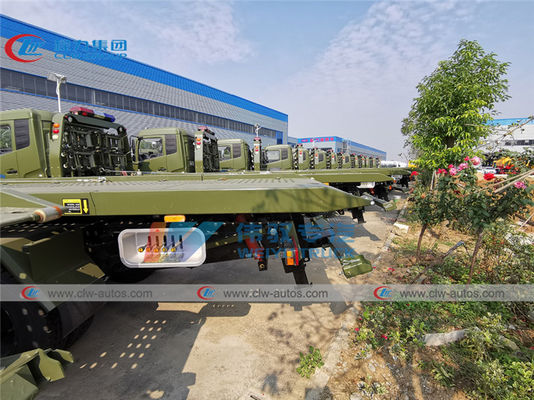

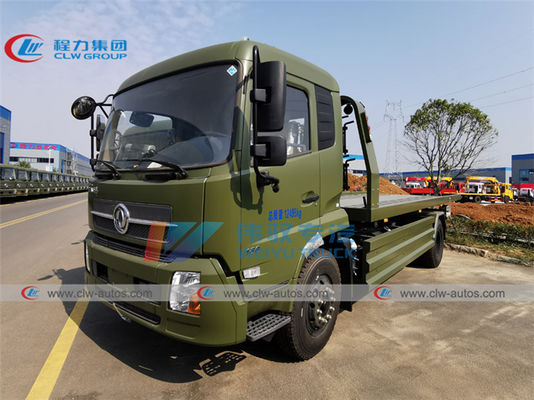

Military 8 Ton Dongfeng Kingrun Flatbed Wrecker Tow Truck

Büyük resim : Military 8 Ton Dongfeng Kingrun Flatbed Wrecker Tow Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC SGS BV
Model numarası:	CLW5112

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Ön ödemeye karşı 30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500 Adet

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng Kingrun	Yükleme kapasitesi:	8Ton ~10Ton
Renk:	Askeri Yeşil Renk	Direksiyon:	Sağdan direksiyonlu veya soldan direksiyonlu
MOTOR:	Cummins170hp,180hp,190hp	Tamirci Tipi:	Düz Yataklı Eğimli Tepsi
Çekme kapasitesi:	10ton-20Ton	Düz yataklı uzunluk:	7200mm
Düz Yatak Genişliği:	2300mm	Düz Yatak Kalınlığı:	6 mm
Anahtar Kapasitesi:	8ton	Çelik tel Uzunluğu:	25 metre
Vurgulamak:	Flatbed Wrecker Tow Truck , Dongfeng Kingrun Wrecker Tow Truck , military 8 ton flatbed tow truck

Military Army Use 8Ton Dongfeng Kingrun Flatbed Wrecker Tow Truck

Product Description

1) Purpose of 8ton flatbed tow truck: used for towing broken cars,vehicle on road.

2) Optional Truck Brand:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of 8ton flatbed tow truc:

Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
imported sealing element;
strengthed checked plate

4) Flatbed Size: 7200mm length, 2300mm in Width

Specification of dongfeng 6ton flatbed tow truc

Item No.	Parameters
Overall Dimension	9440x2480x3700 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	12495 kg
Curb Weight	10000 kg
Loading Weight	2495 Kg
Wheel Base	5000mm
Front/rear Tread	1880/1860 mm
Approach/Departure Angle	24/12 degree
Front Axle	2840 kg
Rear Axle	5440 kg
Engine	Cummins
Engine horsepower	180 HP EURO III
Displacement	5900mL (Diesel)
Max Driving Speed	90 km/h
Tire	9.00R20( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	5000kg
Loading Plate Dimensions	6450~7200mm*2300mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	6000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

Structure drawing

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wheel-lift breakdown truck I can order from your company?

A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied wheel-lift breakdown truck to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
