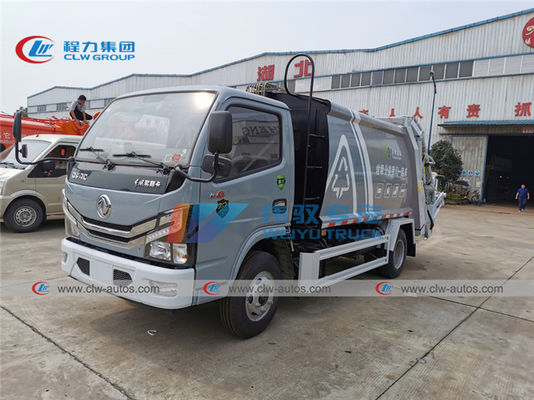

Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck

Büyük resim : Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO
Model numarası:	CLW5780cw

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Tekerlek tabanı:	3300mm	marka:	Dongfeng Duolika
MOTOR:	Dongfeng Cummins veya Chaochai	Vites kutusu:	WLT 5 İleri ve 1 Geri
Yükleme yolları:	Arkadan Yükleme	Tip:	Çöp Sıkıştırma
boşaltma yolu:	Hidrolik Devrilme	Kontrol:	Hidrolik kontrol
Kontrol konumu:	Kamyon arkası ve kabin arkası	Sıkıştırma Oranı:	0,6ton/m3 ~ 0,8ton/m3
Geri Dönüşüm Süresi:	13~17 saniye	Kaldırma Kutusu Tipi:	Çelik Kutu, Plastik Kutu
Kanalizasyon tankı:	Evet	İç Boyama:	Pas önleyici boya
Dış boyama:	Logolu Renkli Boyama
Vurgulamak:	Dongfeng Home Waste Compactor Truck , EURO 6 Waste Compactor Truck , 3t rear loader rubbish compactor truck

EURO 6 Dongfeng 3Ton~5Ton Home Waste Garbage Compactor Truck Rear Loader Type

Product Description

Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
Easy Full Automatic Operation: computer control system for loading and unloading operations.

Dongfeng 5T compression garbage truck ihydraulic mechanism system:

composed of chamber,
loading mechanism,
compression mechanism,
unloading mechanism,
oil pump, oil cylinder,
control valve, etc.

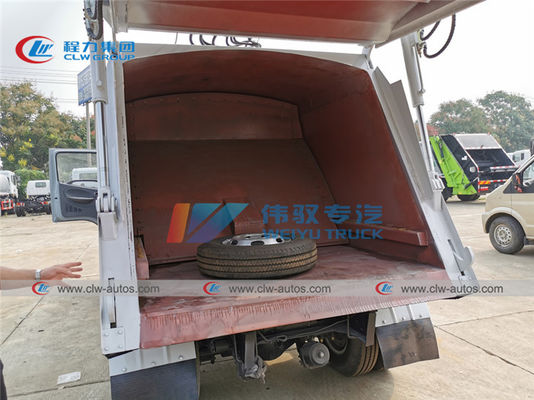

The chamber body is made of high-quality carbon steel,

thickness (unit: mm): side 4, bottom 4, chamber
volume: 8m 3.

The loading mechanism is composed of bracket, connecting rod mechanism, cam, hook, etc.

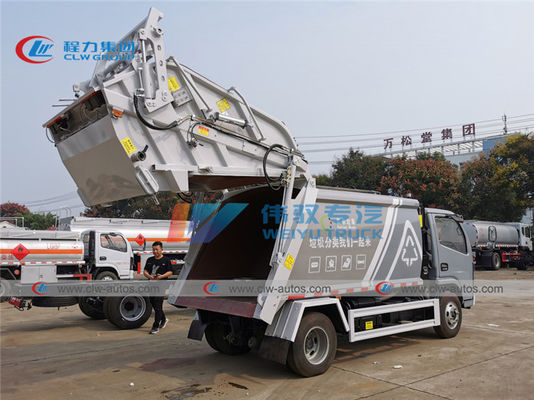

Under the action of the oil cylinder, the garbage in the garbage can is automatically turned over and poured into the hopper.

Specifications of 5-7 CBM Garbage Compactor Truck

Dongfeng 6CBM Garbage Compactor Truck
Overall Dimension	6220×2050×2570 mm	Gross Vehicle Weight		7360 kg
Curb Weight	5400 kg	Loading Weight		1830 kg
Wheel Base	3308 mm	Front / Rear Axle		5000 kg / 10000kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine
Engine horsepower	120HP, EURO 6
Max Driving Speed	90 km/h
Gear Box	5 Forward Gear, 1 Reverse Gear,
Tire	7.00R16 (6 pieces with one spare)
Garbage Bin	Capacity		6CBM
	Material		4mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4

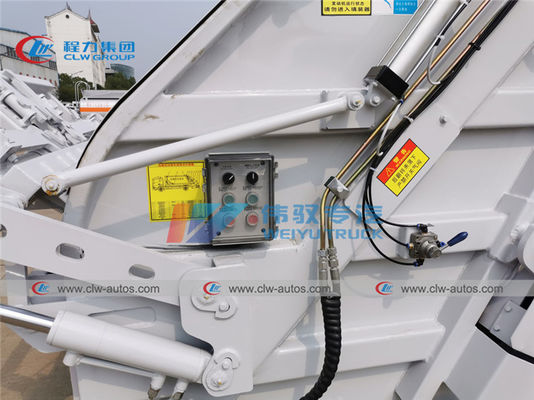

Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time＜14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

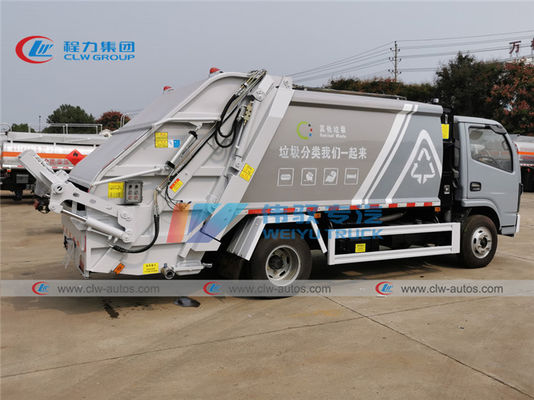

Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 0

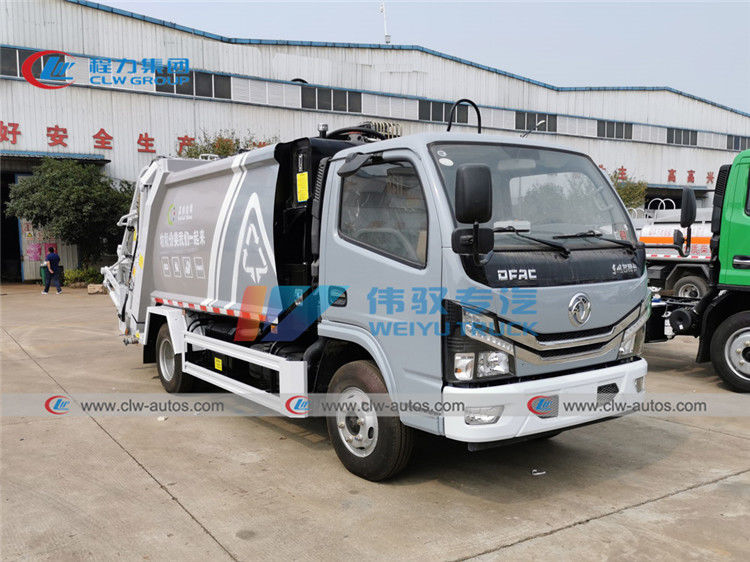

Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 1

Diagram

FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
