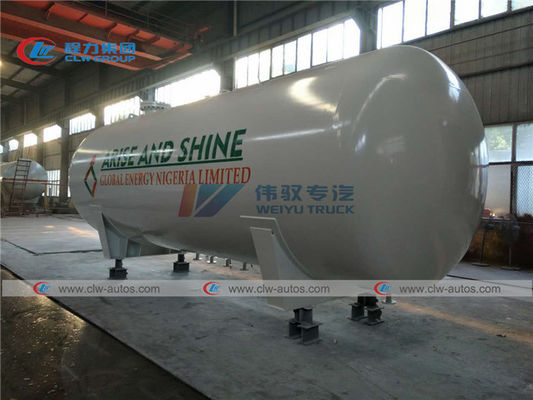

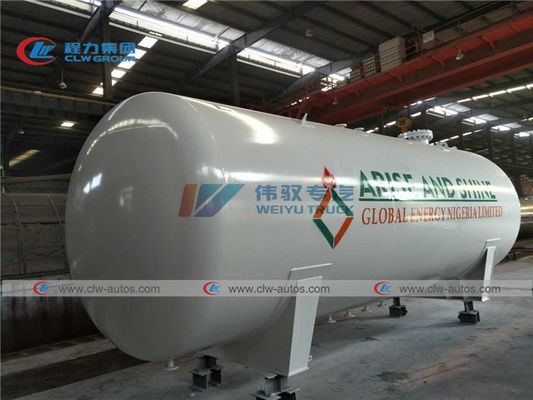

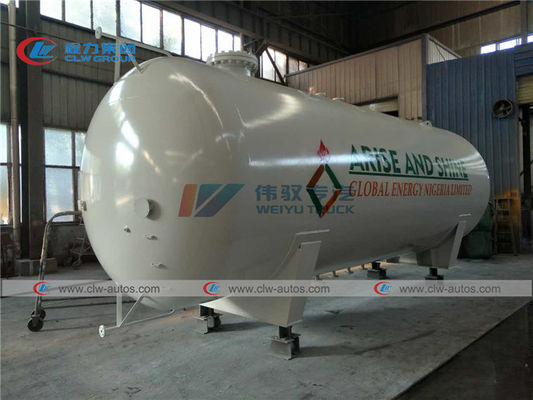

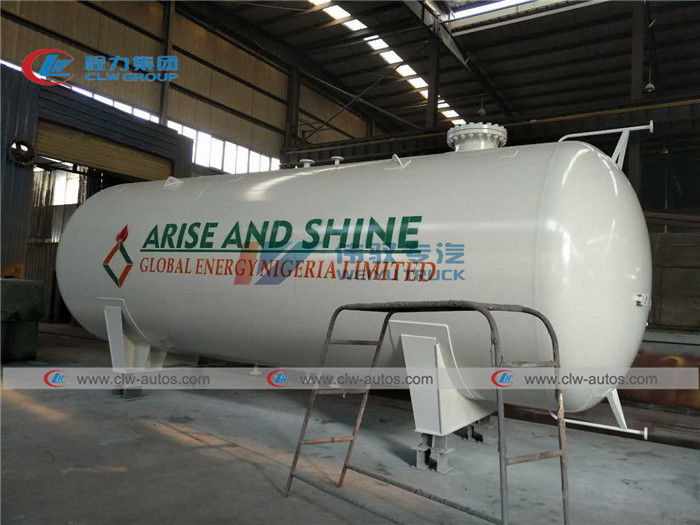

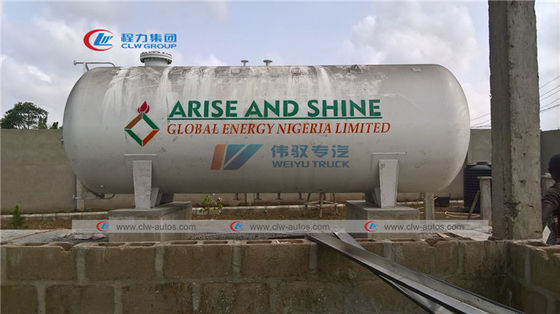

20tons LPG Storage Tank Propane Gas Tank for Gas Plant Station in Nigeria
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6.Maintenance-free operation with simple calibration and proof testing.
7.20 years guarantee against manufacturing defects.
| 40 CBM LPG TANK DIMENSIONS |
| Volume of Tank |
40CBM |
| Filling Weight |
15960kg |
| Tank Weight |
9380g |
| Thickness of Shell (mm) |
12 mm |
| Thickness of End plate (mm) |
14 mm |
| Tank Diameter (mm) |
2400 mm |
| External Dimensions (mm) (length x width x height) |
9270 X2428X3018 mm |
| Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
| Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| Design Pressure |
1.77 MPa / 17.7Bar |
| Corrosion Allowance |
1 mm |
| Medium Density |
420kg~590kg kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item |
Specification |
Quantity |
| Discharge Pipe |
DN80 |
1 |
| Inflow Pipe |
DN80 |
1 |
| Gas phase balance pipes |
DN50 |
2 |
| Drain Hole |
DN50 |
1 |
| Manhole |
DN450 |
1 |
| Air-out Pipe |
DN50 |
1 |
| Safety Valve Pipe |
DN80 |
2 |
Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
Gas filling station design
Filling house for cylinders
Key words: 10tons LPG storage tank, gas plant station, 10tons LPG gas tank, 10tons propane gas tank
